Question

Need C++ coding for this lab exercise given below :)

4. Lab Exercise — Templates

Exercise 1 - Function Templating

For this part of the lab make a template out of the myMax function and test it on different data types.

Copy maxTemplate.cpp to your Hercules account space. Do that by:

Entering the command:cp /net/data/ftp/pub/class/115/ftp/cpp/Templates/maxTemplate.cpp maxTemplate.cpp

Compile and run the program to see how it works.

Make a template out of myMax. Don't forget the return type.

Modify the prototype appropriately.

Test your myMax template on int, double, and string types.

When you are done your output should resemble this:The max of 3 and 5 is 5 The max of 5.6 and 7.3 is 7.3 The max of donkey and apple is donkey

Exercise 2 - Class Templating

For this part of the lab you will make a template out of the Matrix class, test it on different data types, and add a generic sort member function.

Transfer matrix.cpp, matrix.h, tempMain.cpp, andMakefile your lab directory. Do that by changing into your directory and:

Entering these commands:cp /net/data/ftp/pub/class/115/ftp/cpp/Templates/matrix.cpp matrix.cpp cp /net/data/ftp/pub/class/115/ftp/cpp/Templates/matrix.h matrix.h cp /net/data/ftp/pub/class/115/ftp/cpp/Templates/tempMain.cpp tempMain.cpp cp /net/data/ftp/pub/class/115/ftp/cpp/Templates/Makefile Makefile

Part 1: Setup

Add the template types to matrix.cpp

Template the definition of the Matrix class in matrix.h.

Template the member functions in matrix.cpp.
Hint: You may find Emacs query-replace M-%, cut line C-a C-k C-k and paste C-y helpful.

The Makefile is set up for you. Use it to compile and run the program to make sure everything is working.

Part 2: Extend

Add two more 2D arrays to tempMain.cpp that hold a new data type.

Create an instances of Matrix that can hold that data type and use the templated demoTemplate function to show that your templated class works.

Test your changes.

Your completed exercise should resemble this:

Demonstrating with string matrix: Matrix set to first array Congra y ar alm don La Matrix incremented by second array Congratulations you are almost done the Lab! Demonstrating with int matrix: Matrix set to first array 1 2 3 4 5 6 Matrix incremented by second array 7 7 7 7 7 7 Demonstrating with float matrix: Matrix set to first array 1.6 2.5 3.4 4.3 5.2 6.1 Matrix incremented by second array 7.7 7.7 7.7 7.7 7.7 7.7

maxTemplate.cpp

/**************************************************** * * FileName: /net/data/ftp/pub/class/170/ftp/cpp/maxTemplate.cpp * Purpose: Demonstrate the use of function templates * ********************************************************/ #include <iostream> #include <string>
using namespace std;
//Make a template out of the prototype int myMax(int one, int two);
int main() {
int i_one = 3, i_two = 5;
cout << "The max of " << i_one << " and " << i_two << " is " << myMax(i_one, i_two) << endl; //Test your template on float and string types
return 0;
}
//Make a template out of this function. Don't forget the return type. int myMax(int one, int two) { int biggest; if (one < two) { biggest = two; } else { biggest = one; } return biggest;
}

matrix.cpp
#include "matrix.h"
#include <iostream>
using namespace std;
Matrix::Matrix() {
rows = MAXROWS; cols = MAXCOLS;
for (int i=0; i< rows; i++) {
for(int j=0; j< cols; j++) {
doubleArray[i][j] = '\0'; } } } void Matrix::printMatrix()
{
for (int i=0; i< rows; i++)
{ for(int j=0; j< cols; j++) {
cout << doubleArray[i][j] << " "; }
cout << endl;
}
}
void Matrix::setMatrix(int otherArray[][MAXCOLS]) {
for (int i=0; i< rows; i++)
{ for(int j=0; j< cols; j++) {
doubleArray[i][j] = otherArray[i][j];
}
}
}
void Matrix::addMatrix(int otherArray[][MAXCOLS])
{
for (int i=0; i< rows; i++)
{
for(int j=0; j< cols; j++)
{
doubleArray[i][j] += otherArray[i][j];
}
}
} void Matrix::addMatrix(Matrix otherMatrix) { addMatrix(otherMatrix.doubleArray);
}

matrix.h

const int MAXROWS=2;
const int MAXCOLS=3;
class Matrix
{
private: int doubleArray[MAXROWS][MAXCOLS];
int rows;
int cols;
public: //Constructor Matrix();
//Set rows to MAXROWS and cols to MAXCOLS
//Initialize all the values of doubleArray to zero
//Getter Functions void printMatrix();
//Setter Functions void setMatrix(int [][MAXCOLS]);
//set the doubleArray to what is sent void addMatrix(int [][MAXCOLS]);
//add an array to doubleArray void addMatrix(Matrix otherMatrix);
//No destructor needed
};

tempMain.cpp

#include <iostream>
#include <string>
#include "matrix.h"
using namespace std;
template <typename T1> void demoTemplate(Matrix<T1>& M, T1 array1[][MAXCOLS], T1 array2[][MAXCOLS]);
int main()
{
string str1[MAXROWS][MAXCOLS] = { {"Congra", "y", "ar"}, {"alm", "don", "La"} }; string str2[MAXROWS][MAXCOLS] = { {"tulations", "ou", "e"}, {"ost", "e the", "b!"} }; int num1[MAXROWS][MAXCOLS] = { {1,2,3}, {4,5,6} };
int num2[MAXROWS][MAXCOLS] = { {6,5,4}, {3,2,1} };
Matrix<string> stringMatrix;
Matrix<int> intMatrix;
cout << "\nDemonstrating with string matrix:" << endl; demoTemplate(stringMatrix, str1, str2); cout << "\nDemonstrating with int matrix:" << endl;
demoTemplate(intMatrix, num1, num2); cout << "\n" << endl;
return 0;
}
template <typename T1> void demoTemplate(Matrix<T1>& M, T1 array1[][MAXCOLS], T1 array2[][MAXCOLS]) { M.setMatrix(array1);
cout << "\nMatrix set to first array" << endl;
M.printMatrix();
M.addMatrix(array2);
cout << "\nMatrix incremented by second array" << endl;
M.printMatrix();
}

Makefile

COMPILER = g++ # or CC if you prefer it on Hercules
DRIVER = tempMain
FILE = matrix
$(DRIVER) : $(FILE).o $(DRIVER).o #the first character on the next line is a tab
$(COMPILER) -o $(DRIVER) $(FILE).o
$(DRIVER).o
$(DRIVER).o : $(DRIVER).cpp $(FILE).cpp $(FILE).h
$(COMPILER) -c $(DRIVER).cpp -o
$(DRIVER).o
$(FILE).o : $(FILE).cpp $(FILE).h $(COMPILER) -c $(FILE).cpp -o
$(FILE).o
clean: @ /bin/rm -f *.o

template types

Overview:

If you try to define templates in multiple files, it is likely that you will come across a linker error in Visual C++. The error might be something like the following:error LNK2019: unresolved external symbol "public: __thiscall my_class ::my_class(int,int)" (??0?$my_class@H@@QAE@HH@Z)

To get rid of this error, you need to add the following at the end of .cpp file, so at the end of the swapper.cpp, add the following:template class my_class <int>; template class my_class <char>; template class my_class <double>;

Complete comments which are needed in the lab exercise for the correct output.

Answer 1

Code Implemented in C++

Note: Comments are written for code explanation

Filename: maxTemplate.cpp

/****************************************************
*
* FileName: /net/data/ftp/pub/class/170/ftp/cpp/maxTemplate.cpp
* Purpose: Demonstrate the use of function templates
*
********************************************************/
#include <iostream>
#include <string>
using namespace std;

template <class T>//Make a template out of the prototype
T myMax(T one, T two);

int main()
{
int i_one = 3, i_two = 5;
double d_one = 5.6, d_two = 7.3;
string s_one = "donkey", s_two = "apple";

cout << "The max of " << i_one << " and " << i_two << " is "
   << myMax(i_one, i_two) << endl;

//Test your template on float and string types
cout << "The max of " << d_one << " and " << d_two << " is "
   << myMax(d_one, d_two) << endl;

cout << "The max of " << s_one << " and " << s_two << " is "
   << myMax(s_one, s_two) << endl;

return 0;
}

template <class T>//Make a template out of this function. Don't forget the return type.
T myMax(T one, T two)
{
T bigger;
if (one < two)
{
bigger = two;
}
else
{
bigger = one;
}
return bigger;
}

Filename: matrix.cpp

#ifndef __MATRIX_CPP__
#define __MATRIX_CPP__
#include "matrix.h"
#include <iostream>
using namespace std;
template <class M_type>
Matrix<M_type>::Matrix()
{
rows = MAXROWS;
cols = MAXCOLS;
for (int i=0; i< rows; i++)
{
for(int j=0; j< cols; j++)
{
   doubleArray[i][j] = '\0';
}
}
}
template <class M_type>
void Matrix<M_type>::printMatrix()
{
for (int i=0; i< rows; i++)
{
for(int j=0; j< cols; j++)
{
   cout << doubleArray[i][j] << " ";
}
cout << endl;
}
}
template <class M_type>
void Matrix<M_type>::setMatrix(M_type otherArray[][MAXCOLS])
{
for (int i=0; i< rows; i++)
{
for(int j=0; j< cols; j++)
{
   doubleArray[i][j] = otherArray[i][j];
}
}
}
template <class M_type>
void Matrix<M_type>::addMatrix(M_type otherArray[][MAXCOLS])
{
for (int i=0; i< rows; i++)
{
for(int j=0; j< cols; j++)
{
   doubleArray[i][j] += otherArray[i][j];
}
}
}
template <class M_type>
void Matrix<M_type>::addMatrix(Matrix otherMatrix)
{
addMatrix(otherMatrix.doubleArray);
}
#endif

Filename: matrix.h

#ifndef __MATRIX_H__
#define __MATRIX_H__

const int MAXROWS=2;
const int MAXCOLS=3;

template <class M_type>
class Matrix
{
private:
M_type doubleArray[MAXROWS][MAXCOLS];
int rows;
int cols;

public:
//Constructor
Matrix(); //Set rows to MAXROWS and cols to MAXCOLS
   //Initialize all the values of doubleArray to zero

//Getter Functions
void printMatrix();

//Setter Functions
void setMatrix(M_type [][MAXCOLS]); //set the doubleArray to what is sent
void addMatrix(M_type [][MAXCOLS]); //add an array to doubleArray
void addMatrix(Matrix otherMatrix);

//No destructor needed
};

#endif
#include "matrix.cpp"

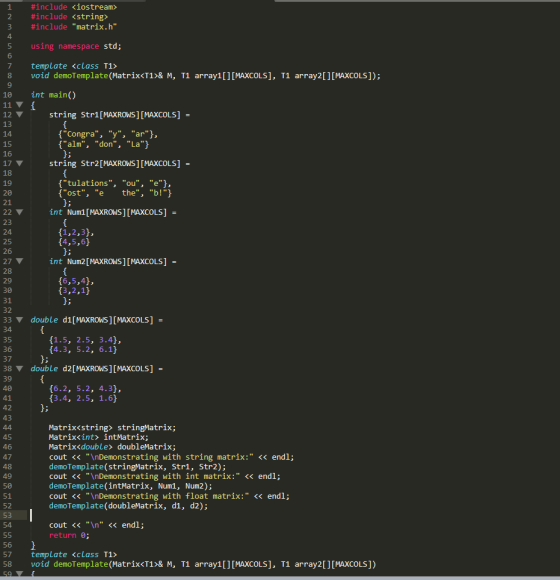

Filename: tempMain.cpp

#include <iostream>
#include <string>
#include "matrix.h"

using namespace std;

template <class T1>
void demoTemplate(Matrix<T1>& M, T1 array1[][MAXCOLS], T1 array2[][MAXCOLS]);

int main()
{
string Str1[MAXROWS][MAXCOLS] =
{
   {"Congra", "y", "ar"},
   {"alm", "don", "La"}
};
string Str2[MAXROWS][MAXCOLS] =
{
   {"tulations", "ou", "e"},
   {"ost", "e the", "b!"}
};
int Num1[MAXROWS][MAXCOLS] =
{
   {1,2,3},
   {4,5,6}
};
int Num2[MAXROWS][MAXCOLS] =
{
   {6,5,4},
   {3,2,1}
};

double d1[MAXROWS][MAXCOLS] =
{
{1.5, 2.5, 3.4},
{4.3, 5.2, 6.1}
};
double d2[MAXROWS][MAXCOLS] =
{
{6.2, 5.2, 4.3},
{3.4, 2.5, 1.6}
};

Matrix<string> stringMatrix;
Matrix<int> intMatrix;
Matrix<double> doubleMatrix;
cout << "\nDemonstrating with string matrix:" << endl;
demoTemplate(stringMatrix, Str1, Str2);
cout << "\nDemonstrating with int matrix:" << endl;
demoTemplate(intMatrix, Num1, Num2);
cout << "\nDemonstrating with float matrix:" << endl;
demoTemplate(doubleMatrix, d1, d2);

cout << "\n" << endl;
return 0;
}
template <class T1>
void demoTemplate(Matrix<T1>& M, T1 array1[][MAXCOLS], T1 array2[][MAXCOLS])
{
M.setMatrix(array1);
cout << "\nMatrix set to first array" << endl;
M.printMatrix();
M.addMatrix(array2);
cout << "\nMatrix incremented by second array" << endl;
M.printMatrix();
}

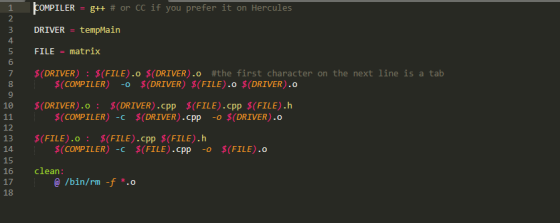

Filename: Makefile

COMPILER = g++ # or CC if you prefer it on Hercules

DRIVER = tempMain

FILE = matrix

$(DRIVER) : $(FILE).o $(DRIVER).o #the first character on the next line is a tab
   $(COMPILER) -o $(DRIVER) $(FILE).o $(DRIVER).o

$(DRIVER).o : $(DRIVER).cpp $(FILE).cpp $(FILE).h
   $(COMPILER) -c $(DRIVER).cpp -o $(DRIVER).o

$(FILE).o : $(FILE).cpp $(FILE).h
   $(COMPILER) -c $(FILE).cpp -o $(FILE).o

clean:
   @ /bin/rm -f *.o

Working code output screenshot:
