Calculate the pi-network in 1,8-diphenyl-1,3,5,7-octatetraene, C20H18, using the particle in a box model. To calculate the...
Calculate the pi-network in 1,8-diphenyl-1,3,5,7-octatetraene, C20H18, using the particle in a box model. To calculate the box length, assume that the molecule is linear and use the values 135 and 154 pm for C=C and C-C bonds. The electrons in sigma bonds are localized, while eight electrons in pi bonds are delocalized in a box between the phenyl groups (i.e., phenyl groups are not included in the pi-network).

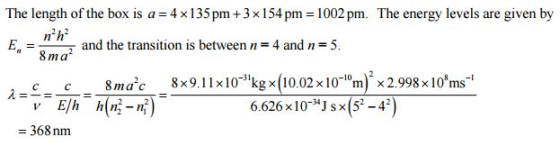

A) What is the wavelength of light required to induce a transition from the ground state to the first excited state?
B) The observed absorption peak is at 390 nm. Does this suggest if the actual box length of the delocalized pi electrons is shorter or longer than the calculated box length by assuming the molecule is linear? Concisely explain your answer
Homework Answers
Add Answer to:
Calculate the pi-network in 1,8-diphenyl-1,3,5,7-octatetraene,
C20H18, using the particle in a box model. To
calculate the...
Calculate the energy levels of the π network in hexatriene. C6H8, using the particle in the...
Calculate the energy levels of the π network in hexatriene. C6H8, using the particle in the box model. To calculate the box length, assume that the molecule is linear and use the values 135 and 154 pm for C-C and C-C bonds. What is the wavelength of light required to induce a transition from the ground state to the first excited state? How does this compare with the experimentally observed value of 240nm? What does the comparison made suggest to...
2) If we assume the π-network in decatetraene (C10H12) to serve as a one dimensional box...
2) If we assume the π-network in decatetraene (C10H12) to serve as a one dimensional box containing eight π-electrons that can each be assumed to behave according to the particle in a box model where each level is assumed to be doubly degenerate, and if we further assume that the molecule is linear and use the values 135 and 154 pm for the C=C and C- C bonds respectively, what wavelength of light is required to induce a transition from...
Huckel/PIB a) Calculate the ground-state energy levels of the π-network in hexatriene, model, and for each...
Huckel/PIB
a) Calculate the ground-state energy levels of the π-network in hexatriene, model, and for each of them indicate the associated degeneracy. To ca molecule is linear and use the values 135 and 154 pm for C-C and C-C bonds CoHs, using the particle in the box lculate the box length, assume that the to induce a transition from the ground state to the first excited e can be obtained using Huckel theory. Knowing b) What is the wavelength of...
Part A Calculate the box length, using the particle in the box model for hexatriene,...
Part A Calculate the box length, using the particle in the box model for hexatriene, C6H8, assume that the molecule is linear and use the values 13 and 154 pm for C C and C-C bonds. Express your answer with the appropriate units a Value Units Submit My Answers Give Up incorrect, Try Again
Regarding hexatriene described in the previous question, calculate the wavelength of light required to induce a transition...
Regarding hexatriene described in the previous question, calculate the wavelength of light required to induce a transition from the ground state to the first excited state using the particle in a box model. To calculate the box length, assume that the molecule is linear and use the values 135 and 154 pm for C=C and C–C bonds, ignore the two ends (3 double bonds, 2 single bonds) Please enter the wavelength in the unit of nm (without entering the unit), with...
7. π electron is an electron which resides in the pi bond(s) of a double bond or a triple bond, o...
7. π electron is an electron which resides in the pi bond(s) of a double bond or a triple bond, or in a conjugated p orbital. The 1,3,5-hexatriene molecule is a conjugated molecule with 6 t electrons. Consider the Tt electrons free to move back and forth along the molecule through the delocalized pi system. Using the particle in a box approximation, treat the carbon chain as a linear one-dimensional "box". Allow each energy level in the box to hold...
1. Use the model of the particle in the ring (rotation in two dimensions) of quantum...
1. Use the model of the particle in the ring (rotation in two dimensions) of quantum mechanics to describe the movement of electrons in the conjugate system of the benzene molecule. Presume that the circumference of the ring is equal to 8.40A. a. ((3 pts) Make a diagram of the energy levels of the electrons Pi in the benzene molecule, clearly identifying the HOMO and the LUMO. b. (3 pts) Calculate the energy of the HOMO and LUMO C. (3...
Calculate the energy levels of the π network in hexatriene. C6H8, using the particle in the box model. To calculate the box length, assume that the molecule is linear and use the values 135 and 154 pm for C-C and C-C bonds. What is the wavelength of light required to induce a transition from the ground state to the first excited state? How does this compare with the experimentally observed value of 240nm? What does the comparison made suggest to...
2) If we assume the π-network in decatetraene (C10H12) to serve as a one dimensional box containing eight π-electrons that can each be assumed to behave according to the particle in a box model where each level is assumed to be doubly degenerate, and if we further assume that the molecule is linear and use the values 135 and 154 pm for the C=C and C- C bonds respectively, what wavelength of light is required to induce a transition from...
Huckel/PIB
a) Calculate the ground-state energy levels of the π-network in hexatriene, model, and for each of them indicate the associated degeneracy. To ca molecule is linear and use the values 135 and 154 pm for C-C and C-C bonds CoHs, using the particle in the box lculate the box length, assume that the to induce a transition from the ground state to the first excited e can be obtained using Huckel theory. Knowing b) What is the wavelength of...
Part A Calculate the box length, using the particle in the box model for hexatriene, C6H8, assume that the molecule is linear and use the values 13 and 154 pm for C C and C-C bonds. Express your answer with the appropriate units a Value Units Submit My Answers Give Up incorrect, Try Again
7. π electron is an electron which resides in the pi bond(s) of a double bond or a triple bond, or in a conjugated p orbital. The 1,3,5-hexatriene molecule is a conjugated molecule with 6 t electrons. Consider the Tt electrons free to move back and forth along the molecule through the delocalized pi system. Using the particle in a box approximation, treat the carbon chain as a linear one-dimensional "box". Allow each energy level in the box to hold...
1. Use the model of the particle in the ring (rotation in two dimensions) of quantum mechanics to describe the movement of electrons in the conjugate system of the benzene molecule. Presume that the circumference of the ring is equal to 8.40A. a. ((3 pts) Make a diagram of the energy levels of the electrons Pi in the benzene molecule, clearly identifying the HOMO and the LUMO. b. (3 pts) Calculate the energy of the HOMO and LUMO C. (3...
