A 28-g rifle bullet traveling 170 m/s embeds itself in a 3.9-kg pendulum hanging on a...

A 28-g rifle bullet traveling 170 m/s embeds itself in a 3.9-kg pendulum hanging on a 2.8-m-long string, which makes the pendulum swing upward in an arc. (Figure 1) Determine the vertical component of the pendulum's maximum displacement. Determine the horizontal component of the pendulum's maximum displacement.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

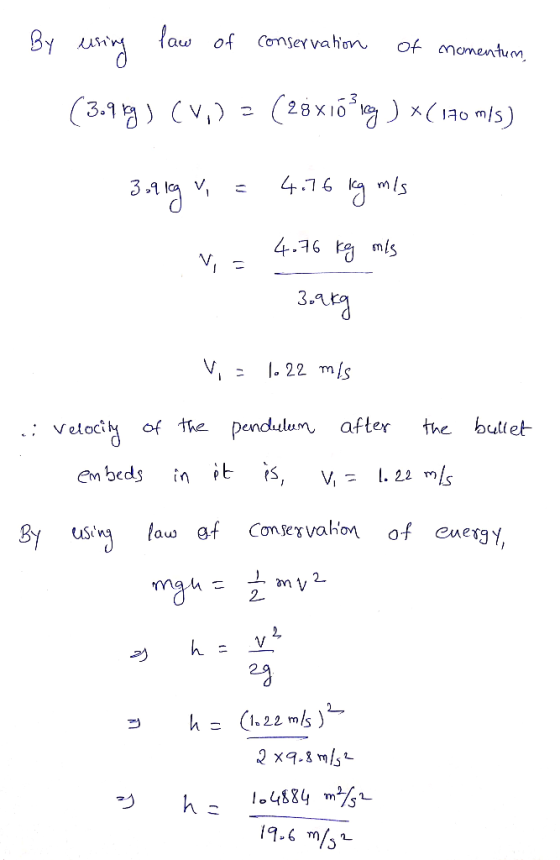

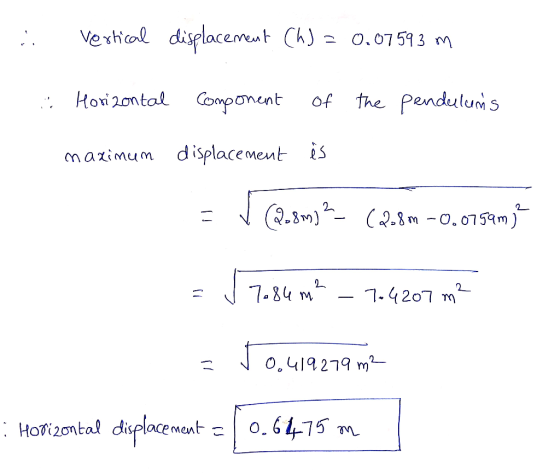

The detailed answer is explained below

0 0
Add a comment
Know the answer?
Add Answer to:
A 28-g rifle bullet traveling 170 m/s embeds itself in a 3.9-kg pendulum hanging on a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 27-g rifle bullet traveling 200 m/s embeds itself in a 3.9-kg pendulum hanging on a...

    A 27-g rifle bullet traveling 200 m/s embeds itself in a 3.9-kg pendulum hanging on a 2.6-m-long string, which makes the pendulum swing upward in an arc. Determine the vertical component of the pendulum's maximum displacement. Determine the horizontal component of the pendulum's maximum displacement.

  • A 29-g rifle bullet traveling 240 m/s embeds itself in a 3.0-kg pendulum hanging on a...

    A 29-g rifle bullet traveling 240 m/s embeds itself in a 3.0-kg pendulum hanging on a 2.9-m-long string, which makes the pendulum swing upward in an arc. (Figure 1) Determine the vertical component of the pendulum's maximum displacement. 1. Express your answer to two significant figures and include the appropriate units. 2. Determine the horizontal component of the pendulum's maximum displacement. Express your answer to two significant figures and include the appropriate units.

  • A 14 g rifle bullet traveling 170 m/s buries itself in a 4.0 kg pendulum hanging...

    A 14 g rifle bullet traveling 170 m/s buries itself in a 4.0 kg pendulum hanging on a 3.4 m long string, which makes the pendulum swing upward in an arc. Determine the horizontal component of the pendulum's maximum displacement. M

  • Problem 35 35. (II) A 28-g rifle bullet traveling 190 m/s embeds itself in a 3.1-kg...

    Problem 35 35. (II) A 28-g rifle bullet traveling 190 m/s embeds itself in a 3.1-kg pendulum hanging on a 2.8-m-long string, which makes the pendulum swing upward in an arc. Determine the vertical and horizontal components of the pendulum?s maximum displacement.

  • 1. A 25-g rifle bullet traveling 240 m/s embeds itself in a 3.0-kg pendulum hanging on...

    1. A 25-g rifle bullet traveling 240 m/s embeds itself in a 3.0-kg pendulum hanging on a 2.5-m-long string, which makes the pendulum swing upward in an arc. (Figure 1) A) Determine the vertical component of the pendulum's maximum displacement. Express your answer to two significant figures and include the appropriate units. B) Determine the horizontal component of the pendulum's maximum displacement. Express your answer to two significant figures and include the appropriate units. 2. A 11-kg hammer strikes a...

  • A 20 g rifle bullet travelling 210 m/s buries itself in a 4.0 kg pendulum hanging...

    A 20 g rifle bullet travelling 210 m/s buries itself in a 4.0 kg pendulum hanging on a 2.8 m long string, which makes the pendulum swing upward in arc. Determine the vertical and horizontal components of the pendulum's displacement. Vertical ____ m horizontal ____ m

  • An 34 g rifle bullet traveling at 310 m/s buries itself in a 4.4 kg pendulum...

    An 34 g rifle bullet traveling at 310 m/s buries itself in a 4.4 kg pendulum hanging on a 2.6 m long string, which makes the pendulum swing upward in an arc. Determine the maximum vertical displacement of the pendulum (height).(g = 9.8 m/s2)

  • An 26 g rifle bullet traveling at 270 m/s buries itself in a 4.4 kg pendulum...

    An 26 g rifle bullet traveling at 270 m/s buries itself in a 4.4 kg pendulum hanging on a 2.2 m long string, which makes the pendulum swing upward in an arc. Determine the maximum vertical displacement of the pendulum (height).(g = 9.8 m/s2)

  • A gun is fired it, as shown in the f 6. 1 kok fwat rst on...

    A gun is fired it, as shown in the f 6. 1 kok fwat rst on a thin horiontal sheet direcely aboe vertically into a m figure below If the bullet has a mass of 21.4 g and a speed of t- 300 m/s, how high will the block rise into the air after the bullet becomes embedded in it? 7. An 19.8 g rifle bullet traveling 221 m/s buries itself in a 3.76 kg pendulum hanging on a 2.84...

  • An 18-gram rifle bullet traveling 230 m/s buries itself in a 3.6 kg block of wood...

    An 18-gram rifle bullet traveling 230 m/s buries itself in a 3.6 kg block of wood that is hanging on a string. How high will the block swing upwards after the collision?
