An equilateral triangle 8.0 cm on a side is in a 3 mT uniform magnetic field. The magnetic flux through the triangle is 6.0 μWb.

What is the angle between the magnetic field and an axis perpendicular to the plane of the triangle?

science physics

Answer 1

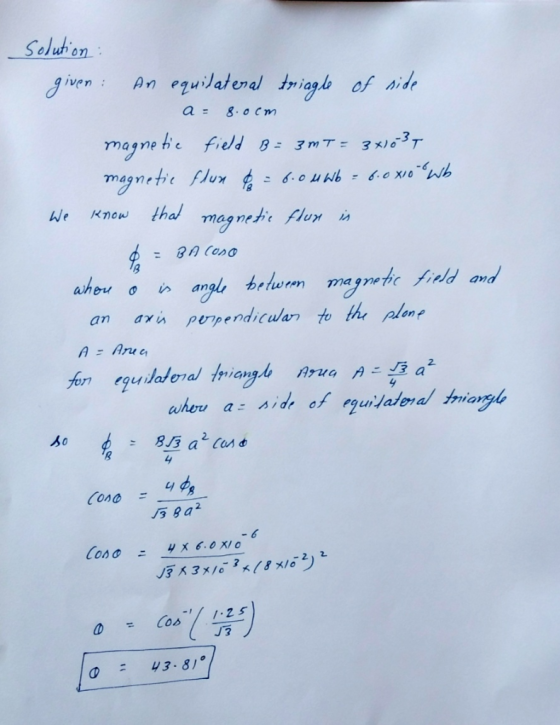

Answer #1

Answer 2
