A large uniform "butcher block" rests on two supports and has a weight hanging from its...

A large uniform "butcher block" rests on two supports and has a weight hanging from its end. The block has a mass of 100 kg and a length of 2 meters. If L = 1.33 meters and the hanging weight is 162 newtons, what is the force on the left support to the nearest newton?

In the previous problem what is the force on the right support?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

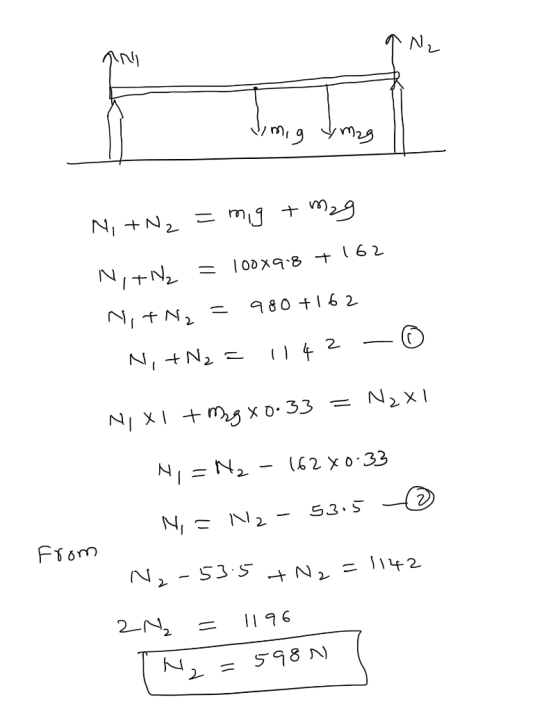

Answer #1

0 0
