Derive the expressions of the average and rms values of the load voltage and current in...

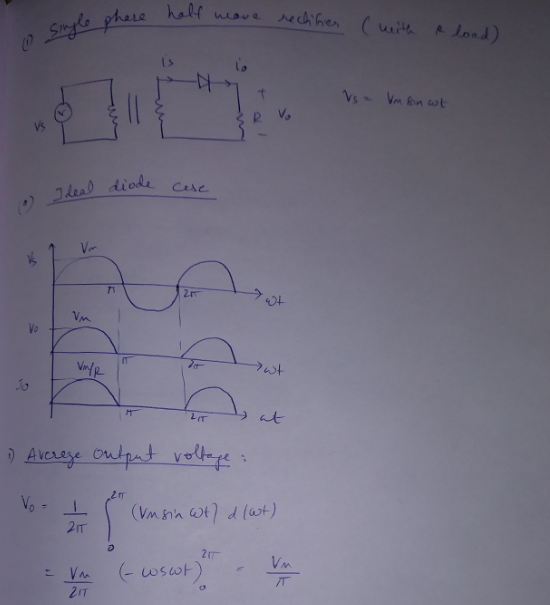

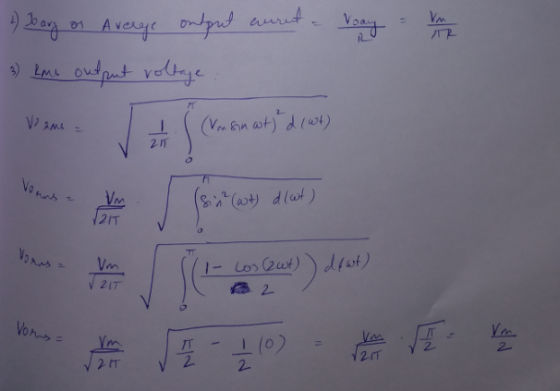

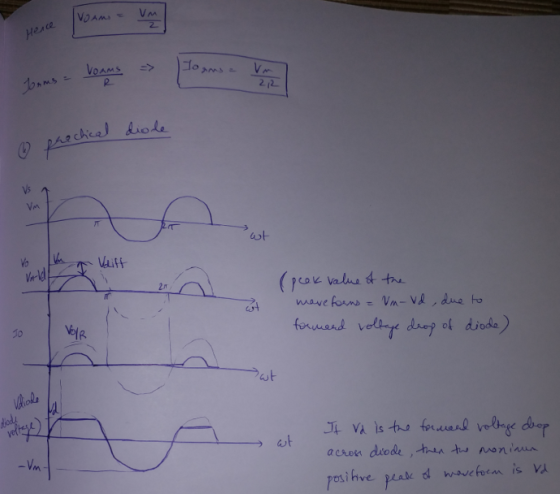

Derive the expressions of the average and rms values of the load voltage and current in single-phase half-wave uncontrolled rectifiers. In case of practical diode, draw the waveforms of supply voltage, output voltage, output current and diode voltage.
Homework Answers
