A steam power plant operates on an ideal Rankine cycle with two stages of reheat and...

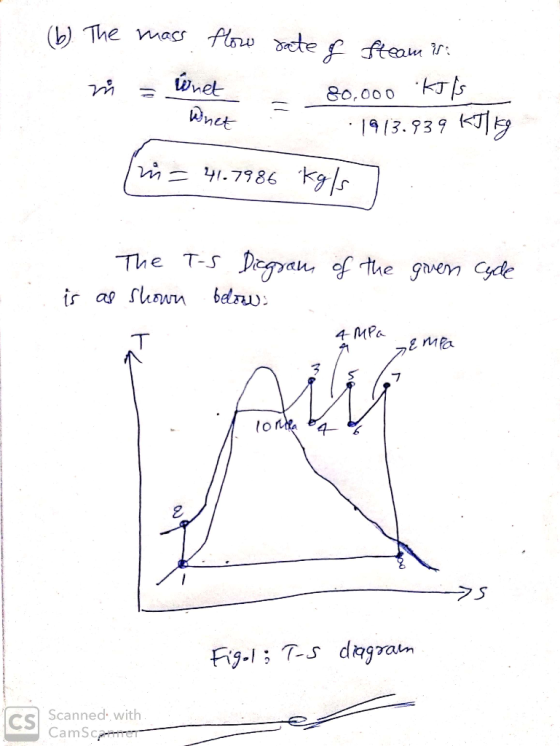

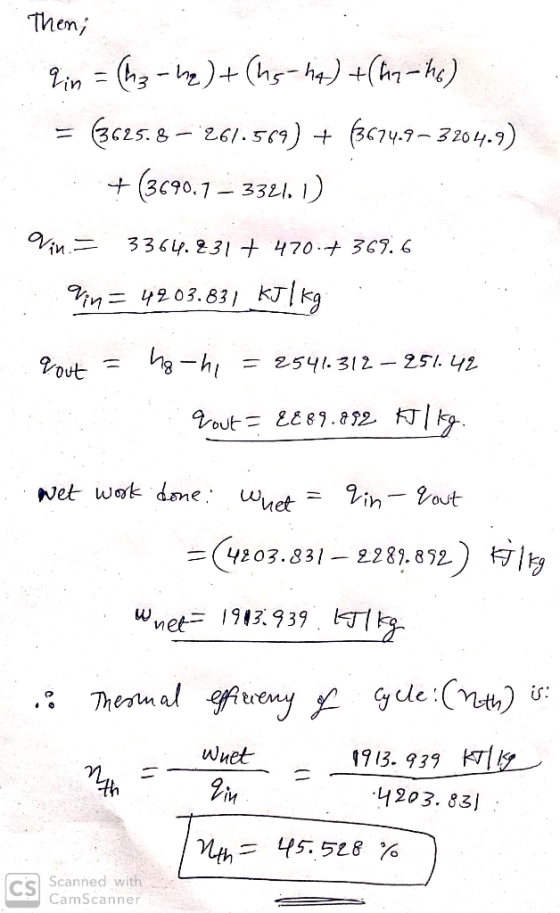

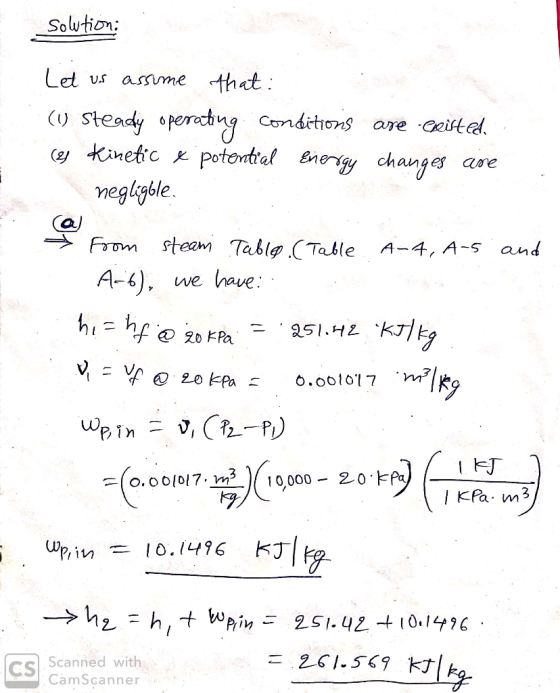

A steam power plant operates on an ideal Rankine cycle with two stages of reheat and has a net power output of 80 MW. Steam enters all three stages of the turbine at 600 oC. The maximum pressure in the cycle is 10 MPa, and the minimum pressure is 20 kPa. Steam is reheated at 4 MPa the first time and at 2 MPa the second time. Show the cycle on a T-s diagram with respect to saturation lines, an determine (a) the thermal efficiency of the cycle, and (b) the mass flow rate of the steam.
Homework Answers
