1. A battery having an emf of 9.34 V delivers 116 mA when connected to a...

1. A battery having an emf of 9.34 V delivers 116 mA when connected to a 67.5 Ω load. Determine the internal resistance of the battery. Ω

2.Three 9.4 Ω resistors are connected in series with a 19.0 V battery. Find the following.

(a) the equivalent resistance of the circuit Ω

(b) the current in each resistor A

(c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in each resistor A

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

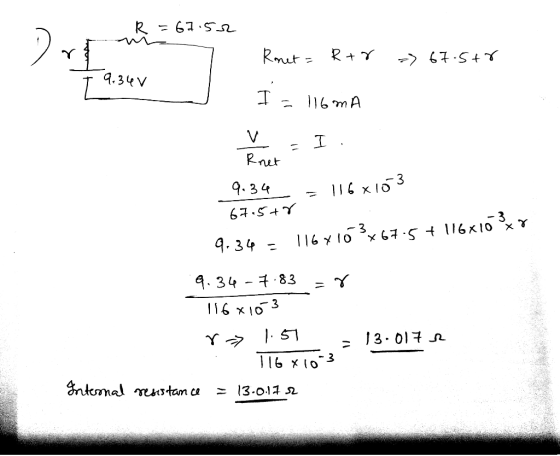

Answer #1

0 0
Add a comment
