An aluminum wire with a diameter of 0.125 mm has a uniform electric field of 0.295...

An aluminum wire with a diameter of 0.125 mm has a uniform electric field of 0.295 V/m imposed along its entire length. The temperature of the wire is 55.0° C. Assume one free electron per atom.

(a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity of aluminum at this temperature.
ρ = 3.2e-8 Ω·m

(b) What is the current density in the wire?
J = MA / m2

(c) What is the total current in the wire?
I = mA

(d) What is the drift speed of the conduction electrons?
vd = µm/s

(e) What potential difference must exist between the ends of a 1.90-m length of the wire to produce the stated electric field?
ΔV =

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

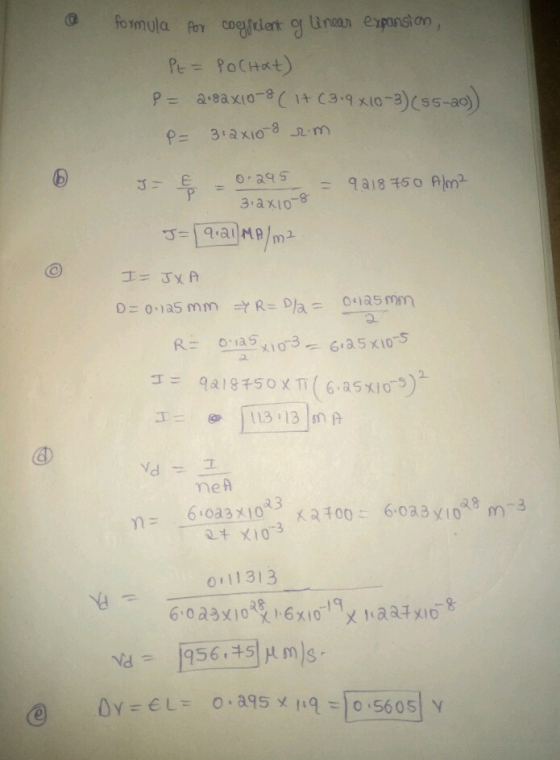

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
An aluminum wire with a diameter of 0.125 mm has a uniform electric field of 0.295...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235...

    An aluminum wire with a diameter of 0.115 mm has a uniform electric field of 0.235 V/m imposed along its entire length. The temperature of the wire is 45.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in Ω · m) of aluminum at this temperature. ρ =  Ω · m (b) What is the current density (in MA/m2) in the wire? J =  MA/m2 (c) What is...

  • An aluminum wire with a diameter of 0.105 mm has a uniform electric field of 0.325...

    An aluminum wire with a diameter of 0.105 mm has a uniform electric field of 0.325 V/m imposed along its entire length. The temperature of the wire is 35.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in Ω · m) of aluminum at this temperature. ρ = _______Ω · m (b) What is the current density (in MA/m2) in the wire? J = ________MA/m2 (c)...

  • An aluminum wire with a diameter of 0.095 mm has a uniform electric field of 0.205...

    An aluminum wire with a diameter of 0.095 mm has a uniform electric field of 0.205 V/m imposed along its entire length. The temperature of the wire is 35.0°C. Assume one free electron per atom. (a) Use the information in this Table of Resistivities and Temperature Coefficients to determine the resistivity (in . m) of aluminum at this temperature. p= 2.m (b) What is the current density (in MA/m2) in the wire? = C MA/m2 (c) What is the total...

  • What is the electric field in an aluminum wire if the drift speed of the free...

    What is the electric field in an aluminum wire if the drift speed of the free elctrons in the wire is measured to be 3.63 * 10^-5 m/s? The resistivity of aluminum us 2.655 * 1-^-8 ohms/m.

  • A 5.30 m length of 1.6 mm -diameter wire carries a 710 mA current when 18.0...

    A 5.30 m length of 1.6 mm -diameter wire carries a 710 mA current when 18.0 mV is applied to its ends. The drift velocity is 1.2×10−5 m/s . Part A Determine the resistance R of the wire. Part B Determine the resistivity ρ. Part C Determine the current density j. Part D Determine the electric field inside the wire. Part E Determine the number n of free electrons per unit volume.

  • 15. A spool of aluminum wire 290 m long and with a diameter of 0.440 mm...

    15. A spool of aluminum wire 290 m long and with a diameter of 0.440 mm is at 20.0°C. For aluminum, the resistivity is 2.82 ✕ 10−8 Ω · m and the temperature coefficient of resistivity is 3.90 ✕ 10−3 (°C)−1. (a) What is the magnitude of the electric field (in V/m) in the wire if it carries a current of 0.600 A? V/m (b) What is the electric power (in W) delivered to the spool while it carries a...

  • Calculate the ratio of the resistance of 11.0 m of aluminum wire 2.5 mm in diameter,...

    Calculate the ratio of the resistance of 11.0 m of aluminum wire 2.5 mm in diameter, to 23.0 m of copper wire 1.9 mm in diameter. The resistivity of copper is 1.68×10−8Ω⋅m and the resistivity of aluminum is 2.65×10−8Ω⋅m. --------------------- A length of aluminum wire is connected to a precision 10.00-Vpower supply, and a current of 0.4132 A is precisely measured at 23.5 ∘C. The wire is placed in a new environment of unknown temperature where the measured current is...

  • 7) A 4.0 m length of gold wire is connected to a 1.5 V battery, and...

    7) A 4.0 m length of gold wire is connected to a 1.5 V battery, and a current of 4.0 mA flows through it. What is the diameter of the wire? (The resistivity of gold is 2.44 × 10-8 Ω·m.) A) 17 µm B) 8.5 µm C) 48 µm D) 9.0 µm

  • 1. When a current flows in an aluminum wire of diameter 4.67 mm, the drift speed...

    1. When a current flows in an aluminum wire of diameter 4.67 mm, the drift speed of the conduction electrons is 0.000135 m/s. How many electrons are flowing past a given point each second? The conduction electron density in aluminum is 6.00×1028 m−3. 2. When a current flows in an aluminum wire of diameter 2.15 mm, the drift speed of the conduction electrons is 0.000249 m/s. How many electrons are flowing past a given point each second? The conduction electron...

  • Please answer this question: An aluminum wire having a cross-sectional area of 2.10 ✕ 10−6 m2...

    Please answer this question: An aluminum wire having a cross-sectional area of 2.10 ✕ 10−6 m2 carries a current of 6.00 A. The density of aluminum is 2.70 g/cm3. Assume each aluminum atom supplies one conduction electron per atom. Find the drift speed of the electrons in the wire. Please answer correctly!!!! Thank you so much in advance! Safari File Edit View History Bookmarks Window Help 恸 令49%DEE1 Mon 3:12:37 PM 6.585*10*-5 X Your response is off by a multiple...
