Draw a compact ladder logic diagram for an XOR function on the rungs below using only...

Question

Question

Draw a compact ladder logic diagram for an XOR function on the rungs below using only contacts and coils.

engineering Electrical-Engineering

Answer 1

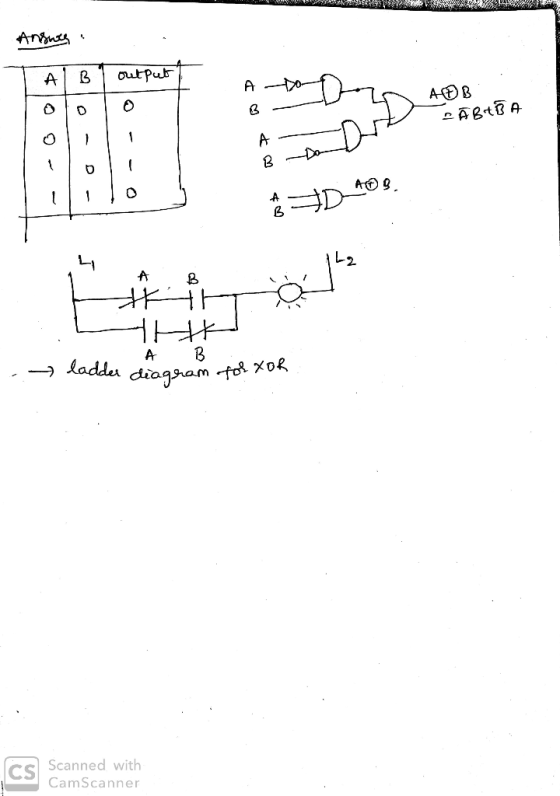

Answer #1

Answer 2
