A device that is used to measure wind speed is called an anemometer. When it measures...

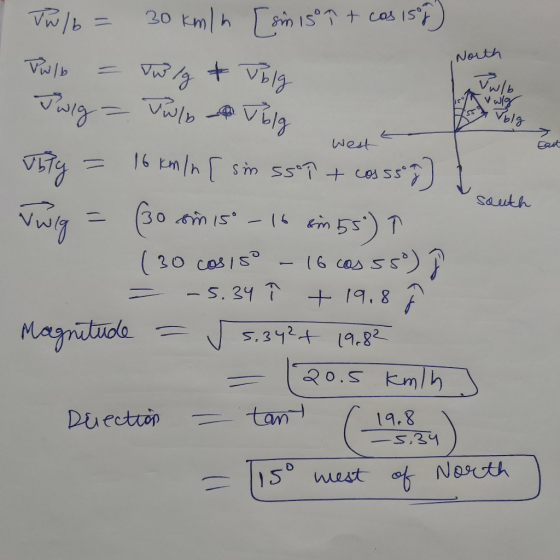

A device that is used to measure wind speed is called an anemometer. When it measures the wind on a moving object the measured value is called the apparent wind. A boat carries onboard an anemometer and measures the apparent wind velocity as 30 km/h, coming from an apparent direction of 15◦ east of north. At that time the boat is traveling at 16 km/h at 55◦ east of north relative to the ground. What is the magnitude and direction of the velocity of the wind relative to the ground? For full credit, you must draw a full, labelled vector addition diagram representing this situation.
Homework Answers
Add Answer to:
A device that is used to measure wind speed is called an
anemometer. When it measures...
TEST REVIEW (Show all work, including formula and units for full credit.) a) A plane has...
TEST REVIEW (Show all work, including formula and units for full credit.) a) A plane has a speed of 550 km/h west relative to the air. A wind blows 35 km/h east relative to the ground. What is the plane’s speed and direction relative to the ground? b) A motorboat heads due west at 18 m/s relative to a river that flows due north at 4.0 m/s. What is the velocity (both magnitude and direction) of the motorboat relative to...
An airplane’s speed relative to the air is 220 km/h. A GPS+compass device in the cockpit,...
An airplane’s speed relative to the air is 220 km/h. A GPS+compass device in the cockpit, however, indicates that the actual velocity of the plane with respect to the ground is 140 km/h due north. Assuming that the air is moving in a wind towards the east, what is the wind speed?
The magnitude of a velocity vector is called speed. Suppose that a wind is blowing from...
The magnitude of a velocity vector is called speed.
Suppose that a wind is blowing from the direction N45°W at a speed
of 50 km/h. (This means that the direction from which the wind
blows is 45° west of the northerly direction.) A pilot is steering
a plane in the direction N60°E at an airspeed (speed in still air)
of 100 km/h. The true course, or track, of the
plane is the direction of the resultant of the velocity vectors...
An airplane has a speed of 265 km/h relative to the air. There is a wind...
An airplane has a speed of 265 km/h relative to the air. There is a wind blowing at 75 km/h at 30° north of east relative to Earth. In which direction should the plane head to land at an airport due north of its present location? ° west of north What is the plane's speed relative to the ground?
The magnitude of a velocity vector is called speed. Suppose that a wind is blowing from the direc...
The magnitude of a velocity vector is called speed. Suppose that a wind is blowing from the direction N45°W at a speed of 50 km/h. (This means that the direction from which the wind blows is 45° west of the northerly direction.) A pilot is steering a plane in the direction N60°E at an airspeed (speed in still air) of 150 km/h. The true course, or track, of the plane is the direction of the resultant of the velocity vectors...
While the wind is blowing due East at 87 km/hr relative to the ground, a jet...
While the wind is blowing due East at 87 km/hr relative to the ground, a jet travels due North at 562 km/hr relative to the wind (the air). Obviously, the wind will push the jet eastward and throw the jet off course. What is the velocity of the jet relative to the ground? Before you do any calculations, make sure that you draw a diagram that shows reference frames S and S', Also, make sure that you label the velocities...
Please show work 1. A 0.25 km wide river has a uniform flow speed of 4.2...
Please show work
1. A 0.25 km wide river has a uniform flow speed of 4.2 m/s toward the east. It takes 23 s for a boat departing from the south bank to travel straight across the river to a position directly north of its departure. a) In what direction must the boat be pointed so as to accomplish this? Express your final answer relative to the North direction. (Hint: Start by drawing a right triangle representing the vector addition)...
I need help on number 80 M ILW Iwo ships, A and B, leave port at...
I
need help on number 80
M ILW Iwo ships, A and B, leave port at the same time. Ship A travels northwest at 24 knots, and ship B travels at 28 knots in a direction 40° west of south. (1 knot 1 nautical mile per hour see Appendix D.) What are the (a) magnitude and (b) direction of the velocity of ship A relative to B? (c) After what time will the ships be 160 nautical miles apart? (d)...
If a wind begins blowing from the southwest at a speed of 100 km/h (average), calculate...
If a wind begins blowing from the southwest at a speed of 100 km/h (average), calculate the velocity (magnitude) of the plane relative to the ground. [Hint: First draw a diagram.| Constants Express your answer to three significant figures and include the appropriate units. An airplane is heading due south at a speed of 620 km/h Value Units Submit X Incorrec; Try Again; 5 attempts remaining ▼ Part B Cakculate the velocity (direction) of the plane relative to the ground...
8. A boat is heading due north as it crosses a wide river with a speed...
8. A boat is heading due north as it crosses a wide river with a speed of 10.0 km/h relative to the water. The river has a current such that the water moves with a uniform speed 5.00 km/h due east. Determine the magnitude and direction of the boat's velocity with respect to an observer on the riverbank (5 points) A plane maintains a speed of 630 km/h relative to the air it is flying through, as it makes a...
The magnitude of a velocity vector is called speed.
Suppose that a wind is blowing from the direction N45°W at a speed
of 50 km/h. (This means that the direction from which the wind
blows is 45° west of the northerly direction.) A pilot is steering
a plane in the direction N60°E at an airspeed (speed in still air)
of 100 km/h. The true course, or track, of the
plane is the direction of the resultant of the velocity vectors...
Please show work
1. A 0.25 km wide river has a uniform flow speed of 4.2 m/s toward the east. It takes 23 s for a boat departing from the south bank to travel straight across the river to a position directly north of its departure. a) In what direction must the boat be pointed so as to accomplish this? Express your final answer relative to the North direction. (Hint: Start by drawing a right triangle representing the vector addition)...
I
need help on number 80
M ILW Iwo ships, A and B, leave port at the same time. Ship A travels northwest at 24 knots, and ship B travels at 28 knots in a direction 40° west of south. (1 knot 1 nautical mile per hour see Appendix D.) What are the (a) magnitude and (b) direction of the velocity of ship A relative to B? (c) After what time will the ships be 160 nautical miles apart? (d)...
If a wind begins blowing from the southwest at a speed of 100 km/h (average), calculate the velocity (magnitude) of the plane relative to the ground. [Hint: First draw a diagram.| Constants Express your answer to three significant figures and include the appropriate units. An airplane is heading due south at a speed of 620 km/h Value Units Submit X Incorrec; Try Again; 5 attempts remaining ▼ Part B Cakculate the velocity (direction) of the plane relative to the ground...
8. A boat is heading due north as it crosses a wide river with a speed of 10.0 km/h relative to the water. The river has a current such that the water moves with a uniform speed 5.00 km/h due east. Determine the magnitude and direction of the boat's velocity with respect to an observer on the riverbank (5 points) A plane maintains a speed of 630 km/h relative to the air it is flying through, as it makes a...
