A 25.00 mH inductor, with internal resistance of 23.00 Ω, is connected to a 110.0 V...

A 25.00 mH inductor, with internal resistance of 23.00 Ω, is connected to a 110.0 V rms source. If the average power dissipated in the circuit is 40.00 W, what is the frequency? (Model the inductor as an ideal inductor in series with a resistor.)

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

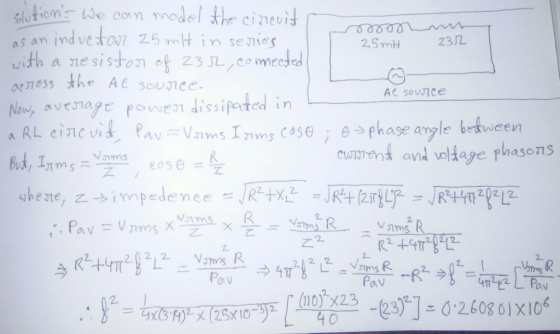

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 25.00 mH inductor, with internal resistance of 23.00 Ω, is connected to a 110.0 V...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 22.0-mH inductor, with internal resistance of 22.0 Ω, is connected to a 110-V rms source....

    A 22.0-mH inductor, with internal resistance of 22.0 Ω, is connected to a 110-V rms source. If the average power dissipated in the circuit is 62.0 W, what is the frequency? (Model the inductor as an ideal inductor in series with a resistor.)

  • An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance...

    An ideal inductor of inductance 7.7 mH is connected in parallel with a resistor of resistance 141 Ω. This parallel combination is then connected in series with a second ideal inductor of inductance 4.5 mH. The sinusoidal voltage source for the circuit is 102 V, 71.6 Hz. Sketch the circuit and find the magnitude of the current, I, flowing through the resistor.

  • A 500 Ω resistor and a 280 mH inductor are connected in series with an ac...

    A 500 Ω resistor and a 280 mH inductor are connected in series with an ac generator with an rms voltage of 23.0 V and a frequency of 65.0 Hz What is the rms current in this circuit? I(rms)= ? mA

  • An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms)...

    An inductor and a resistor are connected in series. When connected to a 60-Hz, 90-V (rms) source, the voltage drop across the resistor is found to be 46 V (rms) and the power delivered to the circuit is 12 W. (a) Find the value of the resistance. Ω (b) Find the value of the inductance. H

  • 1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V...

    1. A 8.50-Ω resistor, 6.50-mH inductor, and 110-µF capacitor are connected in series to a 45.0-V (rms) source having variable frequency. If the operating frequency is twice the resonance frequency, find the energy delivered to the circuit during one period. 2. A 1.48-mF capacitor is connected to a North American electrical outlet (ΔVrms = 120 V, f = 60.0 Hz). Assuming the energy stored in the capacitor is zero at t = 0, determine the magnitude of the current in...

  • A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible...

    A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all connected in series with an open switch. The switch is suddenly closed. How long after closing the switch will the energy stored in the inductor reach one-half of its maximum value?

  • A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C =...

    A coil (L = 94.1 mH), a resistor (R = 31 Ω), a capacitor (C = 98.6 μF) and an A.C. source (52.9 V, 84.4 Hz) are connected in series. Find the rms power, in W, dissipated by the circuit. NOTE: If the voltage of an A.C. power source is given without specification, it is rms. For example: a "10 V A.C. power source" an output voltage of 10 V rms.

  • If a l V rms signal source with an internal resistance of 50 Ω is connected...

    If a l V rms signal source with an internal resistance of 50 Ω is connected to the amplifier in Figure what is the actual rms signal applied to the amplifier input? Assume Bac 200 +15 V RI 1.0 kΩ 01 Di C3 02 75 Ω 1.0 kΩ Class C Power Amplifiers A certain class C amplifier transistor is on for 10 percent of the input cycle. If Veetsa) 0.18 V and Ie(sa)25 mA, what is the average power dissipation...

  • A resistor with R = 350 Ω and an inductor are connected in series across an...

    A resistor with R = 350 Ω and an inductor are connected in series across an ac source that has voltage amplitude 500 V . The rate at which electrical energy is dissipated in the resistor is 306 W (a) What is the impedance Z of the circuit? (b) What is the amplitude of the voltage across the inductor? (c) What is the power factor?

  • A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an...

    A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch.A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.110 ms after the switch is closed? unit (mA) Part B How much energy is stored in the inductor at this time? unit(micro J)
