Question 1
-

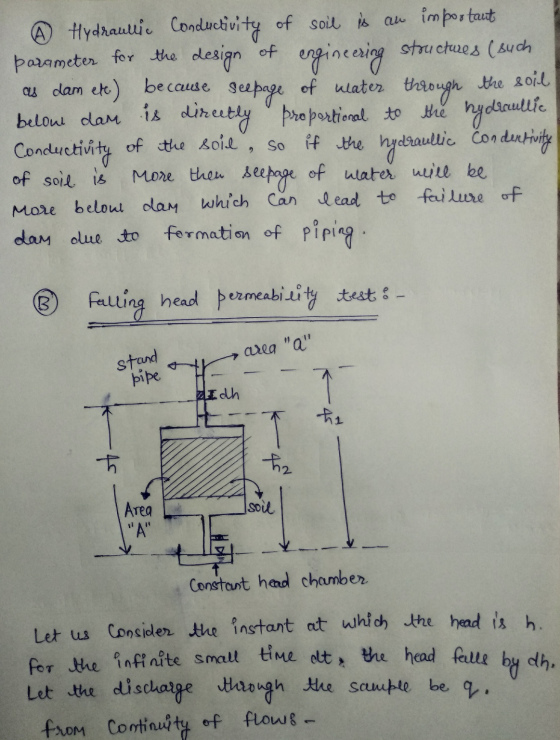

a) Hydraulic conductivity of soils is an important parameter for the design of engineering structures (such as dams, etc.). Why?
-

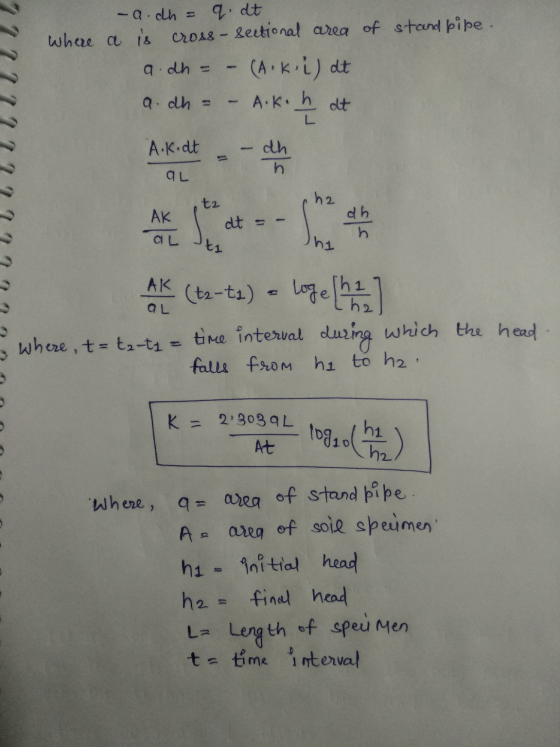

b) With the help of a fully labelled diagram, derive the expression for the hydraulic conductivity of soil based on the falling-head permeability test.
-

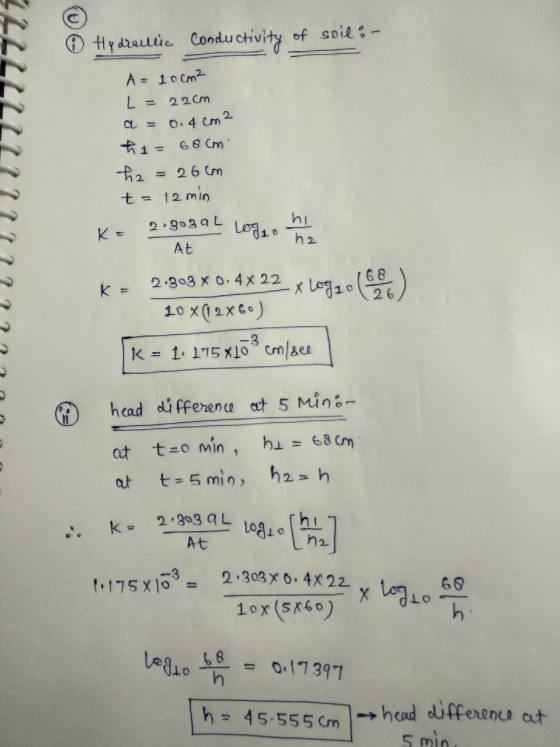

c) The following data was recorded from a falling-head permeability test:
Area of the soil specimen = 10 cm Length of the soil specimen = 22 cm Area of standpipe = 0.4 cm2
Head difference at 0 min time = 68 cm Head difference at 12 min time = 26 cm
-
i) Determine the hydraulic conductivity of the soil in cm/s.
-
ii) What was the head difference at 5 min time?
Homework Answers
Add Answer to:
Question 1
a) Hydraulic conductivity of soils is an important parameter for
the design of engineering...
Problem 3. For a falling-head permeability test, the following are given: Length of soil spec imen...
Problem 3. For a falling-head permeability test, the following are given: Length of soil spec imen 500 mm Area of the soil specimen 16 cm Area of the standpipe 0.97 cm2 Head differences at time t 0 is 760 mm Head differences at time t 8 min is 410 mm a) Determine the hydraulic conductivity of the soil b) What was the head differences at time t 5 min
The following data are for falling-head test performed at 25⁰C Temperature: Length of the soil sample...
The following data are for falling-head test performed at 25⁰C Temperature: Length of the soil sample = 40 cm Area of the soil sample = 78,54 cm2 Diameter of the standpipe = 1.1 cm At time t=0 head difference = 54 cm At time t=8 min, head difference = 22 cm a) Determine the permeability of the soil b) What was the head difference at t=4 min?
In a laboratory, a falling-head permeability test was conducted on a silty soil. For the falling-head...
In a laboratory, a falling-head permeability test was
conducted on a silty soil. For the falling-head apparatus, the
following data were obtained:
1. Length of Specimen = 15.80 cm.
2. Diameter of Specimen = 10.16 cm.
3. Cross-sectional area of burette = 1.83 cm2
4. Hydraulic head at beginning of test (h1) = 120.0
cm.
5. Hydraulic head at end of test (h2) = 110.0 cm.
6. Time required for water in the burette to drop from
h1 to h2...
Subject: Geotechnical Engineering (soil mechanics). Q3. A sand sample of 35 cm2 cross sectional area and...
Subject: Geotechnical Engineering (soil mechanics).
Q3. A sand sample of 35 cm2 cross sectional area and 20 cm long was tested in a constant head permeameter. Under a head of 60 cm, the discharge was 120 ml in 6 min. The dry weight of sand used for the test was 1120 gm, and Gs = 2.68. Determine (a) the hydraulic conductivity in cm/sec, (b) the discharge velocity, and (c) the seepage velocity.
QUESTION 1 Hydraulic conductivity through soils (or permeablity) can be measured in the laboratory using either...
QUESTION 1 Hydraulic conductivity through soils (or permeablity) can be measured in the laboratory using either d conditions. or hea QUESTION 2 The test conditions employed are irrespective of the type of soil being tested O True ○ False QUESTION 3 For this experiment, the procedure was performed in accordance with the appropriate ASTM designation ASTM is an abbreviation for (
Please write correct option after completion of your answer Length of soil sample for constant head...
Please write correct option after completion of your
answer
Length of soil sample for constant head permeability test is 30 cm, Area of specimen is 177cm2 constant head difference is 50 cm, total volume of water collected in 5 min is 350cm Calculate the hydraulic conductivity of the soil. ) 1.09x10 cm/sec )3.95x10cm/sec A) 2.85 x10'cm/sec )1.09x10 cm/sec We were unable to transcribe this imageFind the error in the discharge when a head of water over the crest of a...
Problem 3. For a falling-head permeability test, the following are given: Length of soil spec imen 500 mm Area of the soil specimen 16 cm Area of the standpipe 0.97 cm2 Head differences at time t 0 is 760 mm Head differences at time t 8 min is 410 mm a) Determine the hydraulic conductivity of the soil b) What was the head differences at time t 5 min
In a laboratory, a falling-head permeability test was
conducted on a silty soil. For the falling-head apparatus, the
following data were obtained:
1. Length of Specimen = 15.80 cm.
2. Diameter of Specimen = 10.16 cm.
3. Cross-sectional area of burette = 1.83 cm2
4. Hydraulic head at beginning of test (h1) = 120.0
cm.
5. Hydraulic head at end of test (h2) = 110.0 cm.
6. Time required for water in the burette to drop from
h1 to h2...
Subject: Geotechnical Engineering (soil mechanics).
Q3. A sand sample of 35 cm2 cross sectional area and 20 cm long was tested in a constant head permeameter. Under a head of 60 cm, the discharge was 120 ml in 6 min. The dry weight of sand used for the test was 1120 gm, and Gs = 2.68. Determine (a) the hydraulic conductivity in cm/sec, (b) the discharge velocity, and (c) the seepage velocity.
QUESTION 1 Hydraulic conductivity through soils (or permeablity) can be measured in the laboratory using either d conditions. or hea QUESTION 2 The test conditions employed are irrespective of the type of soil being tested O True ○ False QUESTION 3 For this experiment, the procedure was performed in accordance with the appropriate ASTM designation ASTM is an abbreviation for (
Please write correct option after completion of your
answer
Length of soil sample for constant head permeability test is 30 cm, Area of specimen is 177cm2 constant head difference is 50 cm, total volume of water collected in 5 min is 350cm Calculate the hydraulic conductivity of the soil. ) 1.09x10 cm/sec )3.95x10cm/sec A) 2.85 x10'cm/sec )1.09x10 cm/sec We were unable to transcribe this imageFind the error in the discharge when a head of water over the crest of a...
