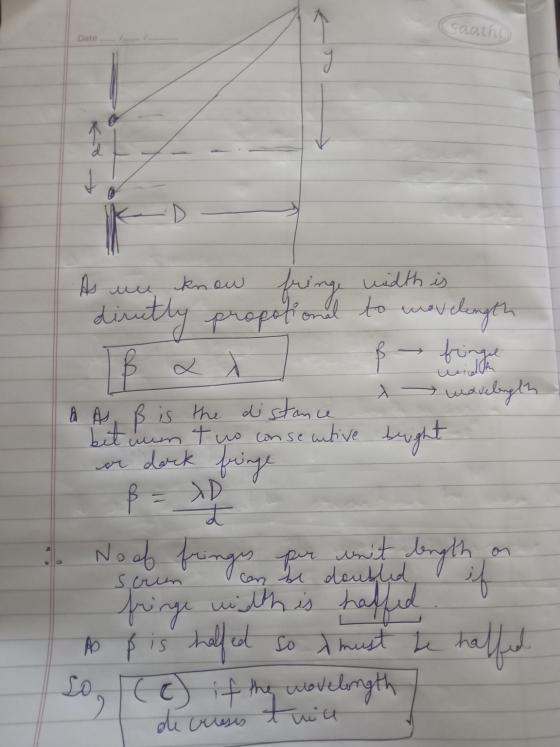

Bright and dark fringes are seen on a screen when light from a single source reaches...
Bright and dark fringes are seen on a screen when light from a single source reaches two narrow slits a short distance apart. The number of fringes per unit length on the screen can be doubled
Group of answer choices:
A) if the distance between the slits decreases twice
B) if the wavelength increases twice
C) if the wavelength decreases twice
Homework Answers
Add Answer to:
Bright and dark fringes are seen on a screen when light from a
single source reaches...
In Young's double slit experiment, the position of the bright and dark fringes depends on the...
In Young's double slit experiment, the position of the bright and dark fringes depends on the distance between the slits, the distance from the slits to the screen and the wavelength of the light. a. How far do the slits need to be from the screen for the first dark fringe to be at y = 1.6 cm if the slits are 0.025 mm apart and the wavelength is 540 nm? b. Using the same slits and the distance found...
The second order bright fringes from the double-slit is observed to be 10.7 mm from the...
The second order bright fringes from the double-slit is observed to be 10.7 mm from the center line on the screen. The distance between the screen and the slits is that is 1.2 m . If the slits are illuminated with coherent light of wavelength 700 nm, how far apart should the slits be? Group of answer choices 15.7 μm 35.8 μm 63.0 μm 79.5 μm
show all of your work [10] Red light (656 nm) is passed through two slits, which are separated by a distance of 4.92 um 6. What is the maximum number of dark fringes? What is the length to the screen,...
show all of your work
[10] Red light (656 nm) is passed through two slits, which are separated by a distance of 4.92 um 6. What is the maximum number of dark fringes? What is the length to the screen, if the distance from the central axis to the first bright fringe is 48 cm? a. b.
[10] Red light (656 nm) is passed through two slits, which are separated by a distance of 4.92 um 6. What is the...
What causes the bright and dark fringes to appear on the screen in a double slit...
What causes the bright and dark fringes to appear on the screen
in a double slit interference experiment?
m#2 m-1 m 2 mA screen igure 2. Description of a double slit interference pattern. Peaks represent bright spots. The constructive interference when the distances from the first slit to the screen and the second slit to the screen differ by a whole wavel ength than The two angles labeled theta can be considered equal when the distance to the screen, D,...
A screen containing two slits 0.1 mm apart is 2.0 m from the viewing screen. Light...
A screen containing two slits 0.1 mm apart is 2.0 m from the viewing screen. Light of wavelength 500 nm falls on the slits from the distance source. Approximately how far are adjacent bright fringes on the screen? Give answer in mm.
Q1. How many bright fringes are seen on a screen 3 m in length that is...
Q1. How many bright fringes are seen on a screen 3 m in length that is placed 2 m from a diffraction grating with 700 lines/mm that is illuminated by light of wavelength 550 nm.
Questions 1. In a single slit experiment, the distance between two dark fringes of the second...
Questions 1. In a single slit experiment, the distance between two dark fringes of the second order is 10 cm on a screen which is 1.5 m away. If the wavelength of the light is 650 nm, find the width of the slit A laser light of A- 633nm shines on a wire and diffraction pattern is found on a screen 1 m away. The distance between the first two bright fringes is 8 cm. Find the diameter on the...
A screen is separated from a double-slit source by a distance L. When light of wavelength...
A screen is separated from a double-slit source by a distance L. When light of wavelength 563 nm is incident on the double slit, the separation distance between adjacent bright fringes on the screen is 0.0370 mm. When instead, 500 nm light is used, what is the separation distance (in mm) between adjacent bright fringes?
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.08 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen when the slits are illuminated with a laser of wavelength 633 nm, what should be the distance to the screen from the slits? Group of answer choices 0.42 m 0.63 m 0.77 m 0.81 m 0.92 m
A double-slit experiment has a slit separation distance of 0.06 mm. If the bright interference fringes...
A double-slit experiment has a slit separation distance of 0.06 mm. If the bright interference fringes are to be spaced 5 mm apart on the screen, when the slits are illuminated with a laser of wavelength 532 nm, what should be the distance to the screen from the slits? Group of answer choices 0.68 m 0.45 m 1.12 m 0.56 m 0.77 m
show all of your work
[10] Red light (656 nm) is passed through two slits, which are separated by a distance of 4.92 um 6. What is the maximum number of dark fringes? What is the length to the screen, if the distance from the central axis to the first bright fringe is 48 cm? a. b.
[10] Red light (656 nm) is passed through two slits, which are separated by a distance of 4.92 um 6. What is the...
What causes the bright and dark fringes to appear on the screen
in a double slit interference experiment?
m#2 m-1 m 2 mA screen igure 2. Description of a double slit interference pattern. Peaks represent bright spots. The constructive interference when the distances from the first slit to the screen and the second slit to the screen differ by a whole wavel ength than The two angles labeled theta can be considered equal when the distance to the screen, D,...
Questions 1. In a single slit experiment, the distance between two dark fringes of the second order is 10 cm on a screen which is 1.5 m away. If the wavelength of the light is 650 nm, find the width of the slit A laser light of A- 633nm shines on a wire and diffraction pattern is found on a screen 1 m away. The distance between the first two bright fringes is 8 cm. Find the diameter on the...
