a uniform bar of weight 40N is 4 meter long. weights on 60N and 100N are...

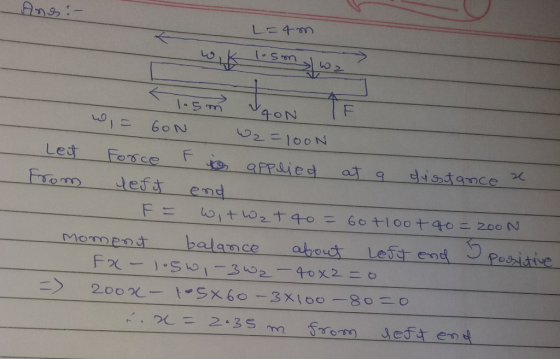

a uniform bar of weight 40N is 4 meter long. weights on 60N and 100N are placed on the bar at points which are 1.5 meter and 3 meter respectively from the left end. At what point on the bar must a single force be applied to support it in a horizontal position?
Homework Answers
