A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from...

A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from the double slits is viewed on a screen that is 3.30 m away. Over a distance of 41.0 mm there are 11.0 bright fringes with the first and last fringe situated exactly at each end of that distance. What is the spacing between the two slits?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

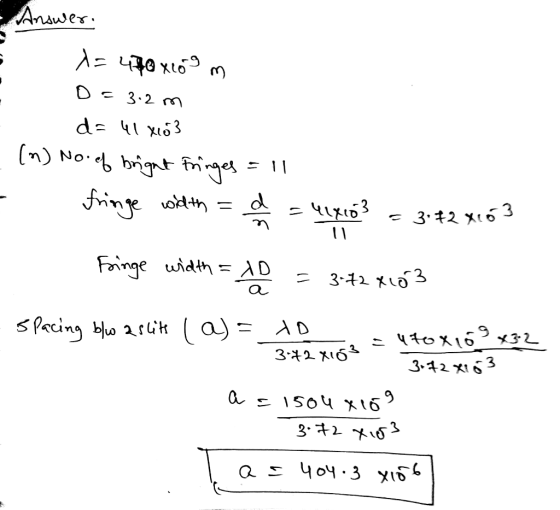

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from...

    A laser with a wavelength of 470. nm illuminates two narrow slits. The interference pattern from the double slits is viewed on a screen that is 3.30 m away. Over a distance of 41.0 mm there are 11.0 bright fringes with the first and last fringe situated exactly at each end of that distance. What is the spacing between the two slits? I have tried the following answers and they are incorrect: 4.16E-6m 416mm 0.416E-3m 0.000454m 0.416mm

  • Two narrow slits are illuminated by a laser with a wavelength of 542 nm. The interference pattern...

    Two narrow slits are illuminated by a laser with a wavelength of 542 nm. The interference pattern on a screen located x=5.10 m away shows that the fourth-order bright fringe is located y = 6.10 cm away from the central bright fringe. Calculate the distance between the two slits.The screen is now moved 2.4 m further away. What is the new distance between the central and the fourth-order bright fringe?

  • Two narrow slits are illuminated by a laser with a wavelength of 517 nm. The interference...

    Two narrow slits are illuminated by a laser with a wavelength of 517 nm. The interference pattern on a screen located x = 5.50 m away shows that the fourth-order bright fringe is located y = 9.40 cm away from the central bright fringe. Calculate the distance between the two slits. The screen is now moved 1.7 m further away. What is the new distance between the central and the fourth-order bright fringe?

  • Two narrow slits are illuminated by a laser with a wavelength of 541 nm. The interference...

    Two narrow slits are illuminated by a laser with a wavelength of 541 nm. The interference pattern on a screen located x = 4.60 m away shows that the third-order bright fringe is located y = 8.60 cm away from the central bright fringe. Calculate the distance between the two slits. a.) 8.68×10-3 cm The screen is now moved 2.3 m further away. What is the new distance between the central and the third-order bright fringe? b.) ????

  • Two narrow slits are illuminated by a laser with a wavelength of 514 nm. The interference...

    Two narrow slits are illuminated by a laser with a wavelength of 514 nm. The interference pattern on a screen located x = 4.60 m away shows that the third-order bright fringe is located y = 9.00 cm away from the central bright fringe. Calculate the distance between the two slits. 7.88×10-3 cm You are correct. Previous Tries The screen is now moved 1.1 m further away. What is the new distance between the central and the third-order bright fringe?...

  • Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits...

    Two narrow slits are used to produce a double-slit interference pattern with monochromatic light. The slits are separated by 7 mm, and the interference pattern is projected onto a screen 7 m away from the slits. The central bright fringe is at a certain spot on the screen. Using a ruler with one end placed at the central fringe, you move along the ruler passing by two more bright fringes and find that the next bright fringe is 21.5 mm...

  • Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen...

    Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern. What is the separation of the two slits? Draw the slits • Draw the screen a distance L from the slits • Draw the paths from each slit • Mark the bright locations on the screen. Start with the double slit bright fringe...

  • Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen...

    Light of wavelength 519 nm passes through two slits. In the interference pattern on a screen 4.6 m away, adjacent bright fringes are separated by 5.2 mm in the general vicinity of the center of the pattern. What is the separation of the two slits? Draw the slits • Draw the screen a distance L from the slits • Draw the paths from each slit • Mark the bright locations on the screen. Start with the double slit bright fringe...

  • Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits....

    Light from a helium-neon laser (λ = 633 nm) is used to illuminate two narrow slits. The interference pattern is observed on a screen 2.5 m behind the slits. Eleven bright fringes are seen, spanning a distance of 50 mm . What is the spacing (in mm) between the slits?

  • A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The...

    A double-slit interference experiment is performed with two very narrow slits separated by 0.19 mm. The experiment uses red light with a wavelength of 700 nm and projects the interference pattern onto a screen 5.0 m away from the slits. (a) What is the distance between two nearby bright fringes on the screen? (b) What is the distance between two nearby dark fringes on the screen? Assume these fringes are all near θ = 0. A Young's double-slit interference experiment...
