A person is standing on a stool inside a dumbwaiter, which is moving downward and slowing...
A person is standing on a stool inside a dumbwaiter, which is
moving downward and slowing down. The person’s inertia is 20kg and
the stool has an inertia of 10kg. The dumbwaiter itself has an
inertia of 40kg.

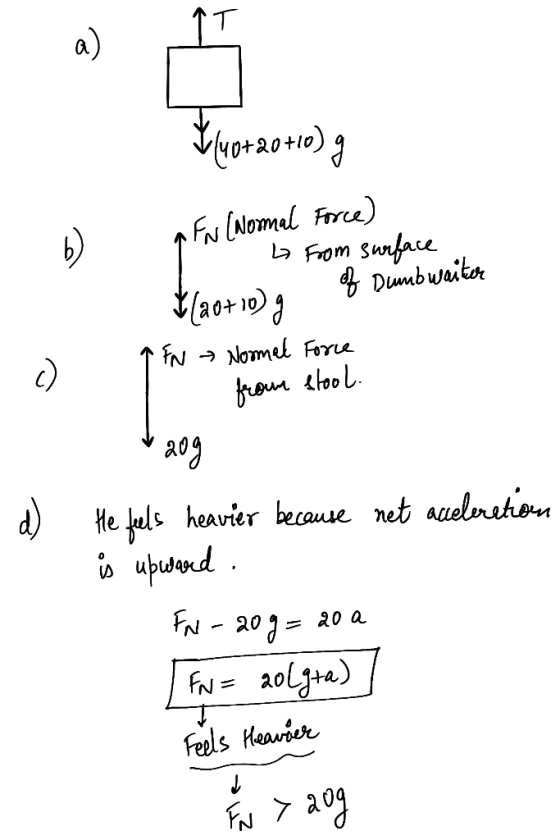

(a) Draw a free-body diagram for the dumbwaiter
(b) Draw a free-body diagram for the stool
(c) Draw a free-body diagram for the person.
(d) Does the person feel lighter or heavier at this point? Explain
your answer.
Homework Answers
