Exercise 1: BSTree operations

For this exercise you'll implement three additional methods in the binary search tree data structure completed in class, so that you have an opportunity to practice both using the recursive pattern covered in class and navigating the binary tree structure.

The methods you'll implement are:

1. count_less_than: takes an argument x, and returns the number of elements in the tree with values less than x
2. successor: takes an argument x, and returns the smallest value from the tree that is larger than x (note that x itself does not need to be in the tree); if there are no values larger than x, returns None
3. descendants: takes an argument x, and returns all descendants of x in the tree (i.e., all values in the subtree rooted at x), ordered by value; if x has no descendants or does not exist in the tree, returns an empty list

The cell below contains the (read-only) BSTree implementation from lecture. Beneath that is the cell containing the methods you will be implementing, followed by unit test cells.

In [ ]:

class BSTree:
class Node:
def __init__(self, val, left=None, right=None):
self.val = val
self.left = left
self.right = right

def __init__(self):
self.size = 0
self.root = None

def __contains__(self, val):
def contains_rec(node):
if not node:
return False
elif val < node.val:
return contains_rec(node.left)
elif val > node.val:
return contains_rec(node.right)
else:
return True
return contains_rec(self.root)

def add(self, val):
assert(val not in self)
def add_rec(node):
if not node:
  return BSTree.Node(val)
elif val < node.val:
return BSTree.Node(node.val, left=add_rec(node.left), right=node.right)
else:
return BSTree.Node(node.val, left=node.left, right=add_rec(node.right))
self.root = add_rec(self.root)
self.size += 1

def __delitem__(self, val):
assert(val in self)
def delitem_rec(node):
if val < node.val:
node.left = delitem_rec(node.left)
return node
elif val > node.val:
node.right = delitem_rec(node.right)
return node
else:
if not node.left and not node.right:
return None
elif node.left and not node.right:
return node.left
elif node.right and not node.left:
return node.right
else:
# remove the largest value from the left subtree as a replacement
# for the root value of this tree
t = node.left # refers to the candidate for removal
if not t.right:
node.val = t.val
node.left = t.left
else:
n = t
while n.right.right:
n = n.right
t = n.right
n.right = t.left
node.val = t.val
return node

self.root = delitem_rec(self.root)
self.size -= 1

def __iter__(self):
def iter_rec(node):
if node:
yield from iter_rec(node.left)
yield node.val
yield from iter_rec(node.right)

return iter_rec(self.root)

def __len__(self):
return self.size

def pprint(self, width=64):
"""Attempts to pretty-print this tree's contents."""
height = self.height()
nodes = [(self.root, 0)]
prev_level = 0
repr_str = ''
while nodes:
n,level = nodes.pop(0)
if prev_level != level:
prev_level = level
repr_str += '\n'
if not n:
if level < height-1:
nodes.extend([(None, level+1), (None, level+1)])
repr_str += '{val:^{width}}'.format(val='-', width=width//2**level)
elif n:
if n.left or level < height-1:
nodes.append((n.left, level+1))
if n.right or level < height-1:
nodes.append((n.right, level+1))
repr_str += '{val:^{width}}'.format(val=n.val, width=width//2**level)
print(repr_str)

def height(self):
"""Returns the height of the longest branch of the tree."""
def height_rec(t):
if not t:
return 0
else:
return max(1+height_rec(t.left), 1+height_rec(t.right))
return height_rec(self.root)

class BSTree(BSTree):
def count_less_than(self, x):
=============your code here======================

def successor(self, x):
    =============your code here======================


def descendants(self, x):
   =============your code here======================


Test cases...

t = BSTree()
for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:
t.add(x)

assert t.count_less_than(6) == 6
assert t.count_less_than(0) == 0
assert t.count_less_than(9) == 9
assert t.count_less_than(100) == 10
assert t.count_less_than(-100) == 0

t = BSTree()
for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:
t.add(x)

assert t.successor(6) == 7
assert t.successor(6.5) == 7
assert t.successor(4) == 5
assert t.successor(5) == 6
assert t.successor(8) == 9
assert t.successor(-1) == 0
assert t.successor(9) is None
assert t.successor(10) is None

t = BSTree()
for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:
t.add(x)

assert t.descendants(6) == [0, 1, 2, 3, 4, 5, 7, 8, 9]
assert t.descendants(3) == [0, 1, 2, 4, 5]
assert t.descendants(7) == [8, 9]
assert t.descendants(1) == [0, 2]
assert t.descendants(0) == []
assert t.descendants(8) == []
assert t.descendants(100) == []
assert t.descendants(-100) == []

Answer 1

Note:

• "Screen shot of the code" for better understanding.
• "Code to copy" for run the program in your IDE.
• Please follow the code indentation properly to avoid indentation errors.

Code Image:

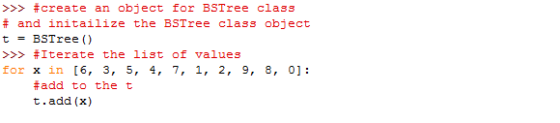

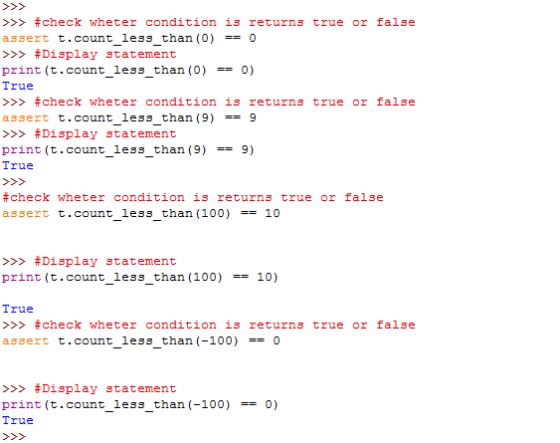

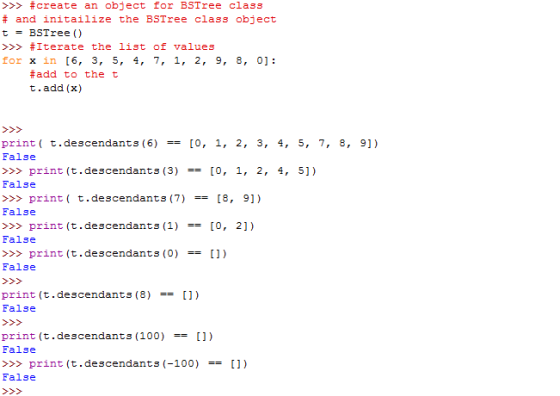

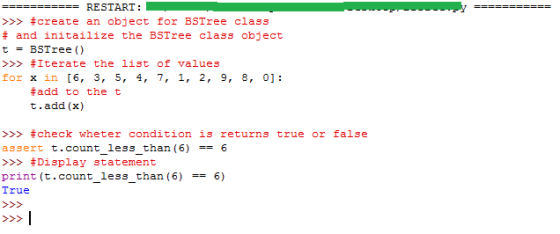

Sample Output:

Code to Copy:

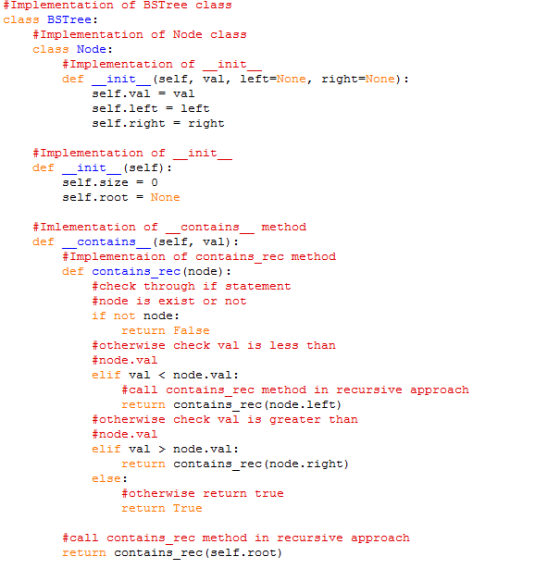

#Implementation of BSTree class

class BSTree:

    #Implementation of Node class

    class Node:

        #Implementation of __init__

        def __init__(self, val, left=None, right=None):

            self.val = val

            self.left = left

            self.right = right



    #Implementation of __init__

    def __init__(self):

        self.size = 0

        self.root = None

    #Imlementation of __contains__ method

    def __contains__(self, val):

        #Implementaion of contains_rec method

        def contains_rec(node):

            #check through if statement

            #node is exist or not

            if not node:

                return False

            #otherwise check val is less than

            #node.val

            elif val < node.val:

                #call contains_rec method in recursive approach

                return contains_rec(node.left)

            #otherwise check val is greater than

            #node.val

            elif val > node.val:

                return contains_rec(node.right)

            else:

                #otherwise return true

                return True



        #call contains_rec method in recursive approach

        return contains_rec(self.root)

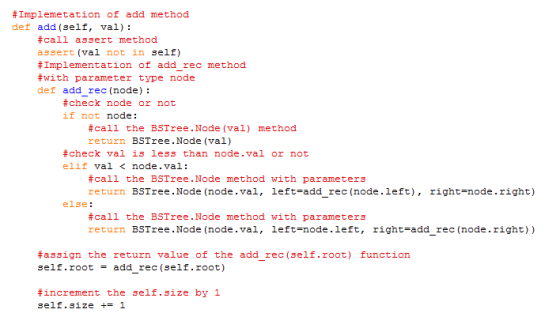

    #Implemetation of add method

    def add(self, val):

        #call assert method

        assert(val not in self)

        #Implementation of add_rec method

        #with parameter type node

        def add_rec(node):

            #check node or not

            if not node:

                #call the BSTree.Node(val) method

                return BSTree.Node(val)

            #check val is less than node.val or not

            elif val < node.val:

                #call the BSTree.Node method with parameters

                return BSTree.Node(node.val, left=add_rec(node.left), right=node.right)

            else:

                #call the BSTree.Node method with parameters

                return BSTree.Node(node.val, left=node.left, right=add_rec(node.right))



        #assign the return value of the add_rec(self.root) function

        self.root = add_rec(self.root)



        #increment the self.size by 1

        self.size += 1

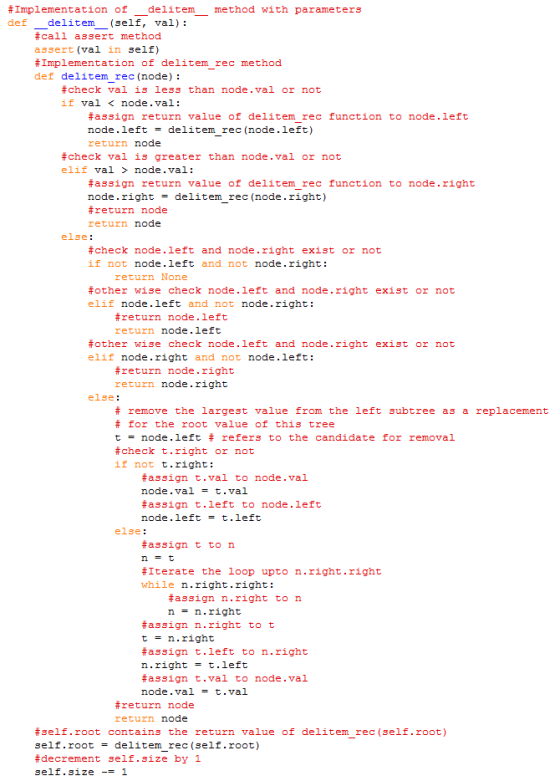

    #Implementation of __delitem__ method with parameters

    def __delitem__(self, val):

        #call assert method

        assert(val in self)

        #Implementation of delitem_rec method

      def delitem_rec(node):

            #check val is less than node.val or not

            if val < node.val:

                #assign return value of delitem_rec function to node.left

                node.left = delitem_rec(node.left)

                return node

            #check val is greater than node.val or not

            elif val > node.val:

                #assign return value of delitem_rec function to node.right

                node.right = delitem_rec(node.right)

                #return node

              return node

            else:

                #check node.left and node.right exist or not

                if not node.left and not node.right:

                    return None

                #other wise check node.left and node.right exist or not

                elif node.left and not node.right:

                    #return node.left

                    return node.left

                #other wise check node.left and node.right exist or not

                elif node.right and not node.left:

                    #return node.right

                    return node.right

                else:

                    # remove the largest value from the left subtree as a replacement

                    # for the root value of this tree

                    t = node.left # refers to the candidate for removal

                    #check t.right or not

                    if not t.right:

                        #assign t.val to node.val

                        node.val = t.val

                        #assign t.left to node.left

                        node.left = t.left

                    else:

                        #assign t to n

                        n = t

                        #Iterate the loop upto n.right.right

                        while n.right.right:

                            #assign n.right to n

                            n = n.right

                        #assign n.right to t

                        t = n.right

                        #assign t.left to n.right

                        n.right = t.left

                        #assign t.val to node.val

                        node.val = t.val

                    #return node

                    return node

        #self.root contains the return value of delitem_rec(self.root)

        self.root = delitem_rec(self.root)

        #decrement self.size by 1

        self.size -= 1

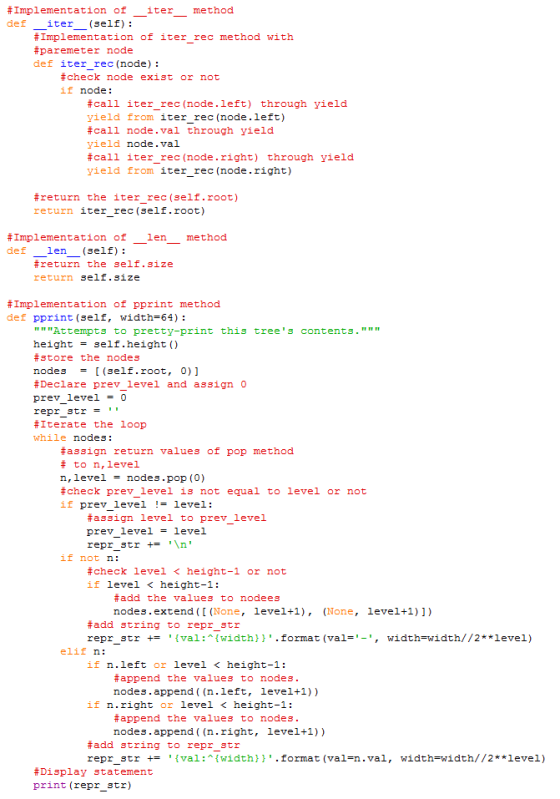

    #Implementation of __iter__ method

    def __iter__(self):

        #Implementation of iter_rec method with

        #paremeter node

        def iter_rec(node):

            #check node exist or not

            if node:

                #call iter_rec(node.left) through yield

                yield from iter_rec(node.left)

                #call node.val through yield

                yield node.val

                #call iter_rec(node.right) through yield

                yield from iter_rec(node.right)

        #return the iter_rec(self.root)

        return iter_rec(self.root)

    #Implementation of __len__ method

    def __len__(self):

        #return the self.size

        return self.size

    #Implementation of pprint method

    def pprint(self, width=64):

        """Attempts to pretty-print this tree's contents."""

        height = self.height()

        #store the nodes

        nodes = [(self.root, 0)]

        #Declare prev_level and assign 0

        prev_level = 0

        repr_str = ''

        #Iterate the loop

        while nodes:

            #assign return values of pop method

            # to n,level

            n,level = nodes.pop(0)

            #check prev_level is not equal to level or not

            if prev_level != level:

                #assign level to prev_level

                prev_level = level

                repr_str += '\n'

            if not n:

                #check level < height-1 or not

                if level < height-1:

                    #add the values to nodees

                    nodes.extend([(None, level+1), (None, level+1)])

                #add string to repr_str

                repr_str += '{val:^{width}}'.format(val='-', width=width//2**level)

            elif n:

                if n.left or level < height-1:

                    #append the values to nodes.

                    nodes.append((n.left, level+1))

                if n.right or level < height-1:

                    #append the values to nodes.

                    nodes.append((n.right, level+1))

                #add string to repr_str

                repr_str += '{val:^{width}}'.format(val=n.val, width=width//2**level)

        #Display statement

        print(repr_str)

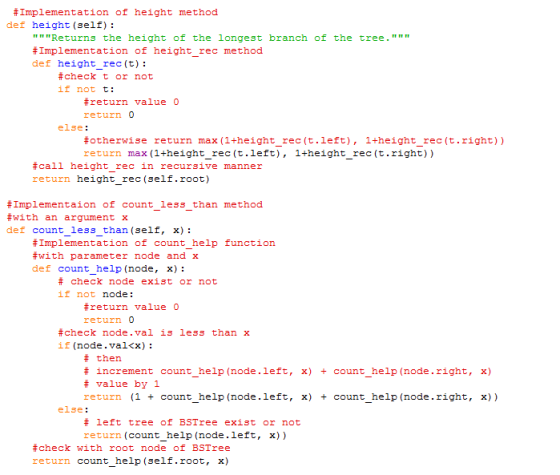

     #Implementation of height method

    def height(self):

        """Returns the height of the longest branch of the tree."""

        #Implementation of height_rec method

        def height_rec(t):

            #check t or not

            if not t:

                #return value 0

                return 0

            else:

                #otherwise return max(1+height_rec(t.left), 1+height_rec(t.right))

                return max(1+height_rec(t.left), 1+height_rec(t.right))

       #call height_rec in recursive manner

        return height_rec(self.root)

    #Implementaion of count_less_than method

    #with an argument x

    def count_less_than(self, x):

        #Implementation of count_help function

        #with parameter node and x

        def count_help(node, x):

            # check node exist or not

            if not node:

                #return value 0

                return 0

            #check node.val is less than x

            if(node.val<x):

                # then

                # increment count_help(node.left, x) + count_help(node.right, x)

                # value by 1

                return (1 + count_help(node.left, x) + count_help(node.right, x))

            else:

                # left tree of BSTree exist or not

                return(count_help(node.left, x))

        #check with root node of BSTree

        return count_help(self.root, x)

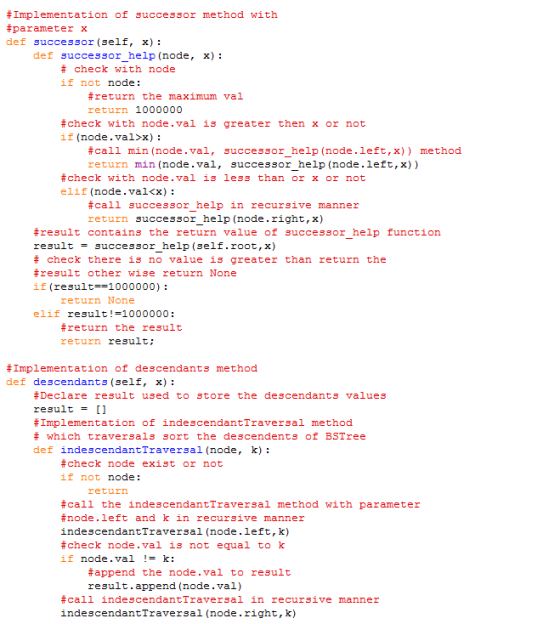

    #Implementation of successor method with

    #parameter x

    def successor(self, x):

        def successor_help(node, x):

            # check with node

            if not node:

                #return the maximum val

                return 1000000

            #check with node.val is greater then x or not

            if(node.val>x):

                #call min(node.val, successor_help(node.left,x)) method

                return min(node.val, successor_help(node.left,x))

            #check with node.val is less than or x or not

            elif(node.val<x):

                #call successor_help in recursive manner

                return successor_help(node.right,x)

        #result contains the return value of successor_help function

        result = successor_help(self.root,x)

        # check there is no value is greater than return the

        #result other wise return None

        if(result==1000000):

            return None

        elif result!=1000000:

            #return the result

            return result;

    #Implementation of descendants method

    def descendants(self, x):

        #Declare result used to store the descendants values

        result = []

        #Implementation of indescendantTraversal method

        # which traversals sort the descendents of BSTree

        def indescendantTraversal(node, k):

            #check node exist or not

            if not node:

                return

            #call the indescendantTraversal method with parameter

            #node.left and k in recursive manner

            indescendantTraversal(node.left,k)

            #check node.val is not equal to k

            if node.val != k:

                #append the node.val to result

                result.append(node.val)

            #call indescendantTraversal in recursive manner

            indescendantTraversal(node.right,k)

call the output statements:

>>> #create an object for BSTree class

# and initailize the BSTree class object

t = BSTree()

>>> #Iterate the list of values

for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:

    #add to the t

    t.add(x)

>>> #check wheter condition is returns true or false

assert t.count_less_than(6) == 6

>>> #Display statement

print(t.count_less_than(6) == 6)

>>>

>>> #check wheter condition is returns true or false

assert t.count_less_than(0) == 0

>>> #Display statement

print(t.count_less_than(0) == 0)

>>> #check wheter condition is returns true or false

assert t.count_less_than(9) == 9

>>> #Display statement

print(t.count_less_than(9) == 9)

>>>

#check wheter condition is returns true or false

assert t.count_less_than(100) == 10

>>> #Display statement

print(t.count_less_than(100) == 10)

>>> #check wheter condition is returns true or false

assert t.count_less_than(-100) == 0

>>> #Display statement

print(t.count_less_than(-100) == 0)

>>>

>>>

>>> #create an object for BSTree class

# and initailize the BSTree class object

t = BSTree()

>>> #Iterate the list of values

for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:

    #add to the t

    t.add(x)

>>> #Display statement

print(t.successor(6) == 7)

>>> #Display statement

print(t.successor(6) == 7)

>>> #Display statement

print(t.successor(6) == 7)

>>> #Display statement

print(t.successor(4) == 5)

>>> #Display statement

print(t.successor(5) == 6)

>>> #Display statement

print(t.successor(8) == 9)

>>> #Display statement

print(t.successor(-1) == 0)

True

>>> #Display statement

print(t.successor(9) is None)

>>> print(t.successor(9) is None)

>>>

>>> #create an object for BSTree class

# and initailize the BSTree class object

t = BSTree()

>>> #Iterate the list of values

for x in [6, 3, 5, 4, 7, 1, 2, 9, 8, 0]:

    #add to the t

    t.add(x)



>>>

print( t.descendants(6) == [0, 1, 2, 3, 4, 5, 7, 8, 9])

>>> print(t.descendants(3) == [0, 1, 2, 4, 5])

>>> print( t.descendants(7) == [8, 9])

>>> print(t.descendants(1) == [0, 2])

>>> print(t.descendants(0) == [])

>>>

print(t.descendants(8) == [])

>>>

print(t.descendants(100) == [])

>>> print(t.descendants(-100) == [])

>>>
