Water flows through a rectangular channel 7.3 meter wide, at a rate of 3.1 m^3/s. with...

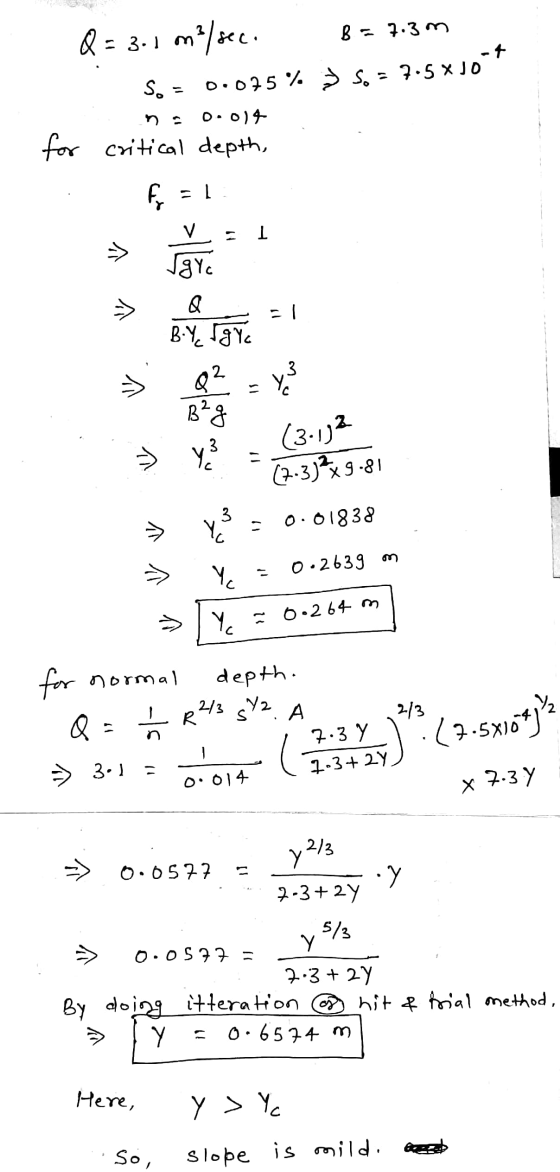

Water flows through a rectangular channel 7.3 meter wide, at a rate of 3.1 m^3/s. with a depth of 3 meters. The channel is lined with rough concrete and has a slope of 0.075 %. Calculate the critical depth, and normal depth and classify the slope. Manning's number for the channel is 0.014.
Homework Answers
Add Answer to:
Water flows through a rectangular channel 7.3 meter wide, at a
rate of 3.1 m^3/s. with...
A 8 m wide rectangular channel is carrying water at 180 m3/s
A 8 m wide rectangular channel is carrying water at 180 m3/s. The channel is constructed of concrete (Manning's N = 0.013) and is laid at a slope of 0.28 %. Find the normal depth
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec
Water flows in a 100 ft wide rectangular channel at flow rate = 300 ft3/sec. Manning's n = 0.015 and the bottom slope = 0.002. Calculate/answer the following: a. the uniform (normal) flow depth assuming the channel is wide and shallow. b. the critical flow depth. c. the flow depth upstream of a hydraulic jump with downstream depth = normal depth. d. the type of channel slope at the given normal depth: mild, critical, or steep (select one). f. the basis for your answer in...
Water flows down a rectangular channel that has a width of 2.2 m, a Manning's n...
Water flows down a rectangular channel that has a width of 2.2 m, a Manning's n of 0.019 and a slope of 1 in 200. Calculate the discharge in the channel when the depth of flow is 0.5 m, 1.0 m, 2.0 m, and 4.0 m. Plot a graph of depth against discharge and comment on its shape, [10 marks] A wide channel has a Manning's number = 0.021, a longitudinal bed slope of 1:250 and conveys 0.XX m3/s/m of...
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from...
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from a "steep slope" to a 'mild slope", creating a hydraulic jump. The upstream depth of flow is 1.20 m Find the following: (a) the downstream depth of flow, (b) the energy loss in the jump, anid (c) the upstream and downstream velocities 2)
2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a...
2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a normal depth of 2 m. In a part of the channel, the channel width is expanded to 5 m. The local energy loss due to this expansion is about 10% of the upstream velocity head. If the channel slope is 0.03% and the Manning roughness coefficient is about 0.012, calculate the water depth over this transition and show the situation with a simple sketch.
A 1.7 m wide, 4000 m long rectangular channel carries 1.6 m/s of water. The depth...
A 1.7 m wide, 4000 m long rectangular channel carries 1.6 m/s of water. The depth of the flow is 0.9 m. The channel is constructed from rough-formed concrete with a roughness coefficient of n-0.015. What is the difference in elevation between the two ends of the channel?
A 12-ft-wide rectangular channel conveys 3,030 cfs. Determine the normal and critical depths for the concrete...
A 12-ft-wide rectangular channel conveys 3,030 cfs. Determine the normal and critical depths for the concrete channel (1% slope). Also determine the flow classification (critical, supercritical, or subcritical) when the channel flows at normal depth.
02) A long rectangular channel is 3 m wide with Manning roughness of 0.018 and bottom...
02) A long rectangular channel is 3 m wide with Manning roughness of 0.018 and bottom slope of 2%. The channel runs downstream from a reservoir into a free overfall at its end. In the reservoir the water surface level is 1.35 m above the bed of the channel at the entrance. Ignore local loss at entrance. a) Calculate the critical depth, the discharge and the normal depth of the channel. (5/8) b) Sketch the water surface profile in the...
Water flows through the 4-ft wide rectangular channel at a rate 30 ft3/s. The depth of...
Water flows through the 4-ft wide rectangular channel at a rate 30 ft3/s. The depth of water upstream the potential hydraulic jump is 1 ft. Show a labelled illustration of the channel based on the information provided. Determine whether the hydraulic jump will form or occur. If the jump occurs, evaluate its depth, y2 and its corresponding Froude number. Evaluate the energy head loss in the jump and relative to initial energy head, do you think this head loss is...
please show all the steps thank you 2. Water flowing at the normal depth in a rectangular concrete channel that is 12 m wide encounters an obstruction, causing the water level to rise above the no...
please show all the steps
thank you
2. Water flowing at the normal depth in a rectangular concrete channel that is 12 m wide encounters an obstruction, causing the water level to rise above the normal depth at the obstruction and for some distance upstream. The water discharge is 126 m3/s, and the channel bottom slope is 0.00086. If the depth of water just upstream from the obstruction (yo) is 4.55 m, find the distance upstream to the point where...
Water flows down a rectangular channel that has a width of 2.2 m, a Manning's n of 0.019 and a slope of 1 in 200. Calculate the discharge in the channel when the depth of flow is 0.5 m, 1.0 m, 2.0 m, and 4.0 m. Plot a graph of depth against discharge and comment on its shape, [10 marks] A wide channel has a Manning's number = 0.021, a longitudinal bed slope of 1:250 and conveys 0.XX m3/s/m of...
water flows at a rate of 20 m3/s through a rectangular channel 4.0 m wide from a "steep slope" to a 'mild slope", creating a hydraulic jump. The upstream depth of flow is 1.20 m Find the following: (a) the downstream depth of flow, (b) the energy loss in the jump, anid (c) the upstream and downstream velocities 2)
2. A 2.5 m wide rectangular channel conveys m wide rectangular channel conveys water at a normal depth of 2 m. In a part of the channel, the channel width is expanded to 5 m. The local energy loss due to this expansion is about 10% of the upstream velocity head. If the channel slope is 0.03% and the Manning roughness coefficient is about 0.012, calculate the water depth over this transition and show the situation with a simple sketch.
A 1.7 m wide, 4000 m long rectangular channel carries 1.6 m/s of water. The depth of the flow is 0.9 m. The channel is constructed from rough-formed concrete with a roughness coefficient of n-0.015. What is the difference in elevation between the two ends of the channel?
02) A long rectangular channel is 3 m wide with Manning roughness of 0.018 and bottom slope of 2%. The channel runs downstream from a reservoir into a free overfall at its end. In the reservoir the water surface level is 1.35 m above the bed of the channel at the entrance. Ignore local loss at entrance. a) Calculate the critical depth, the discharge and the normal depth of the channel. (5/8) b) Sketch the water surface profile in the...
please show all the steps
thank you
2. Water flowing at the normal depth in a rectangular concrete channel that is 12 m wide encounters an obstruction, causing the water level to rise above the normal depth at the obstruction and for some distance upstream. The water discharge is 126 m3/s, and the channel bottom slope is 0.00086. If the depth of water just upstream from the obstruction (yo) is 4.55 m, find the distance upstream to the point where...
