A horizontal wire is at y = 0. Current travels in the +x direction. The magnetic...

Question

Question

A horizontal wire is at y = 0. Current travels in the +x direction. The magnetic field at y = 0.05 is 0.01 T.

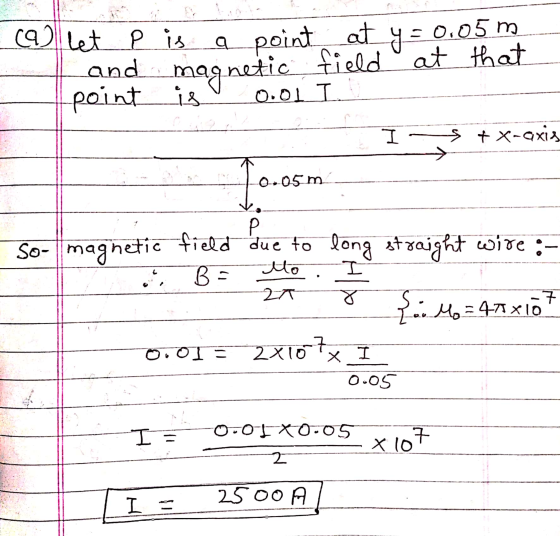

1. What is the current in the wire?

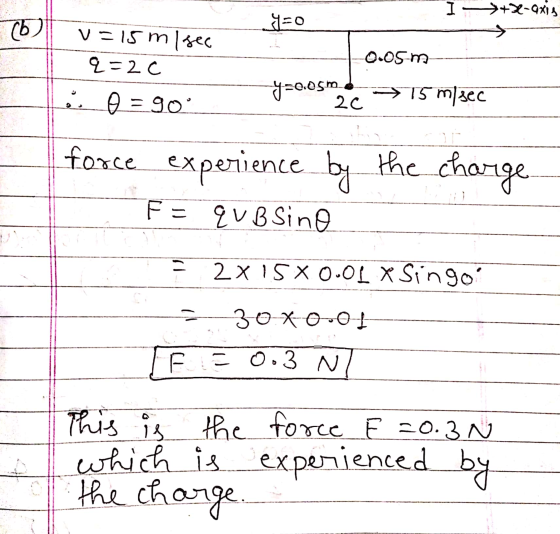

2. A 2 C charge is at y = 0.05 m . Its velocity is 15 m/s in the +x direction. What is the force in the charge?

3. What is the direction of the force?

science physics

Answer 1

Answer #1

Answer 2
