How do we find the slope distance, given the horizontal distance and the zenith angle? For...
How do we find the slope distance, given the horizontal distance and the zenith angle?
For example,
From Station 40 to Station 41
HD=148.04 ft
ZA=89.4013
Homework Answers

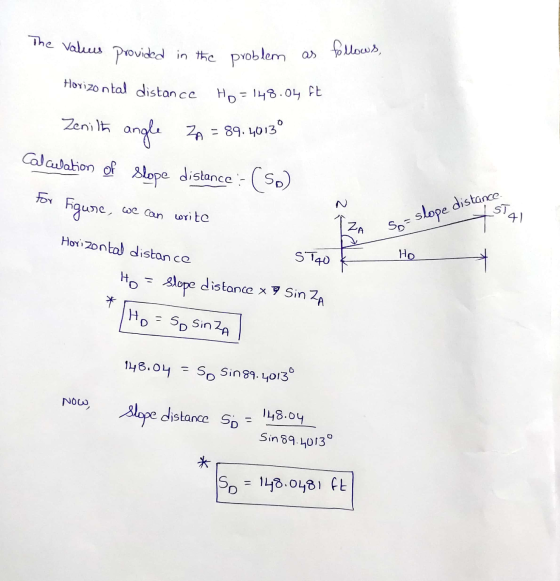

Slope
distance for given horizontal distance and zenith angle is
148.0481ft.
Add Answer to:
How do we find the slope distance, given the horizontal distance
and the zenith angle?
For...
