a. What double precision floating point number is represented by the following 64-bit binary? Show your...

Question

Question

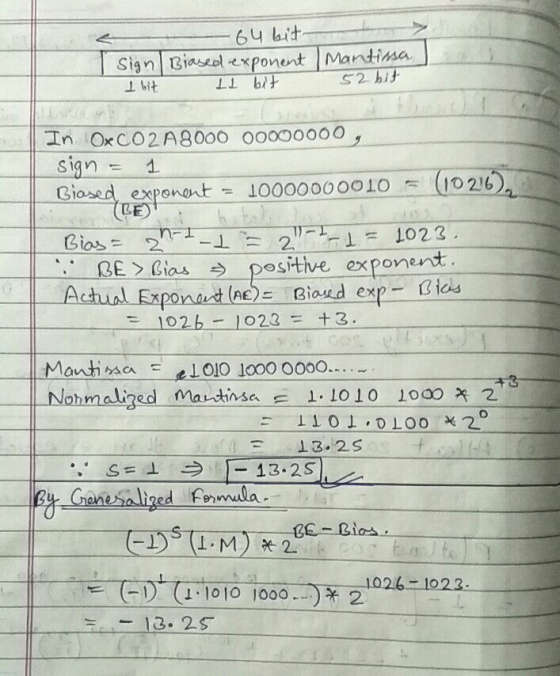

a. What double precision floating point number is represented by the following 64-bit binary? Show your work.

0xC02A8000 00000000

1100 0000 0010 1010 1000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000

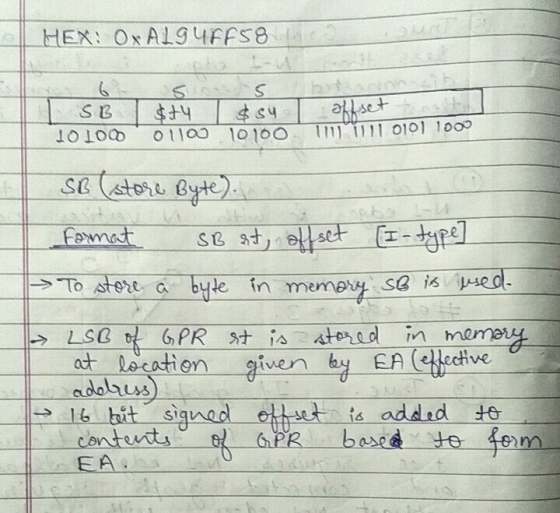

b.. What instruction is represented by the binary? Show your work:

0xA194FF58

1 0 1 0|0 0 0 1|1 0 0 1|0 1 0 0|1 1 1 1|1 1 1 1|0 1 0 1|1 0 0 0

engineering Computer-Science

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern...

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1100 0000 0011 0000 0000 0000 0000 0000
Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern...

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1100 0000 0011 0000 0000 0000 0000 0000
Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern...

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1100 0000 0011 0000 0000 0000 0000 0000

Determine the single precision and double precision machine representation of -200.75 single: ________________________(16) Double: ________________________ (16)...

Determine the single precision and double precision machine representation of -200.75 single: ________________________(16) Double: ________________________ (16) What is is the decimal number that corresponds to the following IEEE 32 bit floating point number? 1100 0001 0010 1000 0000 0000 0000 0000 would you mind showing me the steps how to solve this problem?
Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern...

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1 1 0 0 0 0 0 0 1 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Question 18 Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1 100 0000 1101 0000 0000 0000...
Assuming IEEE 754 single-precision floating-point number representation

Assuming IEEE 754 single-precision floating-point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1100 0001 0110 0000 0000 0000 0000 0000

c. Wh at is the decimal number that corresponds to the following IEEE 32-bit floating point...

c. Wh at is the decimal number that corresponds to the following IEEE 32-bit floating point number? 1100 0001 0010 1000 0000 0000 0000 0000 d. What is the decimal number that corresponds to the following IEEE 32-bit floating point number? o o1111111 00000000000000000000000
10 p Assuming IEEE 754 single-precision floating point number representation, calculate the floating point number the...

10 p Assuming IEEE 754 single-precision floating point number representation, calculate the floating point number the following bit pattern represent. Show your work to get credit. 1100 0001 0110 0000 0000 0000 0000 0000 Τ Τ Τ. Arial (1200
1 please IEEE-754 Floating point conversions problems (assume 32 bit machine): 1. For IEEE 754 single-precision...

1 please IEEE-754 Floating point conversions problems (assume 32 bit machine): 1. For IEEE 754 single-precision floating point, write the hexadecimal representation for the following decimal values: a. 27.1015625 b.-1 2. For IEEE 754 single-precision floating point, what is the decimal number, whose hexadecimal representation is the following? a. 4280 0000 b. 7FE4 0000 c. 0061 0000 3. For IEEE-754 single-precision floating point practice the following problem: Suppose X and Y are representing single precision numbers as follows: X 0100...

1. Compute the decimal value for the following bit pattern, assuming it is a single-precision floating...

1. Compute the decimal value for the following bit pattern, assuming it is a single-precision floating point number (show major steps): 1100 0011 0001 0010 0100 1001 0010 0100 2. Convert the decimal -2118.75 into single-precision floating point number (show major steps). 3. Assume -75 and -122 are signed decimal integers stored in 8-bit sign-magnitude binary format. Calculate -75 + -122. Is there overflow, underflow, or neither?
