A flat circular coil with 104 turns, a radius of 3.01 x 10-2 m, and a...

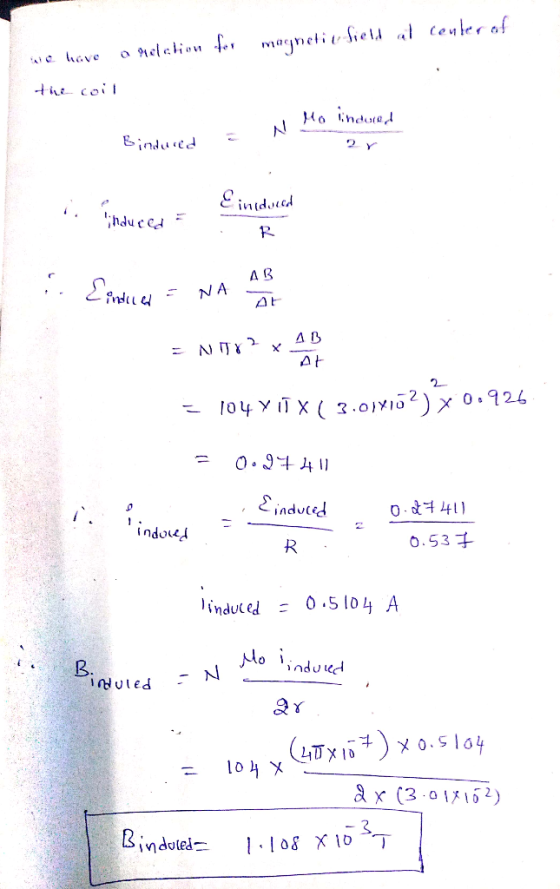

A flat circular coil with 104 turns, a radius of 3.01 x 10-2 m, and a resistance of 0.537 Ω is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of ΔB/Δt = 0.926 T/s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at the center of the coil that is produced by the induced current.
Homework Answers
Add Answer to:
A flat circular coil with 104 turns, a radius of 3.01 x 10-2 m,
and a...
A flat circular coil with 178 turns, a radius of 4.94 x 10-2 m, and a...
A flat circular coil with 178 turns, a radius of 4.94 x 10-2 m, and a resistance of 0.303 Ω is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of ΔB/Δt = 0.508 T/s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at the center of the coil that is produced by the induced...
A flat circular coil with 170 turns, a radius of 2.93 x 10-2 m, and a...
A flat circular coil with 170 turns, a radius of 2.93 x 10-2 m, and a resistance of 0.651 Ω is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of ΔB/Δt = 0.589 T/s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at the center of the coil that is produced by the induced...
A flat circular coil with 167 turns, a radius of 5.73 x 10-2 m, and a...
A flat circular coil with 167 turns, a radius of 5.73 x 10-2 m, and a resistance of 0.228 2 is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of AB/At = 0.628 T/s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at the center of the coil that is produced by the induced...
Chapter 22 - Electromagnetic Induction 4-A flat circular coil with N = 105 turns, a radius...
Chapter 22 - Electromagnetic Induction 4-A flat circular coil with N = 105 turns, a radius of r = 4 × 10-2 m, and a resistance of R 0.480 ? is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of AB = 0.783 T s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at...
A circular coil of wire with radius 4 cm and 20 turns is placed in a...
A circular coil of wire with radius 4 cm and 20 turns is placed in a uniform magnetic field of magnitude 0.3 T. The magnetic field is parallel to the area vector; i.e. perpendicular to the plane of the coil. a) What is the magnetic flux through the coil? b) The magnetic field is decreased to 0 T in 0.1 s. What is the magnitude of the emf induced in the coil during this time interval? c) If the coil...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? 3.5 A 2.9 A 1.4 A 6.3 A 0.74 A
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? 3.5 A O 2.9 A O 1.4 A 6.3 A O 0.74 A
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? O 3.5 A O 2.9 A O 1.4 A O 6.3 A O 0.74 A
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? O 3.5 A O 2.9 A O 1.4 A O 6.3 O 0.74 A
A circular coil of wire with radius 2 cm and 60 turns is placed in a...
A circular coil of wire with radius 2 cm and 60 turns is placed in a uniform magnetic field of magnitude 0.8 T. The magnetic field is parallel to the area vector; i.e. perpendicular to the plane of the coil. a) What is the magnetic flux through the coil? b) The magnetic field is decreased to 0 T in 0.1 s. What is the magnitude of the emf induced in the coil during this time interval? c) If the coil...
A flat circular coil with 167 turns, a radius of 5.73 x 10-2 m, and a resistance of 0.228 2 is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of AB/At = 0.628 T/s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at the center of the coil that is produced by the induced...
Chapter 22 - Electromagnetic Induction 4-A flat circular coil with N = 105 turns, a radius of r = 4 × 10-2 m, and a resistance of R 0.480 ? is exposed to an external magnetic field that is directed perpendicular to the plane of the coil. The magnitude of the external magnetic field is changing at a rate of AB = 0.783 T s, thereby inducing a current in the coil. Find the magnitude of the magnetic field at...
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? 3.5 A O 2.9 A O 1.4 A 6.3 A O 0.74 A
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? O 3.5 A O 2.9 A O 1.4 A O 6.3 A O 0.74 A
A flat circular coil of 1 cm radius consists of 5 tightly packed turns and is rotated at 10 revolutions per second about an axis that is perpendicular to a uniform magnetic field of magnitude 3.5 T. If the coil has an internal resistance of 0.25 Ohms, what is the magnitude of the peak current induced in the coil? O 3.5 A O 2.9 A O 1.4 A O 6.3 O 0.74 A
A circular coil of wire with radius 2 cm and 60 turns is placed in a uniform magnetic field of magnitude 0.8 T. The magnetic field is parallel to the area vector; i.e. perpendicular to the plane of the coil. a) What is the magnetic flux through the coil? b) The magnetic field is decreased to 0 T in 0.1 s. What is the magnitude of the emf induced in the coil during this time interval? c) If the coil...
