A 2400-kg airplane pulls two gliders, the first of mass 330 kg and the second of...
A 2400-kg airplane pulls two gliders, the first of mass 330 kg and the second of mass 280 kg, down the runway with an acceleration of 1.3 m/s2 (Figure 1). Neglect the mass of the two ropes and any frictional forces.
Part A: Determine the magnitude of horizontal thrust of the plane's propeller.
Part B: Determine the magnitude of the tension force in the first rope.
Part C: Determine the magnitude of the tension force in the second rope.
Part D: Determine the magnitude of the net force on the first glider.

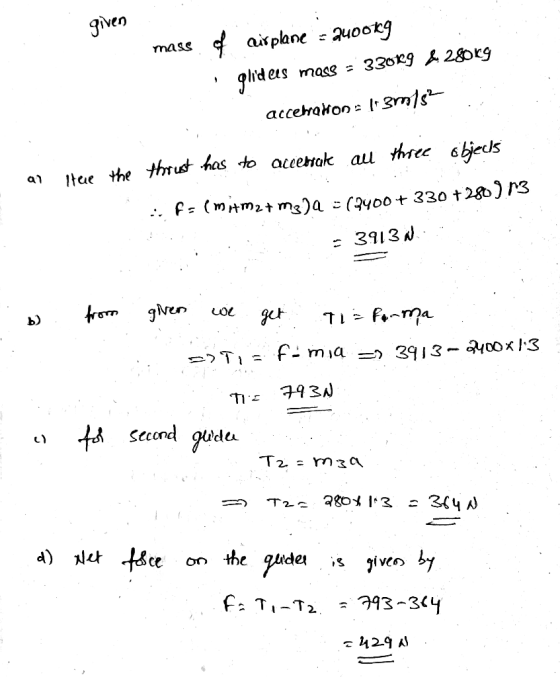

Homework Answers
