Three long, parallel wires are 2.48 cm from one another (Looking along them, they would lie...
Three long, parallel wires are 2.48 cm from one another (Looking along them, they would lie at the three corners of an equilateral triangle.) The current in each wire is 9.8 Amperes, but it's direction in the top wire is in the opposite direction of the other two. Find the total force on the top wire, in millinewtons.
final answer rounded to 3 sig figs

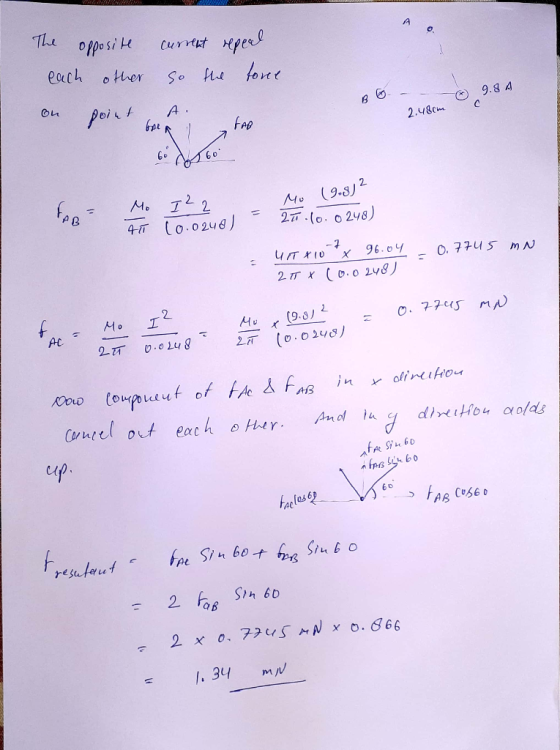

Homework Answers
If your query is been resolved please upvote and if you have any doubt please comment down below.
Thanks and regards
