A Swift high-efficiency cyclone is being compared with a Swift high-throughput cyclone of the same diameter....
Homework Answers

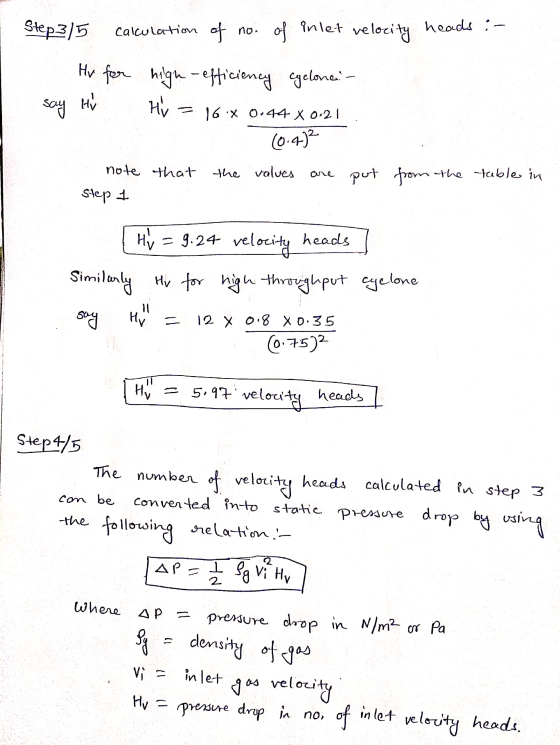

Here are the dimensions of the above mentioned cyclones
| Dimensions | high efficiency cyclones | conventional cyclones | high throughput cyclones |
|---|---|---|---|
| Body diameter D/D | 1 | 1 | 1 |
| Height of inlet H/D | 0.44 | 0.5 | 0.8 |
| Width of inlet W/D | 0.21 | 0.25 | 0.35 |
| Diameter of exit gas De/D | 0.4 | 0.5 | 0.75 |

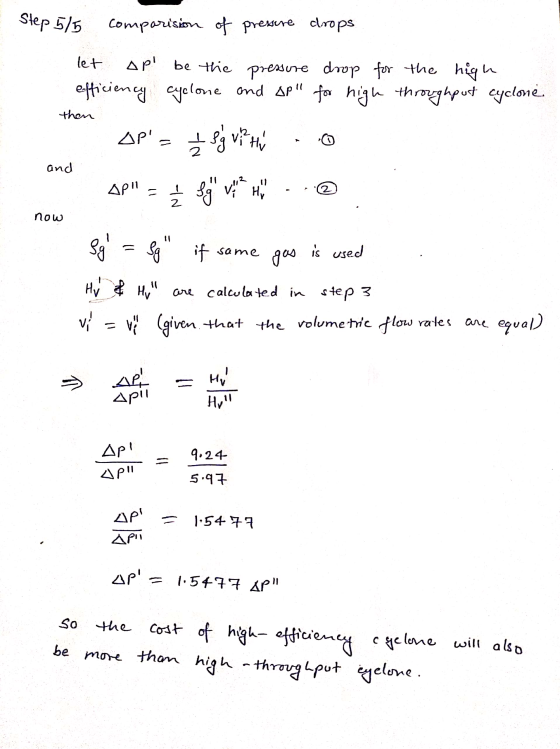

Note
that we are not asked to estimate the cost of the cyclones. We are
only asked to estimate and compare the pressure drops for both the
cyclones which we have done already.
Note
that we are not asked to estimate the cost of the cyclones. We are
only asked to estimate and compare the pressure drops for both the
cyclones which we have done already.Add Answer to:
A Swift high-efficiency cyclone is being compared with a Swift
high-throughput cyclone of the same diameter....
