An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.5 cm and outer radius...

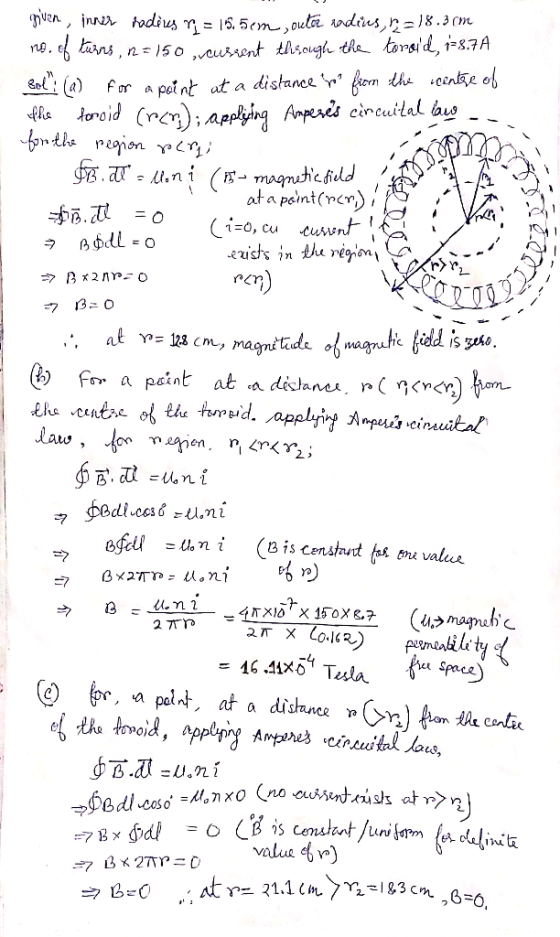

An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.5 cm and outer radius r2 = 18.3 cm . The solenoid has 150 turns and carries a current of 8.70 A .
a) What is the magnitude of the magnetic field at 12.8 cm from the center of the torus?
b) What is the magnitude of the magnetic field at 16.2 cm from the center of the torus?
C) What is the magnitude of the magnetic field at 21.1 cm from the center of the torus?
Homework Answers
Add Answer to:
An ideal toroidal solenoid (Figure 1) has inner radius r1 = 15.5
cm and outer radius...
A toroidal solenoid has inner radius 15cm and outer radius 20cm. The solenoid has 250 turns. Advice: Work through example 28.10 first.
A toroidal solenoid has inner radius 15cm and outer radius 20cm. The solenoid has 250 turns. Advice: Work through example 28.10 first. a) The magnetic field at 18cm from the center of the torus is 3mT. How large is the current that the coil carries? b) What is the magnitude of the magnetic field at 10cm from the center of the torus? Please explain your answer using Ampere's law without any calculation. c) What is the magnitude of the magnetic...
A toroidal solenoid with N turns of wire, has inner radius a, outer radius b, and...
A toroidal solenoid with N turns of wire, has inner radius a, outer radius b, and a rectangular cross section of height h. Make a diagram of the toroid and its cross section and show that the self-inductance of this solenoid is given by L = [µ0N^2h/( 2π )]*ln(b/a).
A solenoid has 495 closely spaced turns, a length of 12.0 cm, a radius of 3.00...
A solenoid has 495 closely spaced turns, a length of 12.0 cm, a radius of 3.00 cm, and carries a current of 18.5 A. Determine the magnitude of the magnetic flux through the following. 12R FR R2 (a) the disk-shaped area of radius twice that of the solenoid that is perpendicular to and centered on the axis of the solenoid as shown in the figure What is the definition of magnetic flux through a region? For this part, what is...
3 The magnetic field inside a toroidal solenoid is not uniform as for the long, straight...
3 The magnetic field inside a toroidal solenoid is not uniform as for the long, straight solenoid. Over the cross-sectional area of the toroid the magnetic field is stronger near the inner HoNI radius of the torus and somewhat weaker near the outer radius according to B(r) 2Tr So we cannot technically use the simple expression P2 = BAfor the flux through one turn of wire. Nevertheless, the textbook uses an approximate constant value for an equivalent uniform magnetic field...
1.) The inner and outer radii of a toroid are 1.50 cm and 3.30 cm. The...
1.) The inner and outer radii of a toroid are 1.50 cm and 3.30 cm. The toroid has 61 turns and carries a current of 2.20 A. What are the strongest and weakest magnetic fields produced by this toroid? (Enter the magnitudes.) T(strongest): T(weakest): 2.) The magnitude of the magnetic field at the center of a 23.0-cm-long solenoid with 600.0 turns is 2.10 mT. What is the current in the windings of the solenoid?
An ideal toroid has inner radius a and outer radius b. The toroid has turns and...
An ideal toroid has inner radius a and outer radius b. The toroid has turns and carries a current I. At which distancer from the center con the toroid is the magnetic field different from zero? a<r<b Orca The magnetic field is different of zero every where. Or>
An air-filled toroidal solenoid has a mean radius of 15.5 cm and a cross-sectional area of...
An air-filled toroidal solenoid has a mean radius of 15.5 cm and a cross-sectional area of 5.00 cm^2 When the current is 12.5A, the energy stored is 0.395J How many turns does the winding have?
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0...
A conducting spherical shell has inner radius r1 = 7.0 cm, outer radius r2 = 12.0 cm. A +3 uC point charge is placed at the center. A charge of Q=+4 uC is put on the conductor. a) What is the charge on the inner and outer surface of the shell? b)What is the electric field on the inside and outside of the shell?
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its...
A long, hollow cylinder with inner radius R1 and outer radius R2 carries current along its length. The current is uniformly distributed over the cross-sectional area of the cylinder and has current density J. 1. Find the magnetic-field magnitude B as a function of the distance r from the conductor axis for points inside the hollow interior (r<R1). Express your answer in terms of the variables R1, R2, J, and r. 2. Find the magnetic-field magnitude B as a function...
A spherical, non-conducting shell of inner radius = 10 cm and outer radius = 15 cm...
A spherical, non-conducting shell of inner radius = 10 cm and outer radius = 15 cm carries a total charge Q = 16.2 μC distributed uniformly throughout the volume of the shell. What is the magnitude of the electric field at a distance r = 11.2 cm from the center of the shell? (ε0 = 8.85 × 10-12 C2/N ∙ m2) (Give your answer to the nearest 0.01 MN/C)
A solenoid has 495 closely spaced turns, a length of 12.0 cm, a radius of 3.00 cm, and carries a current of 18.5 A. Determine the magnitude of the magnetic flux through the following. 12R FR R2 (a) the disk-shaped area of radius twice that of the solenoid that is perpendicular to and centered on the axis of the solenoid as shown in the figure What is the definition of magnetic flux through a region? For this part, what is...
3 The magnetic field inside a toroidal solenoid is not uniform as for the long, straight solenoid. Over the cross-sectional area of the toroid the magnetic field is stronger near the inner HoNI radius of the torus and somewhat weaker near the outer radius according to B(r) 2Tr So we cannot technically use the simple expression P2 = BAfor the flux through one turn of wire. Nevertheless, the textbook uses an approximate constant value for an equivalent uniform magnetic field...
An ideal toroid has inner radius a and outer radius b. The toroid has turns and carries a current I. At which distancer from the center con the toroid is the magnetic field different from zero? a<r<b Orca The magnetic field is different of zero every where. Or>
