An object is placed 20 cm in front of a concave spherical mirror. Give the general...

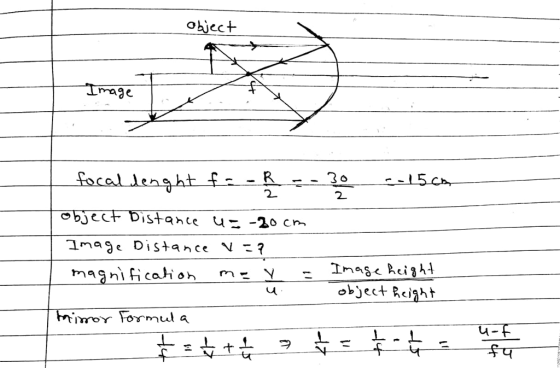

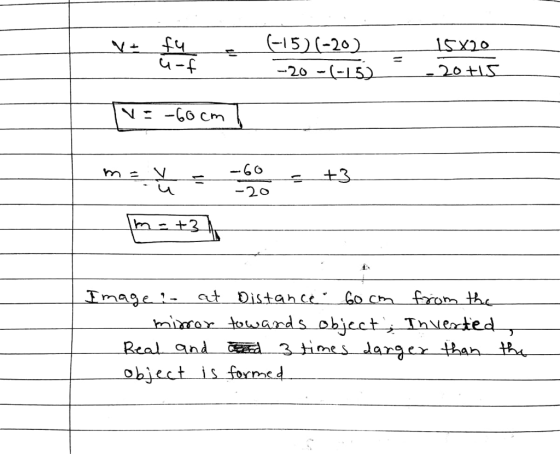

An object is placed 20 cm in front of a concave spherical mirror. Give the general characteristics of the image formed if the radius of curvature for the mirror is R = 30 cm
Homework Answers
Add Answer to:
An object is placed 20 cm in front of a concave
spherical mirror. Give the general...
An object 2.35 cm tall is placed 2.60 cm in front of a spherical concave mirror...
An object 2.35 cm tall is placed 2.60 cm in front of a spherical concave mirror with a radius of curvature equal to 10.4 cm. Calculate the image distance ?I. Calculate the image height ℎI.
An object 3 cm high is placed 40 cm in front of a concave spherical mirror with radius...
An object 3 cm high is placed 40 cm in front of a concave spherical mirror with radius of curvature of 60 centimeters and an image of the object is observed. part a Make a drawing of the system part b Explain how you would calculate the focal length and the position of the image. part c Calculate the height of the image. part d Indicate if the image is real or virtual and if it is upright or inverted.
An object 2.0 cm tall is placed at different locations in front of a concave mirror...
An object 2.0 cm tall is placed at different locations in front of a concave mirror whose radius of curvature is 30 cm. Determine the location of the image and its characteristics when the object distance is 30 cm and 10 cm using (a) The ray diagrams (Note: Draw the ray diagram on a sheet paper using Parallel ray, Chief ray and focal ray) (b) The mirror equation
An object 2.55 cm tall is placed 3.05 cm in front of a spherical concave mirror...
An object 2.55 cm tall is placed 3.05 cm in front of a spherical concave mirror with a radius of curvature equal to 8.90 cm. In the diagrams, the solid arrow represents the object, whereas the dashed arrow represents the image Select the correct ray diagram o ALLOOOO All Questions completed out of 22 014 - Save Answe of 22 > Calculate the image distance du dy Calculate the image heighth
A lamp is placed 15 cm in front of a concave spherical mirror that forms an...
A lamp is placed 15 cm in front of a concave spherical mirror that forms an image of the filament on a screen placed 2.85m from the mirror. What is the radius of curvature of the mirror? If the lamp filament is 5.00 mm high, how tall is its image? What is the lateral magnification?
An object is placed in front of a concave mirror with a focal length of 5...
An object is placed in front of a concave mirror with a focal length of 5 cm . The image formed is at a distance of 7.5 cm behind the mirror. The magnification factor m= An object is placed in front of a concave mirror with a focal length of 10 cm . The image formed is at a distance of 20 cm on the same side of the mirror. The magnification factor m= An object is placed in front...
An object is 11 cm in front of a concave spherical mirror with focal length of...
An object is 11 cm in front of a concave spherical mirror with focal length of magnitude 5.0 cm. What are (a) the radius of curvature of the mirror (including sign), (b) the image distance (including sign), and (c) the magnification (including sign)?
an object is placed 6.3 cm in front of a concave mirror. The magnification is 2.5....
an object is placed 6.3 cm in front of a concave mirror. The magnification is 2.5. if a real image is produced, what is the radius of curvature of the mirror?
An object of height h0 sits 105 cm in front of a concave spherical mirror whose...
An object of height h0 sits 105 cm in front of a concave spherical mirror whose radius of curvature has a value of 80 cm. what is the image distance using the mirror equation?
The magnitude of the radius of curvature of a concave spherical mirror is 34.0 cm. a....
The magnitude of the radius of curvature of a concave spherical mirror is 34.0 cm. a. What are the location and magnification of the image of an object placed 60.0 cm in front of the mirror? Is this image real or virtual? Is it upright or inverted? b. What are the location and magnification of the image of an object placed 34.0 cm in front of the mirror? Is this image real or virtual? Is it upright or inverted?
An object 2.55 cm tall is placed 3.05 cm in front of a spherical concave mirror with a radius of curvature equal to 8.90 cm. In the diagrams, the solid arrow represents the object, whereas the dashed arrow represents the image Select the correct ray diagram o ALLOOOO All Questions completed out of 22 014 - Save Answe of 22 > Calculate the image distance du dy Calculate the image heighth
An object is 11 cm in front of a concave spherical mirror with focal length of magnitude 5.0 cm. What are (a) the radius of curvature of the mirror (including sign), (b) the image distance (including sign), and (c) the magnification (including sign)?
