A circuit includes a capacitor that charges over time. If the resistance of the circuit is...
A circuit includes a capacitor that charges over time. If the resistance of the circuit is 3 ohms, the capacitance is 2.2 F, and the potential of the circuit is 5 volts, what is the charge on the capacitor after an infinite amount of time?
-
A : 11 C
-
B : 0.80 C
-
C : 0 C
-
D :0.87 C

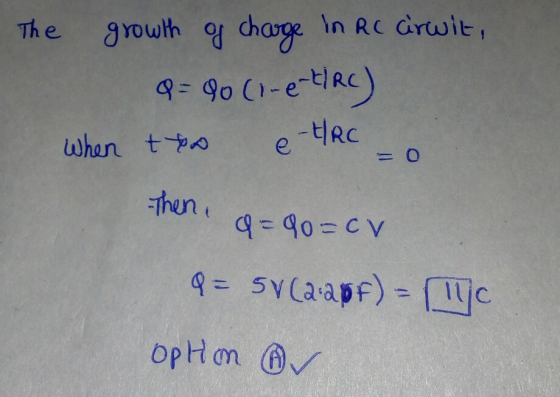

Homework Answers
Add Answer to:
A circuit includes a capacitor that charges over time. If the
resistance of the circuit is...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In...
In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a... In a series resistance-capacitance DC circuit, the instantaneous charge Q on the capacitor as a function of time (where t=0 is the moment the circuit is energized by closing a switch) is given by the equation Q(t)=CV(1-e-t/(RC), where C, V, and R are constants. Further, the instantaneous charging current Ic is the rate of change of charge on the capacitor, or Ic=dQ/dt a. Find the...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior of circuits containing capacitors. Understand the and the mathematical relationshin between the current through the circuit as a function time, resistance, capacitance, and potential difference 1. Understanding the models for the behavior of a capacitor in a circuit A capacitor is a device that stores energy in a circuit as potential energy in an electric field. In the simple circuit drawn on the night,...
Question 10 5 pts An RC has a resistor with a resistance of 12 and a...
Question 10 5 pts An RC has a resistor with a resistance of 12 and a capacitor with a capacitance of 1.4 F. The capacitor is discharging. if the capacitor initially has a charge Q=11Cthen after how many seconds will it have a charge of 0.6875 C O 11.65 O 67.25 correct answer not shown 46.65 O 16.85 Question 11 5 pts A discharging RC circuit has its charge reduce from 20 C to 10 C in 22 s. If...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a compu...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
The discharge curve for a capacitor connected in series with a resistor is shown below, If...
The discharge curve for a capacitor connected in series with a resistor is shown below, If the capacitance of the capacitor is 22.50 farads, what is the resistance of the resistor? Please calculate the time constant for this circuit. After two time constants what is the potential across capacitor? Please calculate the amount of charge on the capacitor 25.00 minutes after discharge has started, Once capacitor is fully discharged, the charging process begun. How much time, after charging begins, is...
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance.
Consider a series circuit containing a resistor of resistance R and a capacitor of capacitance C connected to a source of EMF E with negligible internal resistance. The wires are also assumed to have zero resistance. Initially, the switch is open and the capacitor discharged. (Figure 1)A Immediately after the switch is closed, what is the voltage across the capacitor?B Complete previous part(s) C Immediately after the switch is closed, what is the direction of the current in the circuit? E Eventually,...
by 400 cos 2t, a resistance of 100 ohms, and a capacitance of 10-2 farad. Initially...
by 400 cos 2t, a resistance of 100 ohms, and a capacitance of 10-2 farad. Initially there is no charge on the capacitor. Problem 6. An RC circuit has an emf given in volts) Find the current in the circuit at any time t.
A capacitor is charged to a potential of 12.0 V and is then connected to a...
A capacitor is charged to a potential of 12.0 V and is then connected to a voltmeter having an internal resistance of 3.10 M Ohms. After a time of 4.20 s the voltmeter reads 2.8 V. A. What is the capacitance (F)? B. What is the time constant of the circuit (s)?
-Given a capacitance of 50 nF, what resistance should your circuit have in order to have...
-Given a capacitance of 50 nF, what resistance should your circuit have in order to have a time constant of 100 microseconds? -From the circuit above, if you charged it to 5 Volts, then allow the circuit to discharge how long does it take to reach 1 V? -What was the charge when the capacitor had a potential difference of 1 V? -If when charging the capacitor to 5 V it broke down, what could you do to raise the...
Experiment 7 - The Resistor Capacitor Circuit Learning Objectives: Understand the short and long time behavior of circuits containing capacitors. Understand the and the mathematical relationshin between the current through the circuit as a function time, resistance, capacitance, and potential difference 1. Understanding the models for the behavior of a capacitor in a circuit A capacitor is a device that stores energy in a circuit as potential energy in an electric field. In the simple circuit drawn on the night,...
Question 10 5 pts An RC has a resistor with a resistance of 12 and a capacitor with a capacitance of 1.4 F. The capacitor is discharging. if the capacitor initially has a charge Q=11Cthen after how many seconds will it have a charge of 0.6875 C O 11.65 O 67.25 correct answer not shown 46.65 O 16.85 Question 11 5 pts A discharging RC circuit has its charge reduce from 20 C to 10 C in 22 s. If...
3 Capacitor Discharging Current The capacitor voltage versus time in a discharging series RC circuit, as shown in the Background Information Figure 2, is Vo(t) = V, expl-Roc), +20 (3) where V, is the source voltage in Volts, exp(x) is the exponential functione, Rp is the discharging resistance in Ohms (N), C is the capacitance in Farads. To = Rp is the discharging time constant in seconds. Derive an expression for the capacitor discharging current versus time, .(t), in terms...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
The discharge curve for a capacitor connected in series with a resistor is shown below, If the capacitance of the capacitor is 22.50 farads, what is the resistance of the resistor? Please calculate the time constant for this circuit. After two time constants what is the potential across capacitor? Please calculate the amount of charge on the capacitor 25.00 minutes after discharge has started, Once capacitor is fully discharged, the charging process begun. How much time, after charging begins, is...
by 400 cos 2t, a resistance of 100 ohms, and a capacitance of 10-2 farad. Initially there is no charge on the capacitor. Problem 6. An RC circuit has an emf given in volts) Find the current in the circuit at any time t.
