A 29-kΩ resistor is in series with a 57-mH inductor and an ac source. part A:Calculate...

A 29-kΩ resistor is in series with a 57-mH inductor and an ac source.
part A:Calculate the impedance of the circuit if the source frequency is 80 Hz .
Part B:Calculate the impedance of the circuit if the source frequency is 6.7×104 Hz .

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

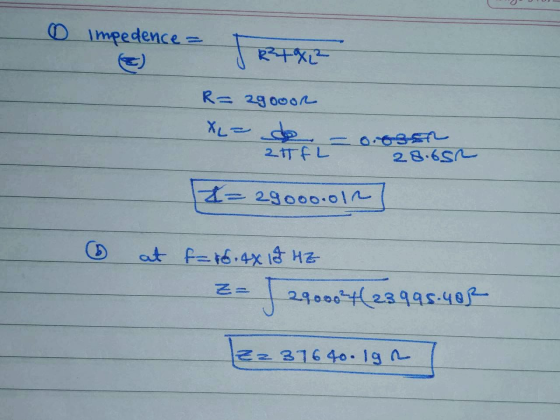

Answer #1
