An xyz coordinate system contains three charged particles: particle 1, q1=− 5.5 μC , at (4.0...

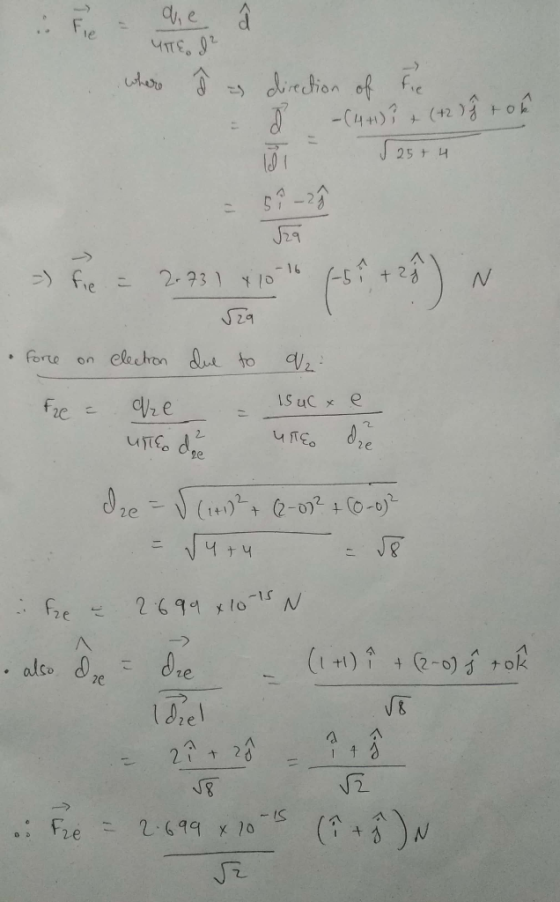

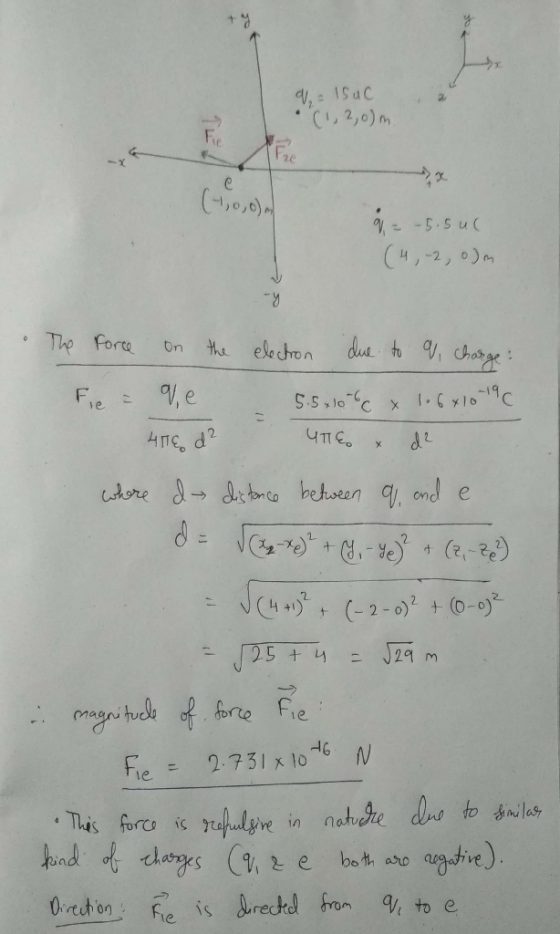

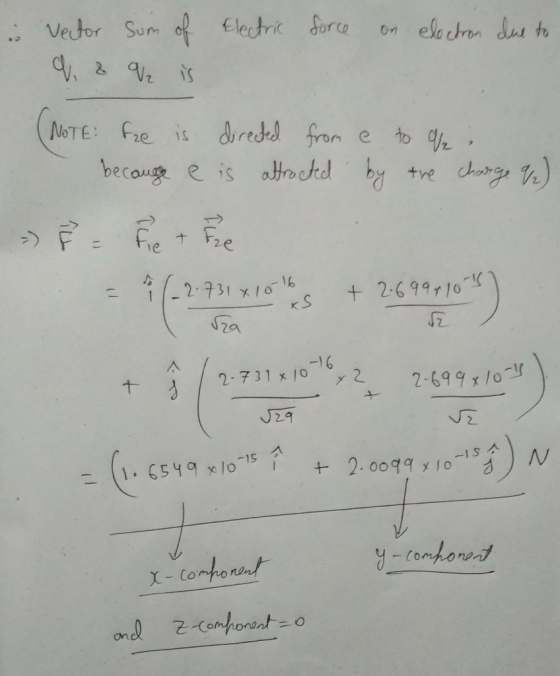

An xyz coordinate system contains three charged particles: particle 1, q1=− 5.5 μC , at (4.0 m,-2.0 m, 0); particle 2, q2 = 15 μC , at (1.0 m,2.0 m, 0); and an electron at at (-1.0 m, 0, 0). Determine the x, y, z components of the vector sum of the vectors of the electric forces exerted on the electron by particles 1 and 2.
Homework Answers
Please, feel free to ask in case of any doubts and
discrepancies.
Please hit a LIKE.
Thank you.
