A block of mass 1.5 kg is attached to a horizontal spring that has a force...

A block of mass 1.5 kg is attached to a horizontal spring that has a force constant of 1.70 103 N/m, and is free to slide on a frictionless surface as shown. The spring is compressed to xi = −9.5 cm by pushing on the block, and then the block is released. Find the work done by initially compressing the spring? Find the kinetic energy of the block when it reaches x = 0? Find the speed of the block at x = 0?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

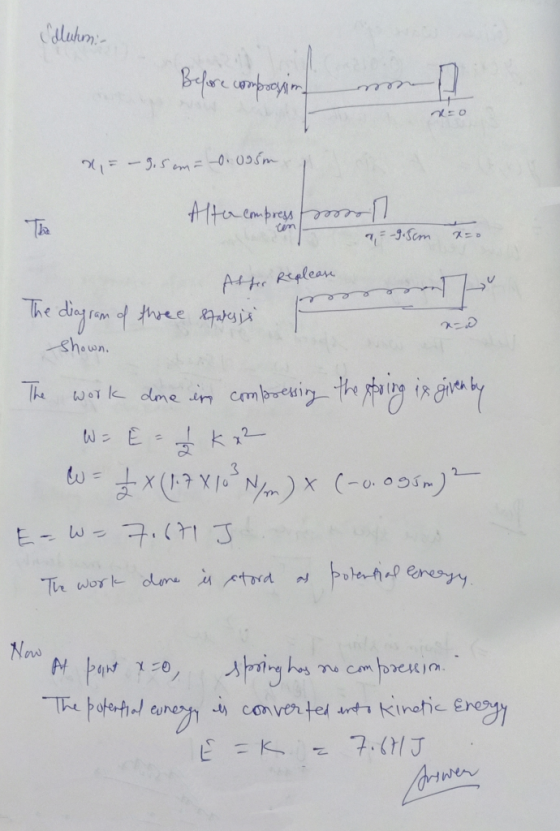

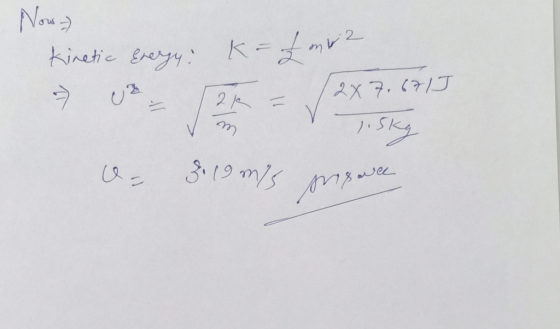

Answer #1

0 0
Add a comment
