Let there be four charges + q, -q, + q and -q located on the corners...

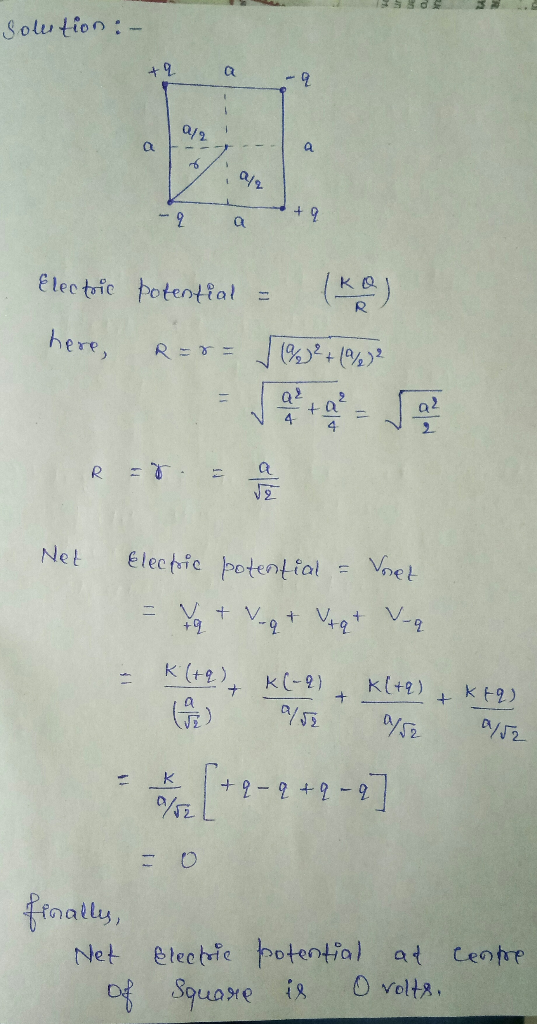

Let there be four charges + q, -q, + q and -q located on the corners of a side square a. The charges of the same polarity are arranged at the vertices situated along the diagonals. Calculate the electrical potential at a point in the center of the square.
Homework Answers
Add Answer to:
Let there be four charges + q, -q, + q and -q located on the
corners...
Four point charges each having charge Q are located at the corners of a square having...
Four point charges each having charge Q are located at the corners of a square having sides of length a. (a) Find an expression for the total electric potential at the center of the square due to the four charges. (Use any variable or symbol stated above along with the following as necessary: ke.) V = (b) Find an expression for the work required to bring a fifth charge q from infinity to the center of the square. (Use any...
Four point charges each having charge Q are located at the corners of a square having...
Four point charges each having charge Q are located at the corners of a square having sides of length a (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary;: e) (b) Find a symbolic expression for the work required to bring a fifth charge p from infinity to the center of the square (Use any...
Four point charges are located at the corners of a square that is 8.0 cm on...
Four point charges are located at the corners of a square that
is 8.0 cm on a side. The charges, going in rotation around the
square, are Q, 2Q, ?3Q, and 2Q,
where Q = 5.5C (See the
figure).
What is the total electric potential energy stored in the
system, relative to U=0 at infinite separation?
Four point charges are located at the corners of a square that is 8.0 cm on a side. The charges, going in rotation around...
Four point charges each having charge Q are located at the corners of a square having...
Four point charges each having charge Q are located at the corners of a square having sides of length a (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary: ke.) total = | 5.657皿 (b) Find a symbolic expression for the work required to bring a fifth charge p from infinity to the center of...
Four point charges, each with Q = 4.5 uC are arranged at the corners of a...
Four point charges, each with Q = 4.5 uC are arranged at the corners of a square of edge length 1.5 m. What is the electric potential at the center of the square?
Four point charges each haing charge Q are located at the corners of a square having...
Four point charges each haing charge Q are located at the corners of a square having sides of length a. (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary: k..) total b) Find a symbolic expression or he work required to bring a with the following as necessary: ke) h charge p rom infinity to...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the cen...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the cent...
In the figure below, four point charges lie on the corners of a
square, with a fifth point charge q located at the center. The two
left-most charges have the same negative charge qn, while the two
right-most charges have the same positive charge qp. Assume that
the center charge q is negative.
Four point charges are located at the corners of a square that is 8.0 cm on...
Four point charges are located at the corners of a square that
is 8.0 cm on a side. The charges, going in rotation around the
square, are Q, 2Q, ?3Q, and 2Q,
where Q = 6.9?C (See the figure).What is the total electric potential energy stored in the
system, relative to U=0 at infinite separation?Express your answer using two significant figures.
Four 0.8 nC point charges are located in free space at the corners of a square...
Four 0.8 nC point charges are located in free space at the corners of a square 4 cm on a side (a) Find the total potential energy stored. (b) A fifth 0.8 nC charge is installed at the center of the square. Again find the total stored energy.
Four point charges each having charge Q are located at the corners of a square having sides of length a (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary;: e) (b) Find a symbolic expression for the work required to bring a fifth charge p from infinity to the center of the square (Use any...
Four point charges are located at the corners of a square that
is 8.0 cm on a side. The charges, going in rotation around the
square, are Q, 2Q, ?3Q, and 2Q,
where Q = 5.5C (See the
figure).
What is the total electric potential energy stored in the
system, relative to U=0 at infinite separation?
Four point charges are located at the corners of a square that is 8.0 cm on a side. The charges, going in rotation around...
Four point charges each having charge Q are located at the corners of a square having sides of length a (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary: ke.) total = | 5.657皿 (b) Find a symbolic expression for the work required to bring a fifth charge p from infinity to the center of...
Four point charges each haing charge Q are located at the corners of a square having sides of length a. (a) Find a symbolic expression for the total electric potential at the center of the square due to the four charges (Use any variable or symbol stated above along with the following as necessary: k..) total b) Find a symbolic expression or he work required to bring a with the following as necessary: ke) h charge p rom infinity to...
In the figure below, four point charges lie on the corners of a square, with a fifth point charge q located at the center. The two left-most charges have the same negative charge q_n, while the two right-most charges have the same positive charge q^,. Assume that the center charge q is negative. What is the direction of the total electric force on the charge q at the center of the square? Indicate the direction by dragging the appropriate arrow...
In the figure below, four point charges lie on the corners of a
square, with a fifth point charge q located at the center. The two
left-most charges have the same negative charge qn, while the two
right-most charges have the same positive charge qp. Assume that
the center charge q is negative.
Four point charges are located at the corners of a square that
is 8.0 cm on a side. The charges, going in rotation around the
square, are Q, 2Q, ?3Q, and 2Q,
where Q = 6.9?C (See the figure).What is the total electric potential energy stored in the
system, relative to U=0 at infinite separation?Express your answer using two significant figures.
Four 0.8 nC point charges are located in free space at the corners of a square 4 cm on a side (a) Find the total potential energy stored. (b) A fifth 0.8 nC charge is installed at the center of the square. Again find the total stored energy.
