A 5.60 μF , parallel-plate, air capacitor has a plate separation of 5.40 mm and is...

Question

Question

A 5.60 μF , parallel-plate, air capacitor has a plate separation of 5.40 mm and is charged to a potential difference of 390 V .

a) Calculate the energy density in the region between the plates. (answer in J/m^3)

science physics

Answer 1

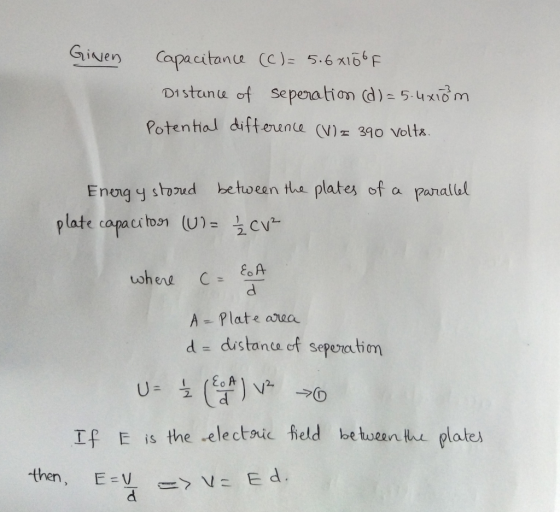

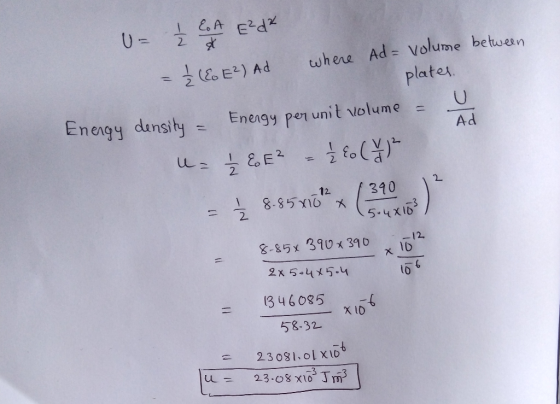

Answer #1

Answer 2
