1. A current of 7.19 A in a long, straight wire produces a magnetic field of...

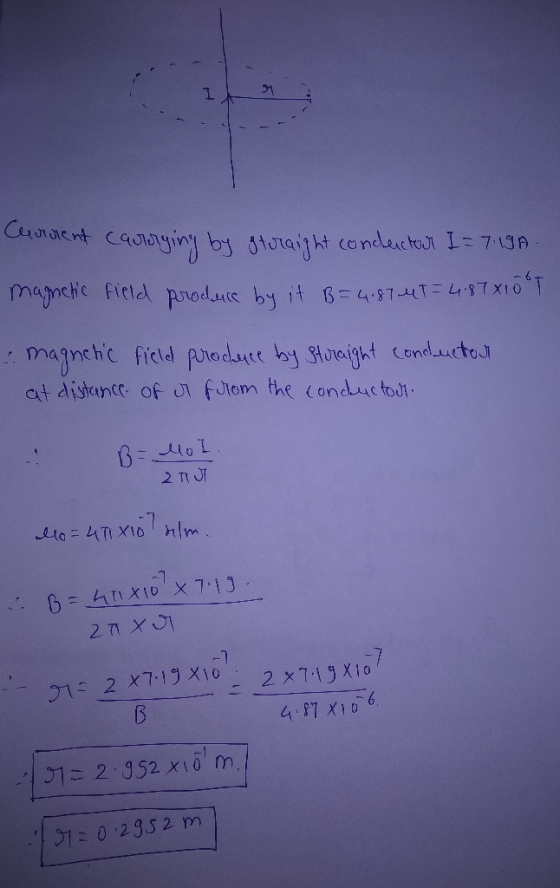

1. A current of 7.19 A in a long, straight wire produces a magnetic field of 4.87 μT at a certain distance from the wire. Find this distance.

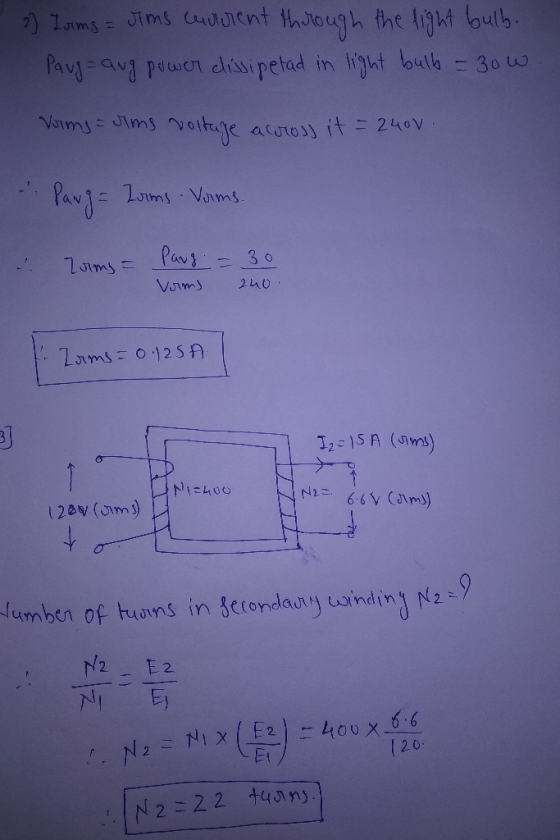

2. What is the rms current flowing through a light bulb that uses an average power of 30.0 W when it is plugged into a wall receptacle supplying an rms voltage of 240.0 V?

3. The 400-turn primary coil of a step‑down transformer is connected to an AC line that is 120.0 V (rms). The secondary coil is to supply 15.0 A (rms) at 6.60 V (rms).

Assuming no power loss in the transformer, what is the number of turns ?s in the secondary coil?

?s=

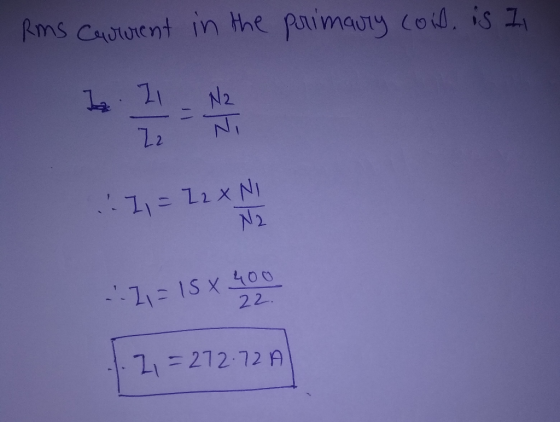

What is the rms current ?p,rms in the primary coil?

?p,rms=

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
