Suppose a ray that is parallel to the optical axis is incident on a concave mirror...

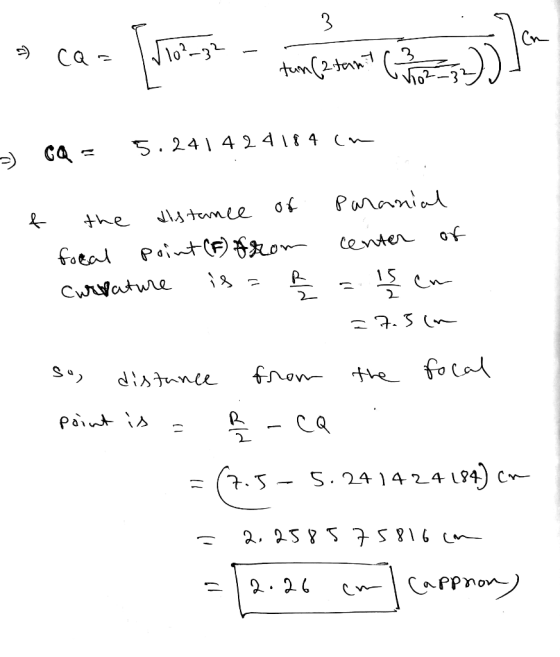

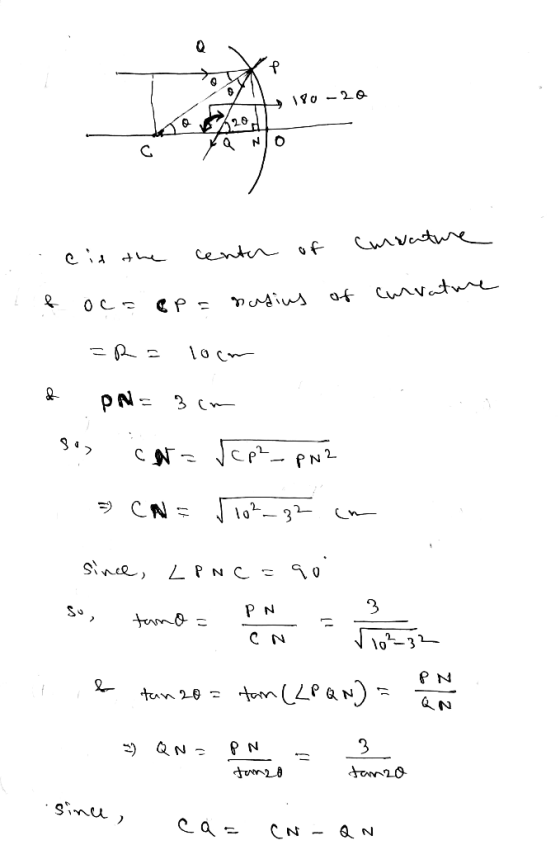

Suppose a ray that is parallel to the optical axis is incident on a concave mirror with R = 10 cm at a height of 3 cm. How far away from the paraxial focal point will the ray cross the optical axis?
Homework Answers
