Two masses are hanging from a double-pulley (two pulleys welded together so they move as one,...

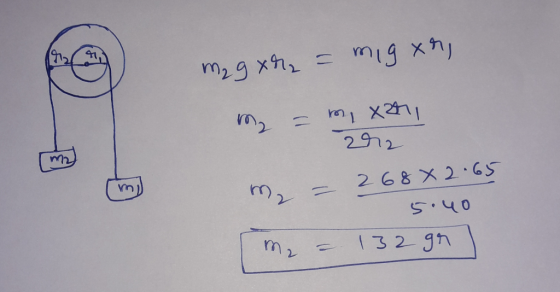

Two masses are hanging from a double-pulley (two pulleys welded together so they move as one, but each has a different diameter).
Mass 1 hangs from the smaller pulley, diameter 2.65 cm.
Mass 2 hangs from the larger pulley, diameter 5.40 cm.
If Mass 1 is 268 g, what value of Mass 2 will keep the system at rest?
Homework Answers
