A square flat loop with 15 turns and a side length of 20.3 cm is placed...

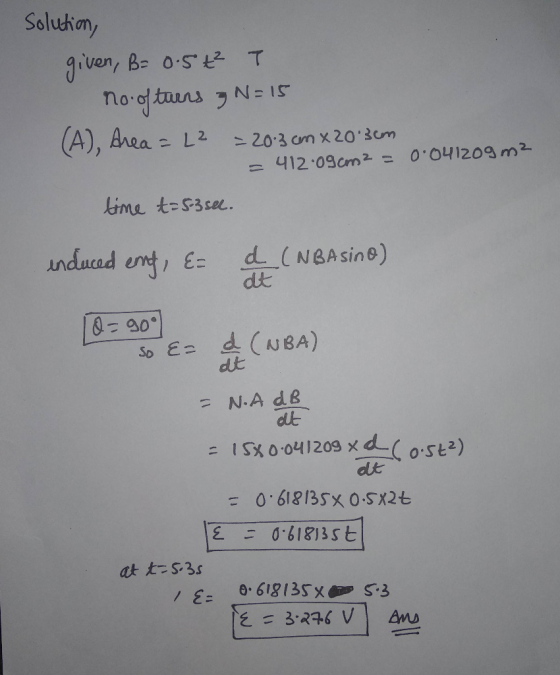

A square flat loop with 15 turns and a side length of 20.3 cm is placed in a magnetic field that is perpendicular to the plane of the loop. The magnitude of this field varies with time according to B = 0.50t2 , with t measured in seconds and B in Tesla.
What is the magnitude of the induced emf in the coil at t = 5.3?
(Hint: Use the differential form of Faraday's law.)
Homework Answers
Add Answer to:
A square flat loop
with 15 turns and a side length of 20.3 cm is placed...
Fig. 3 Problem 5 A square wire loop with sides of length L=2.00 m is perpendicular...
Fig. 3 Problem 5 A square wire loop with sides of length L=2.00 m is perpendicular to a uniform magnetic field pointing out of the page, with half the area of the loop in the field as shown in Fig. 3. The loop contains an ideal battery with emf Ebar=20.0 V. The magnitude of the field varies with time according to the expression B = 0.0420-0.870t, with B in Tesla and t in seconds. (a) Use Faraday's law to determine...
answer both for good rating A square coil of wire of side 2.50 cm is placed...
answer both for good rating
A square coil of wire of side 2.50 cm is placed in a uniform magnetic field of magnitude 1.50 T directed into the page as in the figure shown below. The coil has 35.0 turns and a resistance of 0.780 2. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. Rotation axis X X X X X X X X (a) the magnitude...
A 25-turn coil UN Shape square of 1.80 cm on each side. The total resistance in...
A 25-turn coil UN Shape square of 1.80 cm on each side. The total resistance in the coil is 0.35 ohms and applies a magnetic field perpendicular to the plane of the coil. ( A) If the magnetic field varies from zero up 0.50 T is 8 Seconds , get the emf induced in the coil ( b ) Find the magnitude and direction of the induced current in the coil.
A square conducting loop with side length a = 1.25 cm is placed at the center...
A square conducting loop with side length a = 1.25 cm is placed at the center of a solenoid 40.0 cm long with a current of 4.60 A flowing through its 470 turns, and it is aligned so that the plane of the loop is perpendicular to the long axis of the solenoid. The radius of the solenoid is 5.00 cm. (a) What is the magnetic flux through the loop? Wb (b) What is the magnitude of the average emf...
A 5-turn square loop whose side length is (0.20 m) is placed in a magnetic field...
A 5-turn square loop whose side length is (0.20 m) is placed in a magnetic field that makes an angle of 30° with the normal to the plane of the loop. The magnitude of this field varies with time as: B(t) = - 3.0t^3 where t is measured in s and B in T. What is the magnitude of the induced potential difference in the loop at t=2.0 s?
A coil 4.40 cm radius, containing 600 turns, is placed in a uniform magnetic field that...
A coil 4.40 cm radius, containing 600 turns, is placed in a uniform magnetic field that varies with time according to B=( 1.20×10−2 T/s )t+( 3.10×10−5 T/s4 )t4. The coil is connected to a 590-Ω resistor, and its plane is perpendicular to the magnetic field. You can ignore the resistance of the coil. A) Find the magnitude of the induced emf in the coil as a function of time. B) What is the current in the resistor at time t0...
a) The magnetic field is a certain region varies with time given by B(t) =30e^ -2t...
a) The magnetic field is a certain region varies with time given by B(t) =30e^ -2t in Tesla. A 10cm * 15cm rectangular coil whose plane is perpendicular to the direction of the magnetic is placed in this field, find the magnetic flux as a function of time flux(t). b) A coil consists of 200 turns of wire. Each turn is a square of side d=18cm, and a uniform magnetic field directed perpendicular to the plane of the coil is...
A square loop of wire with side 3 cm is placed in a uniform magnetic field...
A square loop of wire with side 3 cm is placed in a uniform
magnetic field of magnitude 0.4 T. A line perpendicular to the
plane of the loop is angled at 30 degrees to the magnetic field.
What is the magnitude of the magnetic flux through the coll
A square loop of wire with side 3 cm is placed in a uniform magnetic field of magnitude 0.4 T. A line perpendicular to the plane of the loop is angled...
A square coil of wire of side 2.90 cm is placed in a uniform magnetic field...
A square coil of wire of side 2.90 cm is placed in a uniform magnetic field of magnitude 2.25 T directed into the page as in the figure shown below. The coil has 21.5 turns and a resistance of 0.780 Ω. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. A square coil is shown in the plane of the page, and inside the coil a magnetic field...
A 23-turn circular coil of radius 3.40 cm and resistance 1.00 Ω is placed in a...
A 23-turn circular coil of radius 3.40 cm and resistance 1.00 Ω is placed in a magnetic field directed perpendicular to the plane of the coil. The magnitude of the magnetic field varies in time according to the expression B = 0.010 0t + 0.040 0t2, where B is in teslas and t is in seconds. Calculate the induced emf in the coil at t = 5.40 s. mV
Fig. 3 Problem 5 A square wire loop with sides of length L=2.00 m is perpendicular to a uniform magnetic field pointing out of the page, with half the area of the loop in the field as shown in Fig. 3. The loop contains an ideal battery with emf Ebar=20.0 V. The magnitude of the field varies with time according to the expression B = 0.0420-0.870t, with B in Tesla and t in seconds. (a) Use Faraday's law to determine...
answer both for good rating
A square coil of wire of side 2.50 cm is placed in a uniform magnetic field of magnitude 1.50 T directed into the page as in the figure shown below. The coil has 35.0 turns and a resistance of 0.780 2. If the coil is rotated through an angle of 90.0° about the horizontal axis shown in 0.335 s, find the following. Rotation axis X X X X X X X X (a) the magnitude...
A square loop of wire with side 3 cm is placed in a uniform
magnetic field of magnitude 0.4 T. A line perpendicular to the
plane of the loop is angled at 30 degrees to the magnetic field.
What is the magnitude of the magnetic flux through the coll
A square loop of wire with side 3 cm is placed in a uniform magnetic field of magnitude 0.4 T. A line perpendicular to the plane of the loop is angled...
