A proton of charge +1.60×10-19 C and mass 1.67×10-27 kg is introduced into a region of...

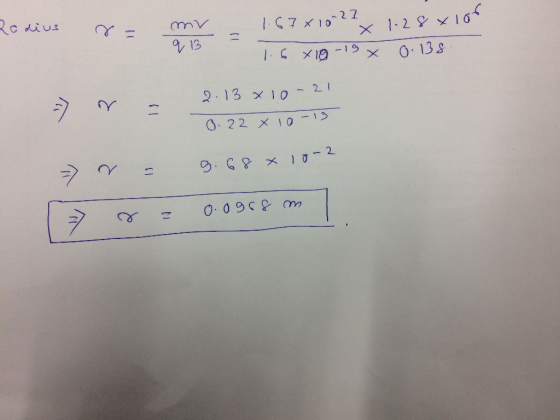

A proton of charge +1.60×10-19 C and mass 1.67×10-27 kg is introduced into a region of B = 0.138 T with an initial velocity of 1.28×106 m/s perpendicular to B. What is the radius of the proton's path?

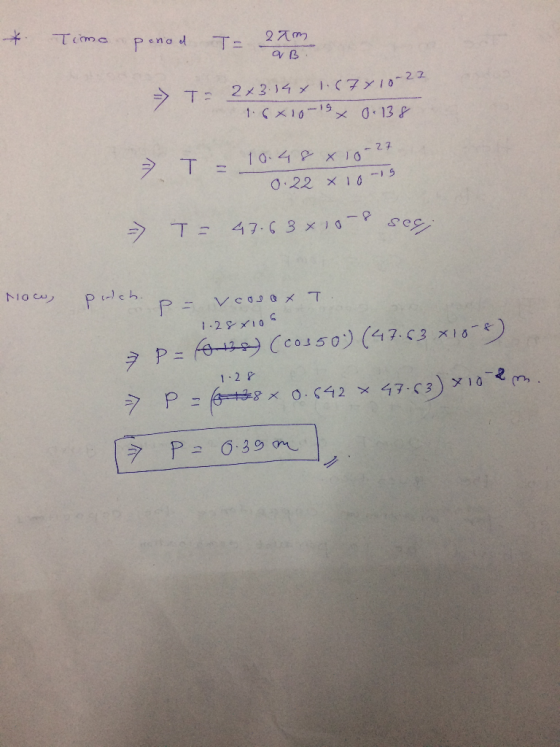

Suppose the initial velocity of the proton makes an angle of 50 o with the direction of the magnetic field B. What is the pitch of the helix that describes the path of the proton? The pitch is the distance the proton travels along the axis of the helix in the time required for the proton to make one complete loop around the axis.
Homework Answers
Add Answer to:
A proton of charge +1.60×10-19 C and mass
1.67×10-27 kg is introduced into a region of...
A proton of mass mp= 1.67×10−27 kg and a charge of qp= 1.60×10−19 C is moving...
A proton of mass mp= 1.67×10−27 kg and a charge of qp= 1.60×10−19 C is moving through vacuum at a constant velocity of 10,000 m/s directly to the east when it enters a region of uniform electric field that points to the south with a magnitude of E =3.62e+3 N/C . The region of uniform electric field is 5 mm wide in the east-west direction. How far (in meters) will the proton have been deflected towards the south by the...
X 107 kg) 27.25 A proton (q 1.60 x 1019 C, m 1.67 moves in a...
X 107 kg) 27.25 A proton (q 1.60 x 1019 C, m 1.67 moves in a uniform magnetic field B (0.500 T)1. At t = 0 the proton has velocity components ux-1.50 × 105 m/s, vy=0, and vz = 2.00 × 105 m/s (see Example 27.4) (a) what are the magnitude and direction of the magnetic force acting on the proton? In addition to the magnetic field there is a uniform electric field in the +x-direction, E (+2.00 x 104...
A proton moves in a helical path at a speed of 5.97 × 107 m/s high...
A proton moves in a helical path at a speed of 5.97 × 107 m/s high in the atmosphere, where the Earth's magnetic field has magnitude 1.71 × 10−6 T. The proton's velocity makes an angle of 25.0° with the magnetic field. (a) Find the radius of the helix (b) Find the pitch of the helix (Distance between adjacent "coils")
A proton (m, = 1.67 X 10-27 kg, qo=e= 1.60 X 10-19 C) and an alpha...
A proton (m, = 1.67 X 10-27 kg, qo=e= 1.60 X 10-19 C) and an alpha particle (me = 4m, 9a= 49p) start from rest at the same point in a region of uniform electric field E= 200 V/m. Each particle travels a distance of 4.0 cm in this field. (a) At that point, which particle has the higher kinetic energy, and what is this energy? (b) At that point, which particle is moving with the higher speed, and what...
A proton of mass m_p = 1.67 \times 10^{-27}~kgm p =1.67×10 −27 kg and...
A proton of mass m_p = 1.67 \times 10^{-27}~kgm p =1.67×10 −27 kg and a charge of q_p = 1.60 \times 10^{-19} ~Cq p =1.60×10 −19 C is moving through vacuum at a constant velocity of 10,000 ~m/s10,000 m/s directly to the east when it enters a region of uniform electric field that points to the south with a magnitude of | \vec{E} | = ∣ E ⃗ ∣=2.60e+3~N/C N/C . The region of uniform...
A proton of mass m_p = 1.67 \times 10^{-27}~kgm p =1.67×10 −27 kg and...
A proton of mass m_p = 1.67 \times 10^{-27}~kgm p =1.67×10 −27 kg and a charge of q_p = 1.60 \times 10^{-19} ~Cq p =1.60×10 −19 C is moving through vacuum at a constant velocity of 10,000 ~m/s10,000 m/s directly to the east when it enters a region of uniform electric field that points to the south with a magnitude of | \vec{E} | = ∣ E ⃗ ∣=2.35e+3~N/C N/C . The region of uniform...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve? A proton of mass...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A proton of mass mp = 1.67 x 10-27kg and charge +e = 1.60 x 10-19...
A proton of mass mp = 1.67 x 10-27kg and charge +e = 1.60 x 10-19 C isaccelerated from rest through an electric potential of 210 kV. Whatis its final velocity?
2. A proton with charge gp 1.6 x 10 19C and mass M, is accelerated through...
2. A proton with charge gp 1.6 x 10 19C and mass M, is accelerated through a potential difference V. The proton then enters a region of con stant magnetic field B oriented perpendicular to its path. In this region, the proton's path is circular with radius Rp Another particle with the same charge as the proton but a different mass M, follows under the same conditions. Its radius R., is 1.4 times as large as Rp. what is the...
If a proton m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19...
If a proton m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is released from rest at the + plate in the below electric field, what will be its speed at the-plate? 3 cm E = 5000 N/C
X 107 kg) 27.25 A proton (q 1.60 x 1019 C, m 1.67 moves in a uniform magnetic field B (0.500 T)1. At t = 0 the proton has velocity components ux-1.50 × 105 m/s, vy=0, and vz = 2.00 × 105 m/s (see Example 27.4) (a) what are the magnitude and direction of the magnetic force acting on the proton? In addition to the magnetic field there is a uniform electric field in the +x-direction, E (+2.00 x 104...
A proton (m, = 1.67 X 10-27 kg, qo=e= 1.60 X 10-19 C) and an alpha particle (me = 4m, 9a= 49p) start from rest at the same point in a region of uniform electric field E= 200 V/m. Each particle travels a distance of 4.0 cm in this field. (a) At that point, which particle has the higher kinetic energy, and what is this energy? (b) At that point, which particle is moving with the higher speed, and what...
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
A proton of mass m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is accelerated from rest through a potential difference of 4000 V. What final velocity does it achieve?
2. A proton with charge gp 1.6 x 10 19C and mass M, is accelerated through a potential difference V. The proton then enters a region of con stant magnetic field B oriented perpendicular to its path. In this region, the proton's path is circular with radius Rp Another particle with the same charge as the proton but a different mass M, follows under the same conditions. Its radius R., is 1.4 times as large as Rp. what is the...
If a proton m = 1.67 x 10-27 kg and charge q = 1.60 x 10-19 C is released from rest at the + plate in the below electric field, what will be its speed at the-plate? 3 cm E = 5000 N/C
