An equilateral prism with n=1.33 has a beam of light incident on one side at an...

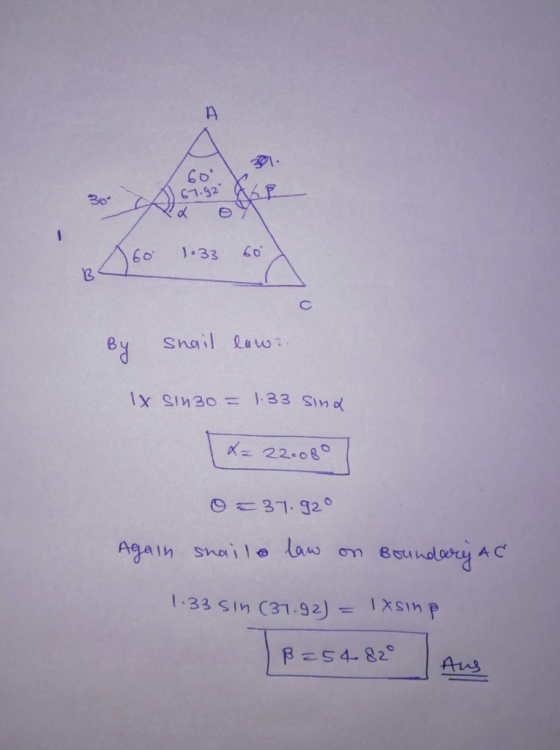

An equilateral prism with n=1.33 has a beam of light incident on one side at an angle of 30 degrees. At what angle will the beam exit the prism?
Homework Answers
Add Answer to:
An equilateral prism with n=1.33 has a beam of light incident on
one side at an...
A beam of light is incident on an equilateral prism at an angle of 80°. At...
A beam of light is incident on an equilateral prism at an angle of 80°. At what angle, θ, does the beam emerge from the other face of the prism? ‘n’ for the prism for that light = 1.4. (21.7°)
A ray of light emerged from the right side of an equilateral prism. What is the...
A ray of light emerged from the right side of an equilateral prism. What is the angle of incidence of the light beam in the prism?
A narrow beam of white light enters a prism made of crown glass (n = 1.52) at a 45.0° incident angle, as shown to the right
A narrow beam of white light enters a prism made of crown glass (n = 1.52) at a 45.0° incident angle, as shown to the rightPart (a) At what angle does the red (660 nm) component of light emerge from the prism? Give your answer in degreesPart (b) At what angle does the violet (410 nm) component of light emerge from the prism? Give your answer in degrees
A beam of white light (400 – 700 nm) is shone at a small equilateral quartz prism. 1.5 m behind the prism is a large scr...
A beam of white light (400 – 700 nm) is shone at a small equilateral quartz prism. 1.5 m behind the prism is a large screen. WHAT is observed on the screen, AND WHERE ON THE SCREEN, if (A) the beam is incident on a vertex of the prism, and (B) if the beam is incident normal to one of the faces? Assume both the prism and the width of the beam are non-zero but negligible relative to the prism-screen...
A horizontal light beam is incident on a prism as in the figure. The angles A...
A horizontal light beam is incident on a prism as in the figure. The angles A of the prism. are 45 degree, the index of refraction of the prism is n, while the index of refraction of air is approximately 1. 1. Draw the light beam as it travels through the prism. 2. Calculate the angle between the initial direction of the light beam and its direction after the first diffraction. 3. Calculate the angle between the initial direction of...
A narrow beam of light with wavelengths from 450 nm to 700 nm is incident perpendicular...
A narrow beam of light with wavelengths from 450 nm to 700 nm is incident perpendicular to one face of a prism made of crown glass, for which the index of refraction ranges from n = 1.533 to n = 1.517 for those wavelengths. The light strikes the opposite side of the prism at an angle of 40.0°. What is the angular spread of the beam as it leaves the prism? Express your answer in degrees.
Light and a 30-60-90 Prism
Red light is incident in air on a 30o - 60o - 90 o prism as shown. The incident beam is directed at an angle of φ1 = 41.6o with respect to the horizontal and enters the prism at a height h = 23 cm above the base. The beam leaves the prism to the air at a distance d = 61.3 along the base as shown.1)What is φ2, the angle the beam in the prism makes with the horizontal...
A beam of light shines on an equilateral glass prism at an angle of 41° to...
A beam of light shines on an equilateral glass prism at an angle of 41° to one face (figure (a) below). Red White Violet 1) What is the angle at which the light emerges from the opposite face given that nglass = 1.57? (Express your answer to three significant figures.) You can ignore part (b) of the figure. Submit
Question 13 A equilateral triangular prism has an apex angle of 60.00 and is made out...
Question 13 A equilateral triangular prism has an apex angle of 60.00 and is made out of flint glass and sits with its prism base on a table, as shown. A beam of red light (A 660nm) is directed at the left face of the prism. What beam angle ? relative to the horizontal will produce a beam that is parallel to the horizontal tabletop inside the prism? Enter answer here degrees
Red light is incident in air on a 30 degree - 60 degree - 90 degree...
Red light is incident in air on a 30 degree - 60 degree - 90 degree prism as shown. The incident beam is directed at an angle of phi_1 = 46.3 degree with respect to the horizontal and enters the prism at a height h = 14 cm above the base. The beam leaves the prism to the air at a distance d = 35.5 along the base as shown. What is phi_2, the angle the beam in the prism...
A horizontal light beam is incident on a prism as in the figure. The angles A of the prism. are 45 degree, the index of refraction of the prism is n, while the index of refraction of air is approximately 1. 1. Draw the light beam as it travels through the prism. 2. Calculate the angle between the initial direction of the light beam and its direction after the first diffraction. 3. Calculate the angle between the initial direction of...
A narrow beam of light with wavelengths from 450 nm to 700 nm is incident perpendicular to one face of a prism made of crown glass, for which the index of refraction ranges from n = 1.533 to n = 1.517 for those wavelengths. The light strikes the opposite side of the prism at an angle of 40.0°. What is the angular spread of the beam as it leaves the prism? Express your answer in degrees.
A beam of light shines on an equilateral glass prism at an angle of 41° to one face (figure (a) below). Red White Violet 1) What is the angle at which the light emerges from the opposite face given that nglass = 1.57? (Express your answer to three significant figures.) You can ignore part (b) of the figure. Submit
Question 13 A equilateral triangular prism has an apex angle of 60.00 and is made out of flint glass and sits with its prism base on a table, as shown. A beam of red light (A 660nm) is directed at the left face of the prism. What beam angle ? relative to the horizontal will produce a beam that is parallel to the horizontal tabletop inside the prism? Enter answer here degrees
Red light is incident in air on a 30 degree - 60 degree - 90 degree prism as shown. The incident beam is directed at an angle of phi_1 = 46.3 degree with respect to the horizontal and enters the prism at a height h = 14 cm above the base. The beam leaves the prism to the air at a distance d = 35.5 along the base as shown. What is phi_2, the angle the beam in the prism...
