Charge distribution with spherical symmetry A) Consider a uniformly charged spherical crust of radius R and...
Charge distribution with spherical symmetry

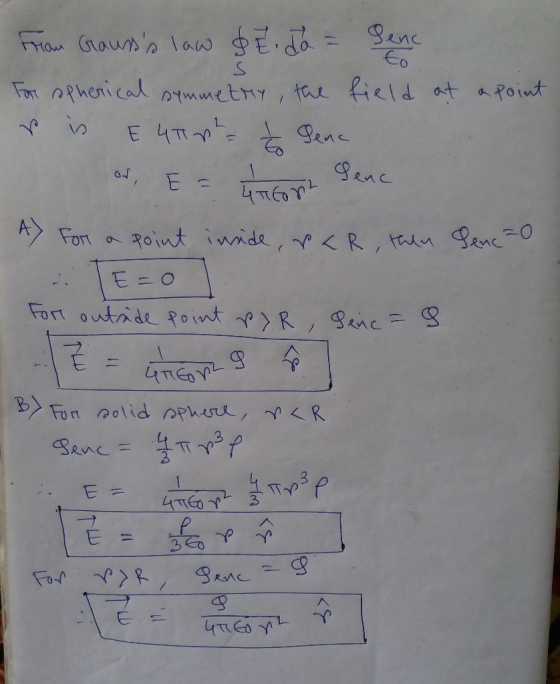

A) Consider a uniformly charged spherical crust of radius R and total charge Q. Calculate the value of the electric field E inside and outside the crust.
b) Consider a solid sphere with radius R that has a uniform volumetric charge density ρy has a total charge Q.Calculate the value of the electric field E inside and outside the sphere.
Homework Answers
Add Answer to:
Charge distribution with spherical symmetry
A) Consider a uniformly charged spherical crust of radius R and...
Consider a sphere of radius a with a uniform charge distribution over its volume, and a...
Consider a sphere of radius a with a uniform charge distribution over its volume, and a total charge of q_o. Use Gauss's Law to calculate the electric field outside the sphere, and then inside the sphere. Solve the general problem in r, recognizing that problem spherical symmetry. Draw a graph of the electric field the has the surface of the strength as a function of noting where if the surface of the sphere is (a). Some hints: the surface area...
1. A very long, uniformly charged cylinder has radius R and charge density p. Determine the...
1. A very long, uniformly charged cylinder has radius R and charge density \rho. Determine the electric field of this cylinder inside (r<R) and outside (r>R)2. A large, flat, nonconducting surface carries a uniform surface charge density σ. A small circular hole of radius R has been cut in the middle of the sheet. Determine the electric field at a distance z directly above the center of the hole.3. You have a solid, nonconducting sphere that is inside of, and...
1.) Consider a spherical shell of radius R uniformly charged with a total charge of -Q....
1.) Consider a spherical shell of radius R uniformly charged with a total charge of -Q. Starting at the surface of the shell going outwards, there is a uniform distribution of positive charge in a space such that the electric field at R+h vanishes, where R>>h. What is the positive charge density? Hint: We can use a binomial expansion approximation to find volume: (R + r)" = R" (1 + rR-')" ~R" (1 + nrR-1) or (R + r)" =R"...
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R...
(1) Consider a very long uniformly charged cylinder with volume charge density p and radius R (we can consider the cylinder as infinitely long). Use Gauss's law to find the electric field produced inside and outside the cylinder. Check that the electric field that you calculate inside and outside the cylinder takes the same value at a distance R from the symmetry axis of the cylinder (on the surface of the cylinder) .
A uniformly charged non-conducting sphere of radius a is placed at the center of a spherical...
A uniformly charged non-conducting sphere of radius a is placed at the center of a spherical conducting shell of inner radius b and outer radius c. A charge +Q is distributed uniformly throughout the inner sphere. The outer shell has charge -Q. Using Gauss' Law: a) Determine the electric field in the region r< a b) Determine the electric field in the region a < r < b c) Determine the electric field in the region r > c d)...
A non-uniformly charged sphere of radius R has a total charge Q. The electric field inside...
A non-uniformly charged sphere of radius R has a total charge Q. The electric field inside this charge distribution is described by E=Emax(r4 /R4 ), where Emax is a known constant. Using the differential form of Gauss’s law, find volume charge density as a function of r. Express your result in terms of r, R and Emax.
Question 22 6 pts A uniformly charged solid insulating sphere of radius R and volume charge...
Question 22 6 pts A uniformly charged solid insulating sphere of radius R and volume charge density p has an electric field strength inside the sphere (r<R) of E = pr/3£. What is the electric potential inside the sphere? (hint: use the relationship between Vand E. -p/38 p/3E. pr2/6€. pr/380 -pr2/680
Consider a charged sphere with the following charge density ρ(r) =(ρ0(1− r Rmax) r ≤ Rmax...
Consider a charged sphere with the following charge density ρ(r)
=(ρ0(1− r Rmax) r ≤ Rmax 0 r > Rmax
Using Gauß’ law, calculate the electric field
(a) ~ E1 inside the sphere (i.e. r ≤ Rmax),
(b) ~ E2 outside the sphere (i.e r ≥ Rmax),
(c) Check that lim r→Rmax ~ E1 = lim r→Rmax ~ E2. Reminder: Due
to spherical symmetryRRRV ρ(r0)dxdydz =Rr 0 ρ(r0)4πr02dr0
Please provide an explanation for the
solution.
Problem 5. Consider a charged...
Consider a charged sphere of radius R. The charge density is not constant. Rather, it blows...
Consider a charged sphere of radius R. The charge density is not constant. Rather, it blows up at the center of the sphere, but falls away exponentially fast away from the center, p(r)=(C/r2)e-kr where C is an unkown constant, and k determines how fast the charge density falls off. The total charge on the sphere is Q. a) Write down the Electric Field outside the sphere, where r ≥ R, in term of the total Q. b) Show that C=...
Let's consider a solid nonconducting sphere with radius a. It has a uniform +Q charge distribution...
Let's consider a solid nonconducting sphere with radius a. It has a uniform +Q charge distribution in its volume. A gold layer (conducting) with negligible thickness covers the sphere. A total charge of -2Q is placed on this layer. a) What is the electric field inside the sphere? b) What is the electric field outside the sphere?
Consider a sphere of radius a with a uniform charge distribution over its volume, and a total charge of q_o. Use Gauss's Law to calculate the electric field outside the sphere, and then inside the sphere. Solve the general problem in r, recognizing that problem spherical symmetry. Draw a graph of the electric field the has the surface of the strength as a function of noting where if the surface of the sphere is (a). Some hints: the surface area...
1.) Consider a spherical shell of radius R uniformly charged with a total charge of -Q. Starting at the surface of the shell going outwards, there is a uniform distribution of positive charge in a space such that the electric field at R+h vanishes, where R>>h. What is the positive charge density? Hint: We can use a binomial expansion approximation to find volume: (R + r)" = R" (1 + rR-')" ~R" (1 + nrR-1) or (R + r)" =R"...
Question 22 6 pts A uniformly charged solid insulating sphere of radius R and volume charge density p has an electric field strength inside the sphere (r<R) of E = pr/3£. What is the electric potential inside the sphere? (hint: use the relationship between Vand E. -p/38 p/3E. pr2/6€. pr/380 -pr2/680
Consider a charged sphere with the following charge density ρ(r)
=(ρ0(1− r Rmax) r ≤ Rmax 0 r > Rmax
Using Gauß’ law, calculate the electric field
(a) ~ E1 inside the sphere (i.e. r ≤ Rmax),
(b) ~ E2 outside the sphere (i.e r ≥ Rmax),
(c) Check that lim r→Rmax ~ E1 = lim r→Rmax ~ E2. Reminder: Due
to spherical symmetryRRRV ρ(r0)dxdydz =Rr 0 ρ(r0)4πr02dr0
Please provide an explanation for the
solution.
Problem 5. Consider a charged...
