3. a) Sketch the electric field in the interior and the exterior of a spherical metal...

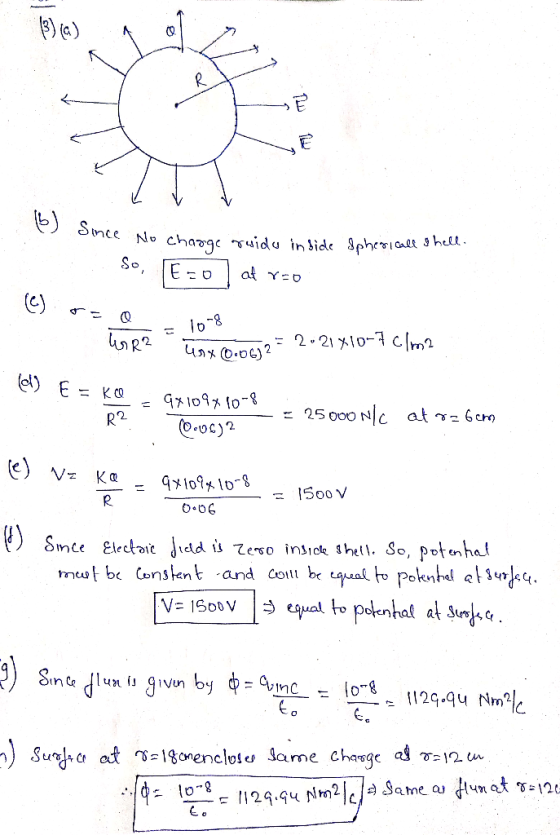

3. a) Sketch the electric field in the interior and the exterior of a spherical metal shell 6 cm in radius if the shell has a net charge of +10-8 Coulombs on its surface. b) What is the electric field at r=0? c) Find the surface charge density on the shell. d) What is the electric field strength at the surface r = 6 cm? e) What is the voltage at the surface of the sphere? Assume the potential goes to zero at infinity. f) What is the voltage at the origin, r=0? How does it compare to the voltage at the surface r=6 cm? Justify your answer. g) Find the flux of the electric field through a surface at r=12 cm surrounding the shell h) Find the flux of the electric field through a surface at r=18 cm surrounding the shell. How is it related to the flux through the 12 cm radius surface?
Homework Answers
Add Answer to:
3. a) Sketch the electric field in the interior and the exterior
of a spherical metal...
Please help !!! Calculate the magnitude of the flux of a constant electric field of 5.0...
Please help !!!
Calculate the magnitude of the flux of a constant electric field of 5.0 NC in the z -direction through a rectangle with area 4.0 m2 in the xy plane. a. 0 b. 5.0 N-m2/C c. 10.0 N-m2/C d. 20.0 N-m/C 10. 11. A circular ring of charge of radius b has a total charge q uniformly distributed around it. The electric field at the center of the ring is a. 0 12. A solid spherical conductor has...
If a charge is located at the center of a spherical volume and the electric flux through the surface of the sphere is Φ...
If a charge is located at the center of a spherical volume and the electric flux through the surface of the sphere is Φ, what should be the flux through the surface if the radius of the sphere were tripled? Draw the diagram with a sphere of radius R and the second surface of radius 3R. Draw enough field lines to illustrate the field. Calculate the flux through each surface. What is the relationship of the flux through radius R...
12(46) A spherical conducting shell of radius 6 cm carrie in". (A) what is the total charge on the shell? Find the electric field at (B) r-2 cm; (C) r-5.9 cm; (D) r - 6.1 cm; and (E) r - 10 c...
12(46) A spherical conducting shell of radius 6 cm carrie in". (A) what is the total charge on the shell? Find the electric field at (B) r-2 cm; (C) r-5.9 cm; (D) r - 6.1 cm; and (E) r - 10 cm s a uniform surface charge density of 25
12(46) A spherical conducting shell of radius 6 cm carrie in". (A) what is the total charge on the shell? Find the electric field at (B) r-2 cm; (C) r-5.9...
(3) A point charge of 10 nC sits at the origin. [5 pts] (a) Sketch the...
(3) A point charge of 10 nC sits at the origin. [5 pts] (a) Sketch the point charge and it electric field lines. (b) Now sketch a spherical surface of radius 2 m that sits on the x-axis at x-4m. Assume there is no charge on the spherical surface. (Sketch in 2D i.e. include just the projection of the sphere on the x-y plane.) (c) How many of your drawn lines enter the spherical surface? (d) How many lines leave...
A solid sphere of radius (a = 3.00 cm) is concentric with a spherical conducting shell...
A solid sphere of radius (a = 3.00 cm) is concentric with a spherical conducting shell of inner radius (b = 2.00 cm) and outer radius (c = 2.40 cm) . The space between the sphere and the inner surface of the shell is empty. The sphere, made of a dielectric, has a net uniform charge of (q1 = +5 micro Coulombs). The shell has a net charge (q2 = - q1) . 1) What is the magnitude of the...
A spherical metal (conductor) has a spherical cavity in side. There is a single point charge...
A spherical metal (conductor) has a spherical cavity in side. There is a single point charge Q at the cavity center. The total charge on the meta is 0 (a) Describe how the charge is distributed on the E=? sphere. Would the surface charge density be u form at each surface? (b) Draw the electric field lines. c) Find the electric field for a point outside the metal. Express it in terms of r, the distance of the point in...
Question 1 (compulsory): The following set of charges is given in free space Charge σ,--40 nC/m Number and type of charge #1 , charged spherical shell of radius Ri-10 cm carrying uniform surface char...
Question 1 (compulsory): The following set of charges is given in free space Charge σ,--40 nC/m Number and type of charge #1 , charged spherical shell of radius Ri-10 cm carrying uniform surface charge density σ #2, charged spherical shell of radius R2-5 cm carrying uniform surface charge density Ơ Location (0, 0, 0) m (position of the centre of the sphere) (0, 0, 0) m (position of the centre of the sphere σ,-160 nC/m2 The positions of the spheres'...
If a charge is located at the center of a spherical volume and the electric flux through the surface of the sphere is.....
If a charge is located at the center of a spherical volume and
the electric flux through the surface of the sphere is...
If a charge is located at the center of a spherical volume and the electric flux through the surface of the sphere is phi, what would be the flux through the surface if the radius of the sphere were tripled?
The electric field everywhere on the surface of a thin, spherical shell of radius 0.745 m...
The electric field everywhere on the surface of a thin, spherical shell of radius 0.745 m is of magnitude 889 N/C and points radially toward the center of the sphere. (a) What is the net charge within the sphere's surface? nC (b) What is the distribution of the charge inside the spherical shell?
A point charge causes an electric flux of -1000 N-m2/C to pass through a spherical Gaussian...
A point charge causes an electric flux of -1000 N-m2/C to pass through a spherical Gaussian surface of 10.7 cm radius centered on the charge. (a) If the radius of the Gaussian surface were doubled, how much flux would pass through the surface? (b) What is the value of the point charge in coulombs?
Please help !!!
Calculate the magnitude of the flux of a constant electric field of 5.0 NC in the z -direction through a rectangle with area 4.0 m2 in the xy plane. a. 0 b. 5.0 N-m2/C c. 10.0 N-m2/C d. 20.0 N-m/C 10. 11. A circular ring of charge of radius b has a total charge q uniformly distributed around it. The electric field at the center of the ring is a. 0 12. A solid spherical conductor has...
12(46) A spherical conducting shell of radius 6 cm carrie in". (A) what is the total charge on the shell? Find the electric field at (B) r-2 cm; (C) r-5.9 cm; (D) r - 6.1 cm; and (E) r - 10 cm s a uniform surface charge density of 25
12(46) A spherical conducting shell of radius 6 cm carrie in". (A) what is the total charge on the shell? Find the electric field at (B) r-2 cm; (C) r-5.9...
(3) A point charge of 10 nC sits at the origin. [5 pts] (a) Sketch the point charge and it electric field lines. (b) Now sketch a spherical surface of radius 2 m that sits on the x-axis at x-4m. Assume there is no charge on the spherical surface. (Sketch in 2D i.e. include just the projection of the sphere on the x-y plane.) (c) How many of your drawn lines enter the spherical surface? (d) How many lines leave...
A spherical metal (conductor) has a spherical cavity in side. There is a single point charge Q at the cavity center. The total charge on the meta is 0 (a) Describe how the charge is distributed on the E=? sphere. Would the surface charge density be u form at each surface? (b) Draw the electric field lines. c) Find the electric field for a point outside the metal. Express it in terms of r, the distance of the point in...
Question 1 (compulsory): The following set of charges is given in free space Charge σ,--40 nC/m Number and type of charge #1 , charged spherical shell of radius Ri-10 cm carrying uniform surface charge density σ #2, charged spherical shell of radius R2-5 cm carrying uniform surface charge density Ơ Location (0, 0, 0) m (position of the centre of the sphere) (0, 0, 0) m (position of the centre of the sphere σ,-160 nC/m2 The positions of the spheres'...
If a charge is located at the center of a spherical volume and
the electric flux through the surface of the sphere is...
If a charge is located at the center of a spherical volume and the electric flux through the surface of the sphere is phi, what would be the flux through the surface if the radius of the sphere were tripled?
