A beam of light in air makes an angle of 60º with the surface (not the...

Question

Question

A beam of light in air makes an angle of 60º with the surface (not the normal) of a glass plate having a refractive index of 1.5.

(a) What is the incident angle theta a

(b) What is the reflective angle theta r

(c) What is the refracted angle ?

science physics

Answer 1

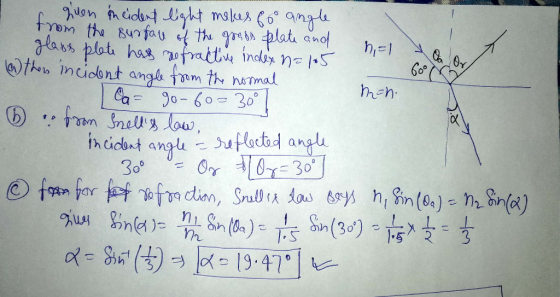

Answer #1

Answer 2
