A double-pipe, parallel-flow heat exchanger uses oil (cp = 1.88 kJ/kg °C) at an initial temperature...

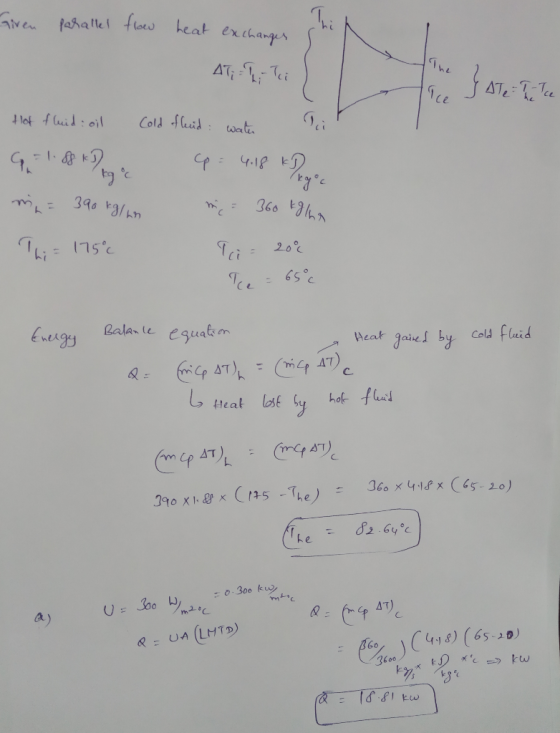

A double-pipe, parallel-flow heat exchanger uses oil (cp = 1.88 kJ/kg °C) at an initial temperature of 175 °C to heat water, flowing at 360 kg/hr, from 20 °C to 65 °C. The oil flow rate is 390 kg/hr.

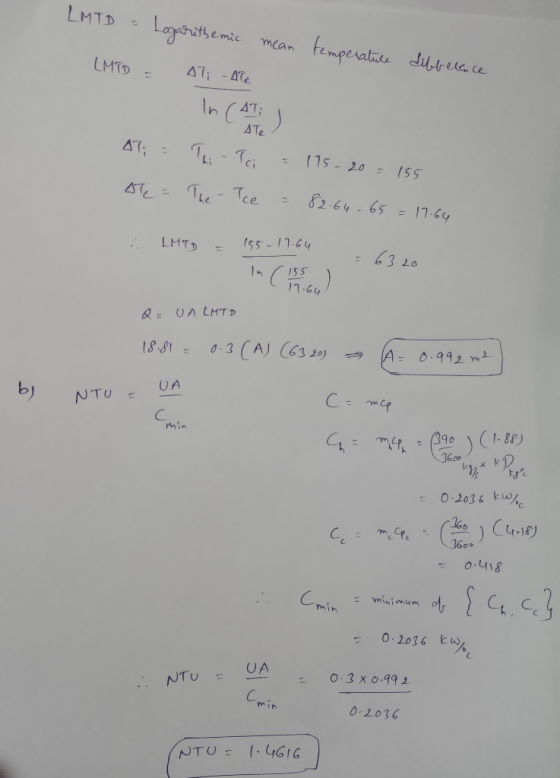

(a) What heat exchanger area is required for an overall heat transfer coefficient of 300 W/m2 °C?
(b) Determine the number of transfer units (NTU).

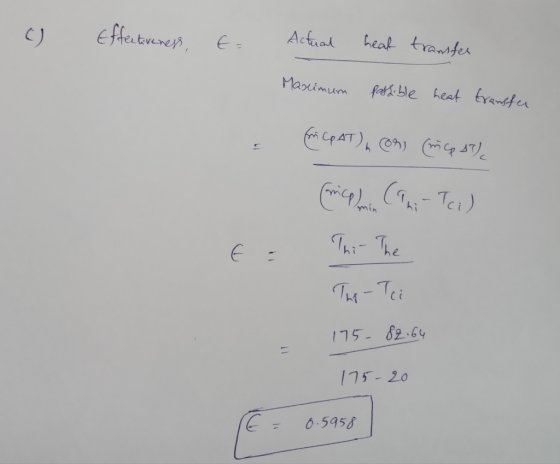

(c) Calculate the effectiveness of the heat exchanger.
Homework Answers
Add Answer to:
A double-pipe, parallel-flow heat exchanger uses oil (cp = 1.88
kJ/kg °C) at an initial temperature...
A concentric-pipe parallel-flow heat exchanger is to heat water (cp = 4.18 kJ/kg.K) from 20°C to...
A concentric-pipe parallel-flow heat exchanger is to heat water (cp = 4.18 kJ/kg.K) from 20°C to 80°C at a rate of 1.2 kg/s. The heating is to be accomplished by geothermal water (Cp =4.31 kJ/kg.K) available at 160°C at a mass flow rate of 2.0 kg/s. The inner pipe is thin-walled and has a diameter of 1.5 cm. If the overall heat transfer coefficient of the heat exchanger is 640 W/m2.K, determine the length of the pipe required to achieve...
Cold water (Cp = 4180 J/kg · °C) leading to a shower enters a thin-walled double-pipe...
Cold water (Cp = 4180 J/kg · °C) leading to a shower enters a thin-walled double-pipe counter-flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg · °C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2 · °C. determine the rate of heat transfer and the heat transfer surface area of the heat exchanger using the...
A thin-walled double-pipe counter-flow heat exchanger is to be used to cool oil (cp-2200 /kg K)...
A thin-walled double-pipe counter-flow heat exchanger is to be used to cool oil (cp-2200 /kg K) from 150 C to 40°C at a rate of 2 kg/s by water (c 4180J/kg.K) that enters at 22°C at a rate of 1.5 kg/s. The diameter of the tube is 2.5 cm, O and its length is 6 m. Let the water inlet temperature vary from 5°C to 25°C. Identify the graph that depicts the overall heat transfer coefficient as a function of...
P11-104. Cold water (Cp = 4180 J/kg-K) leading to a shower enters a thin-walled double-pipe counterflow...
P11-104. Cold water (Cp = 4180 J/kg-K) leading to a shower enters a thin-walled double-pipe counterflow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (cp=4190 J/kg K) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2.K, determine the rate of heat transfer and the heat surface area of the heat exchanger using the effectiveness-NTU method.
2) Hot air enters a heat exchanger at 350°C and exits at 153°C. The heat extracted...
2) Hot air enters a heat exchanger at 350°C and exits at 153°C. The heat extracted is used to boil 0.277 kg/s of 100°C water (from saturated liquid to saturated steam). The heat exchanger is a single-shell shell-and-tube heat exchanger with two tube passes. The overall heat transfer coefficient for the hot side is 240 W/(m2). Assume a constant specific heat for air of cp = 1.005 kJ/(kg°C). The pressure of the hot air and the boiling water is P...
Hot air enters a heat exchanger at 350°C and exits at (149°C. The heat extracted is...
Hot air enters a heat exchanger at 350°C and exits at (149°C. The heat extracted is used to boil (0.263) kg/s of 100°C water (from saturated liquid to saturated steam). The heat exchanger is a single-shell shell-and-tube heat exchanger with two tube passes. The overall heat transfer coefficient for the hot side is 240 W/(m2°C). Assume a constant specific heat for air of Cp = 1.005 kJ/(kgC). The pressure of the hot air and the boiling water is P =...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C)...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C) leading to a shower enters a thin-walled double-pipe counter flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg. "C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2. C, determine the rate of heat transfer and the heat transfer surface...
In a counter flow double pipe heat exchanger water is heated from 25^0C to 75^0C by...
In a counter flow double pipe heat exchanger water is heated from 25^0C to 75^0C by oil with specific heat of 1.44KJ/KgK and mass flow rate of 0.81 kg/s.The oil is cooled from 240^0C to 150^0C.If the overall heat exchanger coefficient is 470W/m^2 0C.Calculate; 1.The rate flow of heat transfer 2.Sketch temperature distribution diagram 3.The mass flow rate of water 4.The surface area of the heat exchanger
Oil of unknown properties is heated in a shell-and-tube heat exchanger with one shell pass and...
Oil of unknown properties is heated in a shell-and-tube heat exchanger with one shell pass and 20 tube passes. The oil flows through the shell, and hot water flows inside the single copper tube that has an inner diameter of 20 mm, a wall thickness of 2 mm, and a length of 3 m per pass. The water enters at 360 K at a mass flow rate of 0.2 kg/s and leaves at 300 K. The inlet and outlet temperatures...
(b) Exhaust gases flowing through a tubular heat exchanger at the rate of 0.3 kg/s are cooled from 400 to 120°C by w...
(b) Exhaust gases flowing through a tubular heat exchanger at the rate of 0.3 kg/s are cooled from 400 to 120°C by water initially at 10°C. The specific heat capacity of the exhaust gases and water may be taken as 1.13 and 4.19 kJ/kg°C, respectively, and the overall heat transfer coefficient from gases to water is 140 W/m2°C. Calculate the surface area required when the water flow rate is 0.4 kg/s for (6 marks) (4 marks) (i) (ii) Parallel flow...
A concentric-pipe parallel-flow heat exchanger is to heat water (cp = 4.18 kJ/kg.K) from 20°C to 80°C at a rate of 1.2 kg/s. The heating is to be accomplished by geothermal water (Cp =4.31 kJ/kg.K) available at 160°C at a mass flow rate of 2.0 kg/s. The inner pipe is thin-walled and has a diameter of 1.5 cm. If the overall heat transfer coefficient of the heat exchanger is 640 W/m2.K, determine the length of the pipe required to achieve...
A thin-walled double-pipe counter-flow heat exchanger is to be used to cool oil (cp-2200 /kg K) from 150 C to 40°C at a rate of 2 kg/s by water (c 4180J/kg.K) that enters at 22°C at a rate of 1.5 kg/s. The diameter of the tube is 2.5 cm, O and its length is 6 m. Let the water inlet temperature vary from 5°C to 25°C. Identify the graph that depicts the overall heat transfer coefficient as a function of...
P11-104. Cold water (Cp = 4180 J/kg-K) leading to a shower enters a thin-walled double-pipe counterflow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (cp=4190 J/kg K) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2.K, determine the rate of heat transfer and the heat surface area of the heat exchanger using the effectiveness-NTU method.
2) Hot air enters a heat exchanger at 350°C and exits at 153°C. The heat extracted is used to boil 0.277 kg/s of 100°C water (from saturated liquid to saturated steam). The heat exchanger is a single-shell shell-and-tube heat exchanger with two tube passes. The overall heat transfer coefficient for the hot side is 240 W/(m2). Assume a constant specific heat for air of cp = 1.005 kJ/(kg°C). The pressure of the hot air and the boiling water is P...
Hot air enters a heat exchanger at 350°C and exits at (149°C. The heat extracted is used to boil (0.263) kg/s of 100°C water (from saturated liquid to saturated steam). The heat exchanger is a single-shell shell-and-tube heat exchanger with two tube passes. The overall heat transfer coefficient for the hot side is 240 W/(m2°C). Assume a constant specific heat for air of Cp = 1.005 kJ/(kgC). The pressure of the hot air and the boiling water is P =...
Part II - Show your work (19 Marks] 16 Cold water (Cp = 4180 J/kg. "C) leading to a shower enters a thin-walled double-pipe counter flow heat exchanger at 15°C at a rate of 0.25 kg/s and is heated to 45°C by hot water (Cp = 4190 J/kg. "C) that enters at 100°C at a rate of 3 kg/s. If the overall heat transfer coefficient is 950 W/m2. C, determine the rate of heat transfer and the heat transfer surface...
Oil of unknown properties is heated in a shell-and-tube heat exchanger with one shell pass and 20 tube passes. The oil flows through the shell, and hot water flows inside the single copper tube that has an inner diameter of 20 mm, a wall thickness of 2 mm, and a length of 3 m per pass. The water enters at 360 K at a mass flow rate of 0.2 kg/s and leaves at 300 K. The inlet and outlet temperatures...
(b) Exhaust gases flowing through a tubular heat exchanger at the rate of 0.3 kg/s are cooled from 400 to 120°C by water initially at 10°C. The specific heat capacity of the exhaust gases and water may be taken as 1.13 and 4.19 kJ/kg°C, respectively, and the overall heat transfer coefficient from gases to water is 140 W/m2°C. Calculate the surface area required when the water flow rate is 0.4 kg/s for (6 marks) (4 marks) (i) (ii) Parallel flow...
