Draw a schematic of the selenization process in CIGS solar cells. Under what process classification does...

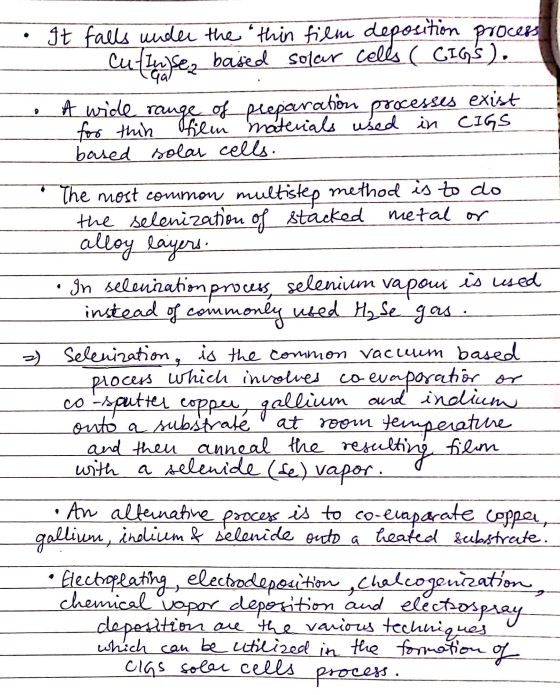

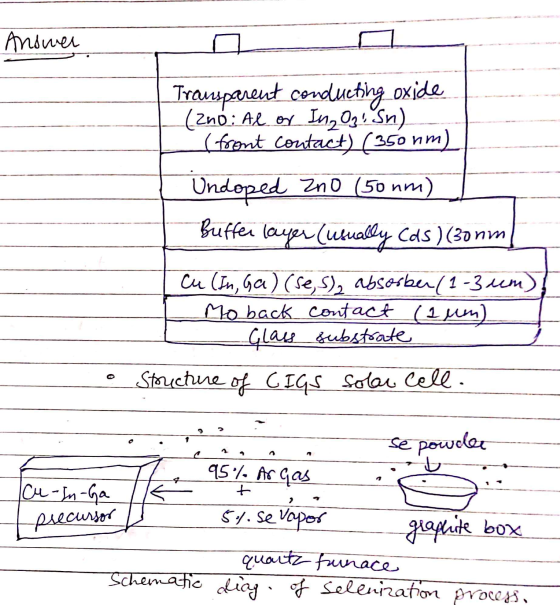

Draw a schematic of the selenization process in CIGS solar cells. Under what process classification does it fall? Is there an alternative to the selenization process? Briefly discuss your options from an operational point of view.
Homework Answers
