Draw lewis structure, complete with formal charges, and show all resonance structures. Indicate any polar covalent...

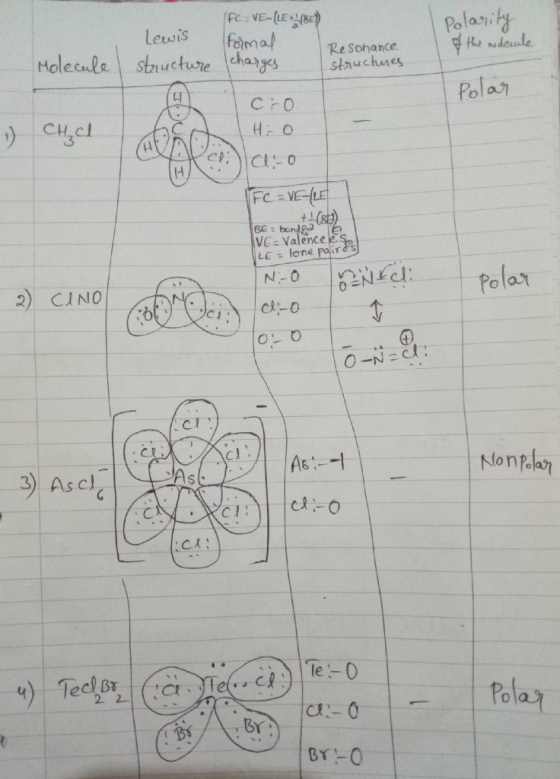

Draw lewis structure, complete with formal charges, and show all resonance structures. Indicate any polar covalent bonds and the overall molecular polarity.

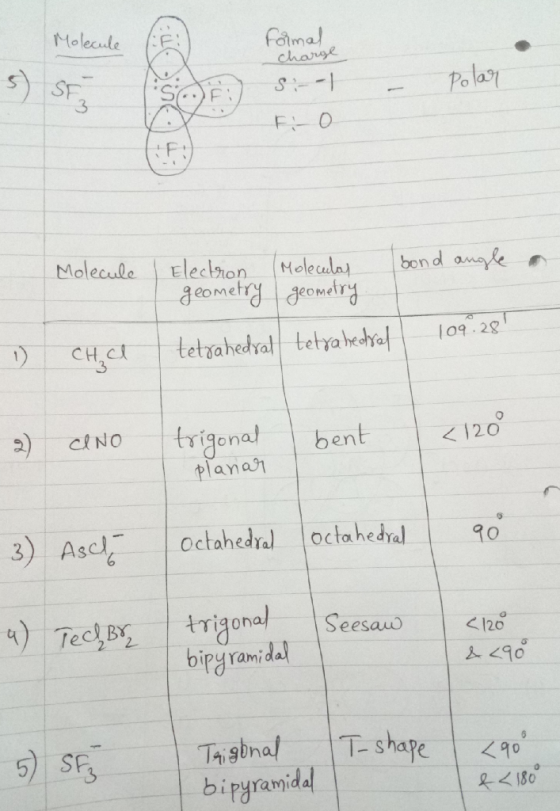

Indicate electron geometry and molecular geometry, bond angle(s),

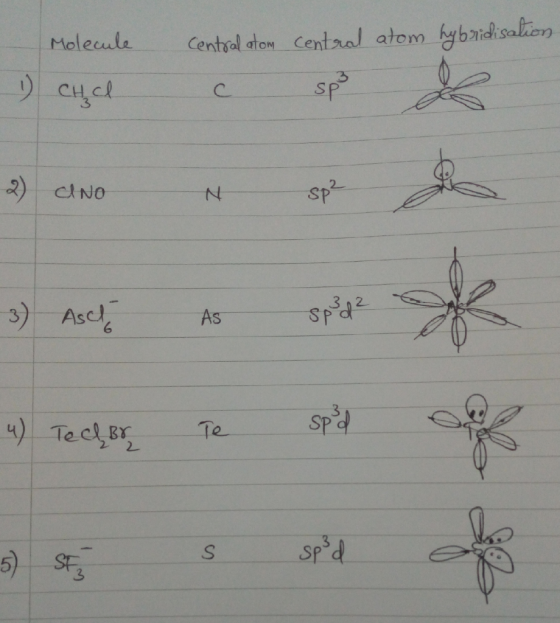

Demonstate hybridization by drawing the valence orbital diagram of the central atom.
Demonstrate hybridization by drawing a valance orbital diagram of the central atom hybridized in the compound for:
1) CH3Cl
2) CINO (Chlorine-Nitrogen-Oxygen)
3) AsCl6-
4) TeCl2Br2
5) SF3-
Homework Answers
