Draw an approximation for the titration curve of glutamic acid which is the non-ionized or protonated...

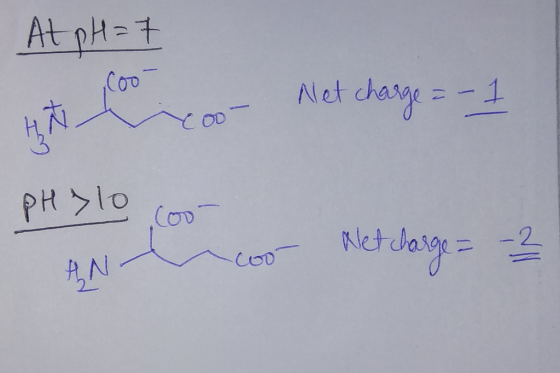

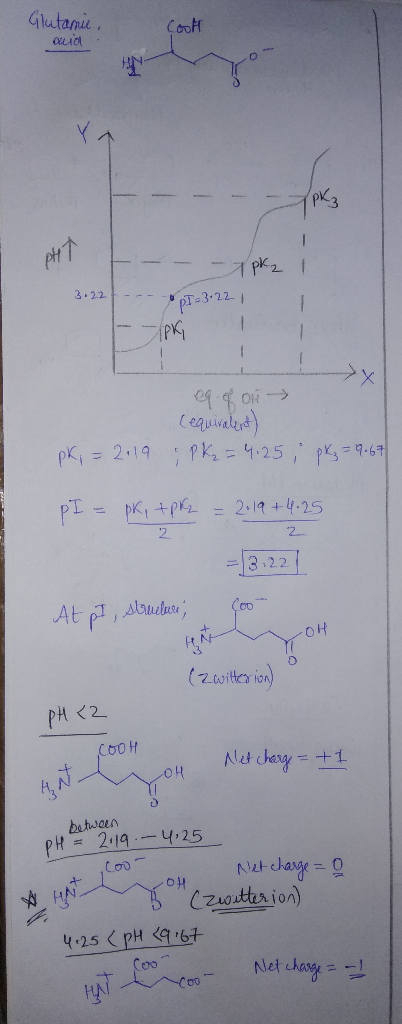

Draw an approximation for the titration curve of glutamic acid which is the non-ionized or protonated form of glutamate. Make sure to label the axis. Clearly label each pKa on the graph (Hint: it may help you to connect the pK to the x and y axis, but not required). What is the Isoelectric point? Define the term isoelectric point, calculate and label the point on the graph. Draw the major species of glutamic acid with appropriate formal charges at the given pHs: pH<2, pH between each pKa,, pH~7, pH>10. Label which of the species is the zwitterion form.
Please follow the instructions for a thumbs up.
Homework Answers
Add Answer to:
Draw an approximation for the titration curve of glutamic acid
which is the non-ionized or protonated...
Draw the titration curve for the titration of 20 mL of a 0.12 M solution of...
Draw the titration curve for the titration of 20 mL of a 0.12 M solution of glutamate (carboxylic acid pKa = 2.19, amino pKa = 9.67, you need to know the pKa for the R group) with 0.10 M sodium hydroxide. Clearly label the axes of your graph (pH vs mL of NaOH added.) Be sure to include pH values and volumes for the following: Start of the titration (no sodium hydroxide added), the pH at the volume that is...
1. (a) Draw the structure of L-glutamic acid and show its one letter and three letter...
1. (a) Draw the structure of L-glutamic acid and show its one letter and three letter code. (1 pt) (b) Show the calculation for its isoelectric point. (HINT: Check the pKa of the R group also.) (2 pt) (c) Draw the forms of glutamic acid at pH 1, 6 and 10. (3 pt) (d) To which electrode would glutamic acid migrate in electrophoresis at pH 7 buffer, the anode (+) or cathode (-)? (1 pt) (e) MSG (monosodium glutamate) is...
please explain, thank you! 25) (5 pts) Draw/label: With volume of titrant on the the titration curve for a monoproti...
please explain, thank you!
25) (5 pts) Draw/label: With volume of titrant on the the titration curve for a monoprotic weak base with (from pH 0-14 vs. volume of titrant added) and clear point in the titration curve. th volume of titrant on the x-axis and pH on the y-axis, DRAW ce with a weak acid titrant? Label your axis s. volume of titrant added and clearly indicate the pka and the equivalence
(Submit completed assignment via Canvas as a pdf for credit. Show all work.) Dipolar on Draw...
(Submit completed assignment via Canvas as a pdf for credit. Show all work.) Dipolar on Draw the structure of L-isoleucine in the zwitterion form, What pH values would you expect this to be the predominant form of this amino acid? 1) 2) If a solution containing isoleucine has a pH of 4 and the concentration of the zwitterion form is 0.02 M, what is the concentration of the fully protonated form? Calculate the isoelectric point of isoleucine (e.g. the pH...
1) Indicate Pka values and PI of arginine 2) Draw all the different ionic forms of...
1) Indicate Pka values and PI of arginine 2) Draw all the different ionic forms of Arginine going from low pH to high pH and circle the dominant form of Arginine at its isoelectric point. 3) Calculate the pI for this amino acid. 4) Sketch an accurate titration curve for a titration of Arginine with NaOH. Label the equivalence points, the half-equivalence points and the pI. 5) Indicate which species of Arginine is present at different points in your titration...
< Question 17 of 27 > The graphs show a titration curve for the amino acid...
< Question 17 of 27 > The graphs show a titration curve for the amino acid histidine. Label the fist curve with the major histidine species at each position. One histidine species will not be used. Label the second curve with the pK, values for the histidine functional groups and the isoelectric point (pl) of histidine. Answer Bank [Hisºj - [His") [ His* 1 - (His 15 20 25 30 IOH equivalents)
6-8 Uruudlit added 5. On your titration curve in 4, clearly label the equivalen buffering is...
6-8
Uruudlit added 5. On your titration curve in 4, clearly label the equivalen buffering is occurring. Use Option to answer questions 6-8 *. clearly label the equivalence point and any region in which o. Draw the Lewis structure of the acid and mark the acidic hydrogen with an ). acid and mark the acidic hydrogen with an asterisk H- 7. Draw a Lewis structure of the conjugate base of the acid. 8. Suppose the acid is neutralized with a...
13. Sketch a titration curve for the titration of a monoprotic weak acid HA with a...
13. Sketch a titration curve for the titration of a monoprotic weak acid HA with a strong base. The titration reaction (neutralization) is: HA + OH + H2O+ A On the curve, clearly label the points that correspond to: i. the equivalence point ii. the region with maximum buffering iii. pH = pka iv. pH depends only on [HA] v. pH depends only on [A-] vi. pH depends only on amount of strong base added.
3. Draw the structure of Serine. (a) label all functional groups (b) identify the stereogenic center and provide al...
3. Draw the structure of Serine. (a) label all functional groups (b) identify the stereogenic center and provide all possible configurations - use the appropriate nomenclature (c) graph the concentrations of fully protonated, zwitterionic and fully deprotonated forms with respect to increasing pH (d) show the titration curve of serine using 2 equivalents of OH. Make sure to label significant points and regions on the graph and indicate the relative concentrations of the various species. (e) calculate the isoelectric point...
5. D-sorbital is found in 'sugar-free' chewing gum. It is formed by reducing D-glucose with NaBH Draw the structure of D-sorbital. s. (4 pts) Classify the following amino acid as polar, n...
5. D-sorbital is found in 'sugar-free' chewing gum. It is formed by reducing D-glucose with NaBH Draw the structure of D-sorbital. s. (4 pts) Classify the following amino acid as polar, non- polar, acidic, or basic: 6 (4 pts) The amino acid threonine (thr) has two chiral carbons. Draw a Fischer projection of the 2S,3S configuration of threonine. キ 7.(11 pts) Draw the tripeptide lys-asp-ser at physiological pH 8. (8 pts) The pK, values for aspartic acid are 2.10, 9.82...
please explain, thank you!
25) (5 pts) Draw/label: With volume of titrant on the the titration curve for a monoprotic weak base with (from pH 0-14 vs. volume of titrant added) and clear point in the titration curve. th volume of titrant on the x-axis and pH on the y-axis, DRAW ce with a weak acid titrant? Label your axis s. volume of titrant added and clearly indicate the pka and the equivalence
(Submit completed assignment via Canvas as a pdf for credit. Show all work.) Dipolar on Draw the structure of L-isoleucine in the zwitterion form, What pH values would you expect this to be the predominant form of this amino acid? 1) 2) If a solution containing isoleucine has a pH of 4 and the concentration of the zwitterion form is 0.02 M, what is the concentration of the fully protonated form? Calculate the isoelectric point of isoleucine (e.g. the pH...
< Question 17 of 27 > The graphs show a titration curve for the amino acid histidine. Label the fist curve with the major histidine species at each position. One histidine species will not be used. Label the second curve with the pK, values for the histidine functional groups and the isoelectric point (pl) of histidine. Answer Bank [Hisºj - [His") [ His* 1 - (His 15 20 25 30 IOH equivalents)
6-8
Uruudlit added 5. On your titration curve in 4, clearly label the equivalen buffering is occurring. Use Option to answer questions 6-8 *. clearly label the equivalence point and any region in which o. Draw the Lewis structure of the acid and mark the acidic hydrogen with an ). acid and mark the acidic hydrogen with an asterisk H- 7. Draw a Lewis structure of the conjugate base of the acid. 8. Suppose the acid is neutralized with a...
13. Sketch a titration curve for the titration of a monoprotic weak acid HA with a strong base. The titration reaction (neutralization) is: HA + OH + H2O+ A On the curve, clearly label the points that correspond to: i. the equivalence point ii. the region with maximum buffering iii. pH = pka iv. pH depends only on [HA] v. pH depends only on [A-] vi. pH depends only on amount of strong base added.
3. Draw the structure of Serine. (a) label all functional groups (b) identify the stereogenic center and provide all possible configurations - use the appropriate nomenclature (c) graph the concentrations of fully protonated, zwitterionic and fully deprotonated forms with respect to increasing pH (d) show the titration curve of serine using 2 equivalents of OH. Make sure to label significant points and regions on the graph and indicate the relative concentrations of the various species. (e) calculate the isoelectric point...
5. D-sorbital is found in 'sugar-free' chewing gum. It is formed by reducing D-glucose with NaBH Draw the structure of D-sorbital. s. (4 pts) Classify the following amino acid as polar, non- polar, acidic, or basic: 6 (4 pts) The amino acid threonine (thr) has two chiral carbons. Draw a Fischer projection of the 2S,3S configuration of threonine. キ 7.(11 pts) Draw the tripeptide lys-asp-ser at physiological pH 8. (8 pts) The pK, values for aspartic acid are 2.10, 9.82...
