an aircraft component is subjected to axial loading. It has a rectangular cross - section with...

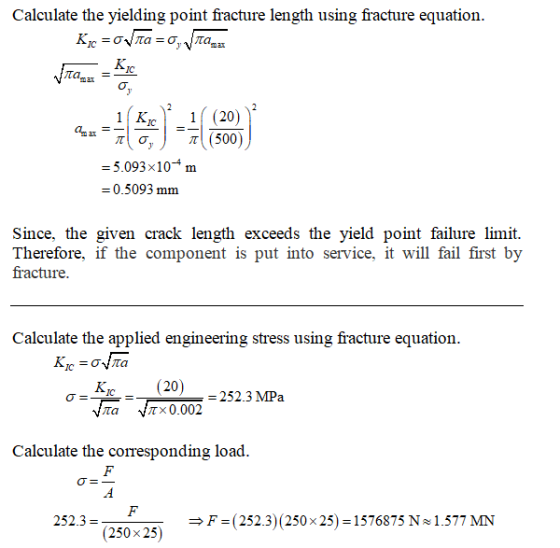

an aircraft component is subjected to axial loading. It has a rectangular cross - section with a width of 250 mm and a thickness of 25 mm. The component is made of aluminum 7075, which has a fracture toughness of 20 MPa - m 1/2 and a yield strength of 500 MPa. During an inspection, a small edge surf ace crack with a length a = 2 mm was detected. If the component is put into service, will it fail first by fracture or strength ? At what load?
Homework Answers
Add Answer to:
an aircraft component is subjected to axial loading. It has a
rectangular cross - section with...
2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture...
2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture toughness of 35 MPa m. It has been determined that fracture results at a stress of 250 MPa when the maximum (or critical) internal crack length is 2.0 mm. For this same component and alloy, will fracture occur at a stress level of 325 MPa when the maximum internal crack length is 1.0 mm? (10 points)
Suppose that a wing component on an aircraft is fabricated from an aluminum alloy that has...
Suppose that a wing component on an aircraft is fabricated from an aluminum alloy that has a plane strain fracture toughness of 25 MPa (22.75 ksi). It has been determined that fracture results at a stress of 117 MPa (16970 psi) when the maximum internal crack length is 9.1 mm (0.3583 in.). For this same component and alloy, compute the stress level at which fracture will occur for a critical internal crack length of 5.5 mm (0.2165 in.).
An aircraft component is fabricated from an Al alloy that has a plane strain fracture toughness...
An aircraft component is fabricated from an Al alloy that has a plane strain fracture toughness of 32 MPa·m1/2. It has been determined that fracture results at a stress of 235 MPa when the maximum internal crack length is 1.8 mm. For the same component and alloy, will fracture occur at a stress level of 310 MPa when the maximum internal crack length is 0.9 mm?
Canvas P O words </> Question 2 10 pts 2. An aircraft component is fabricated from...
Canvas P O words </> Question 2 10 pts 2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture toughness of 35 MPaT. It has been determined that fracture results at a stress of 250 MPa when the maximum (or critical) internal crack length is 2.0 mm. For this same component and alloy, will fracture occur at a stress level of 325 MPa when the maximum internal crack length is 1.0 mm? (10 points)...
Problem 5.1. Axial stress in a reinforced box beamm Figure 5. 12 depicts an aluminum rectangular...
Problem 5.1. Axial stress in a reinforced box beamm Figure 5. 12 depicts an aluminum rectangular box beam of height ћ-0.30 m, width b-0.15 m, flange thickness ta-12 mm, and web thickness tw-5 mm. The beam is reinforced by two layers of unidirectional composite material of thickness te - 4 mm. The section is subjected to an axial load i - 600 kN. The Young's moduli for the aluminum and unidirec- tional composite are Ea - 73 GPa and Ec140...
A PMMA plate with a 25 mm (width) x 6.5 mm (thickness) cross-section has a contained...
A PMMA plate with a 25 mm (width) x 6.5 mm (thickness) cross-section has a contained crack of length 2c = 0.5 mm in the center of the specimen. If the applied load (along the 2 length direction) is 1000 N, calculate the stress intensity factor. If the fracture toughness of PMMA, K1c = 1.15 MPa.m1/2, at what load (in N) does the crack propagate?
Problem 1 A component in the shape of a large sheet is to be fabricated from...
Problem 1 A component in the shape of a large sheet is to be fabricated from 4340 steel, which has a fracture toughness Kc 989 MPa-m's and a tensile yield,strength of 860 MPa. Ihe sheets are inspected for crack flaws after fabrication, but the inspection device cannot detect flaws smaller than 5 mm. The part is too heavy as designed. An engineer has suggested that the thickness be reduced and the material be heat-treated to increase its tensile strength to...
A plate of an aluminum alloy with a center crack is cycled between 48.1 kN and 92.2 kN with crack growth data as given in the table below. The plate is of a rectangular cross section with a width of 1...
A plate of an aluminum alloy with a center crack is cycled
between 48.1 kN and 92.2 kN with crack growth data as given in the
table below. The plate is of a rectangular cross section with a
width of 152.4 mm and a thickness of 2.29 mm
A plate of an aluminum alloy with a center crack is cycled between 48.1 kN and 92.2 kN with crack growth data as given in the table below. The plate is of...
The beam shown below has a rectangular cross-section and is subjected to the loading shown. Determine...
The beam shown below has a rectangular cross-section and is subjected to the loading shown. Determine the stresses at point B caused by the applied loads 3) 425 lb 1 in 375 lb 10 in 1.5 in. 1.5 in
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture toughness of 35 MPa m. It has been determined that fracture results at a stress of 250 MPa when the maximum (or critical) internal crack length is 2.0 mm. For this same component and alloy, will fracture occur at a stress level of 325 MPa when the maximum internal crack length is 1.0 mm? (10 points)
Canvas P O words </> Question 2 10 pts 2. An aircraft component is fabricated from an aluminum alloy that has a plane strain fracture toughness of 35 MPaT. It has been determined that fracture results at a stress of 250 MPa when the maximum (or critical) internal crack length is 2.0 mm. For this same component and alloy, will fracture occur at a stress level of 325 MPa when the maximum internal crack length is 1.0 mm? (10 points)...
Problem 5.1. Axial stress in a reinforced box beamm Figure 5. 12 depicts an aluminum rectangular box beam of height ћ-0.30 m, width b-0.15 m, flange thickness ta-12 mm, and web thickness tw-5 mm. The beam is reinforced by two layers of unidirectional composite material of thickness te - 4 mm. The section is subjected to an axial load i - 600 kN. The Young's moduli for the aluminum and unidirec- tional composite are Ea - 73 GPa and Ec140...
Problem 1 A component in the shape of a large sheet is to be fabricated from 4340 steel, which has a fracture toughness Kc 989 MPa-m's and a tensile yield,strength of 860 MPa. Ihe sheets are inspected for crack flaws after fabrication, but the inspection device cannot detect flaws smaller than 5 mm. The part is too heavy as designed. An engineer has suggested that the thickness be reduced and the material be heat-treated to increase its tensile strength to...
A plate of an aluminum alloy with a center crack is cycled
between 48.1 kN and 92.2 kN with crack growth data as given in the
table below. The plate is of a rectangular cross section with a
width of 152.4 mm and a thickness of 2.29 mm
A plate of an aluminum alloy with a center crack is cycled between 48.1 kN and 92.2 kN with crack growth data as given in the table below. The plate is of...
The beam shown below has a rectangular cross-section and is subjected to the loading shown. Determine the stresses at point B caused by the applied loads 3) 425 lb 1 in 375 lb 10 in 1.5 in. 1.5 in
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
