5. A. Draw a class diagram showing possible inheritance relationships among classes Person, Employee, and Manager....

5. A. Draw a class diagram showing possible inheritance relationships among classes Person, Employee, and Manager. B. Draw a class diagram showing possible inheritance relationships among classes Person, Student, Professor, and Assistant

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

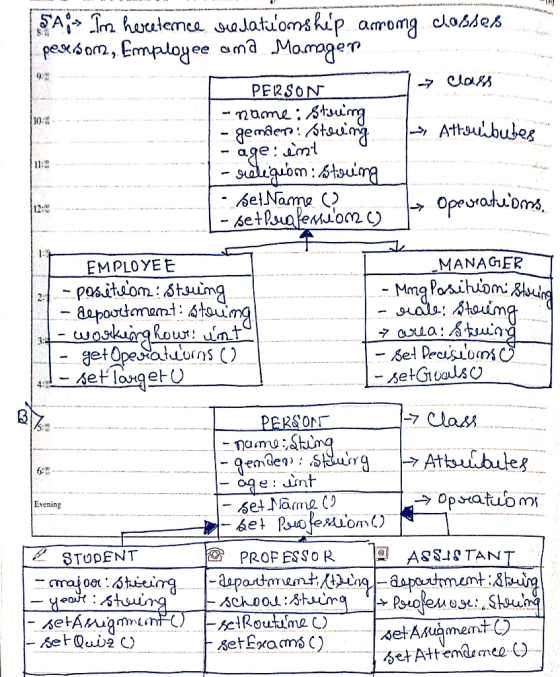

Please find the UML diagram below with mentioned class and thier attributes and operations to show inheritance among all the subsequent classes. Feel free to drop in a comment if you don't understand my handwriting anywhere. :)
