A 6.0 cm tall object is located in front of a diverging lens with a power...

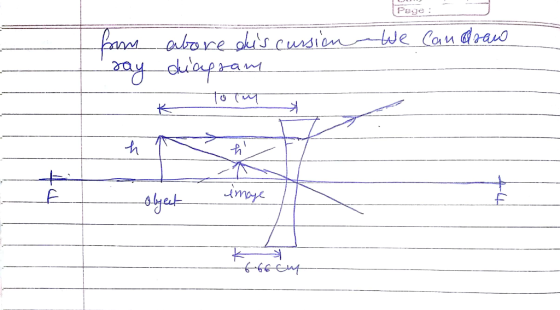

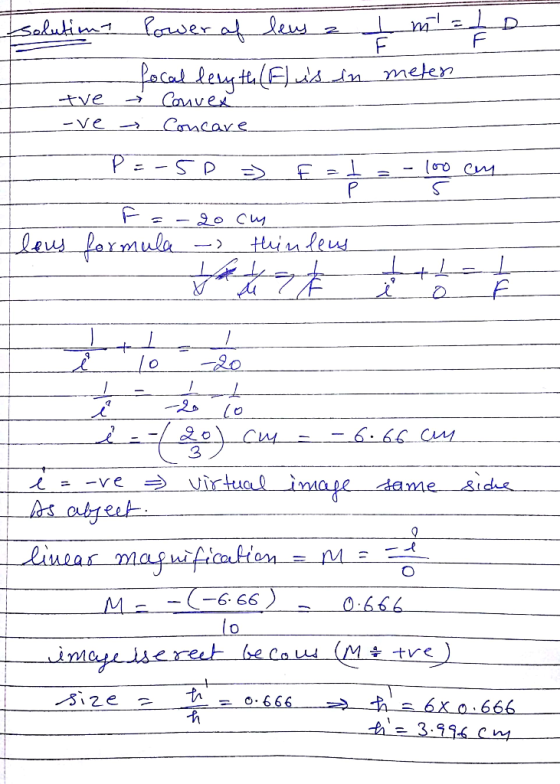

A 6.0 cm tall object is located in front of a diverging lens with a power of -5.00 diopters. Describe the type, location, and height of the image created. Please include the ray diagrams if the object is located 10 cm from the lens.
Homework Answers
Add Answer to:
A 6.0 cm tall object is located in front of a diverging lens
with a power...
A 10-cm-tall object is located in front of a diverging lens with a power of -5...
A 10-cm-tall object is located in front of a diverging lens with a power of -5 diopters. 7.Calculate the image distance dII if the object is located 50 cm from the lens. Follow the sign convention. 8.Calculate the image height hII if the object is located 50 cm from the lens. Follow the sign convention.
A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a fo...
A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a focal length of 6.0 cm is located 8.0 cm behind the diverging lens. (As viewed from the side, from left to right, the sequence is object - diverging lens - converging lens - observer. Rays then travel from left to right through the system.) (a) Use ray tracing to draw image 1 and image...
A 5 cm tall object is 20 cm in front of a diverging lens with a...
A 5 cm tall object is 20 cm in front of a diverging lens with a focal length of 10 cm. a) What is the location of the image? cm b) What is the height of the image? cm c) The image is:real or virtual d) The image is: inverted or upright
An object 10 cm tall is placed 50 cm in front of a diverging lens with...
An object 10 cm tall is placed 50 cm in front of a diverging lens with a focal length of 10 cm. a. find the image location b. what is the magnifications? c. what is the height of the image?
A 4.0 cm tall object is placed 12.0 cm in front of a diverging lens. When...
A 4.0 cm tall object is placed 12.0 cm in front of a diverging lens. When the image of the object is measured it is found to measure 1.3 cm in height. What is the focal length of the lens? Draw a ray diagram with the object, image and focal points labeled.
A 5-cm-tall object is 7.5 cm in front of a diverging lens that has a 10...
A 5-cm-tall object is 7.5 cm in front of a diverging lens that has a 10 cm focal length. Use ray tracing to find the position and height of the image. To do this accurately, use a ruler and paper with a grid. Determine the image distance and image height by making measurements on your diagram.
A 20 cm tall object is located 70 cm away from a diverging lens that has...
A 20 cm tall object is located 70 cm away from a diverging lens
that has a focal length of 20 cm. Use a scaled ray tracing to
answer parts a-d.
a. Is the image real or virtual?
b. Is the image upright or inverted?
c. How far from the lens is the image?
d. What is the height of the image?
e. Now use the thin lens equation to calculate the image
distance and the magnification equation to determine...
An object is located 40.0 cm from the front side of a divergent lens. A focal point of the lens is located at 20.0 cm from the front side of the lens. (a) Determine the location of the image form...
An object is located 40.0 cm from the front side of a divergent lens. A focal point of the lens is located at 20.0 cm from the front side of the lens. (a) Determine the location of the image formed. (b) Determine the size of the image if the object is 12.0 cm tall. (c) Draw a ray tracing diagram showing the location of the object, image and lens.
An object is located 40.0 cm from the front side of...
An object is 6.0 cm in front of a converging lens with a focal length of 10 cm
An object is 6.0 cm in front of a converging lens with a focal length of 10cm.1. Use ray tracing to determine the location of the image.An object is 32 cm in front of a diverging lens with a focal length of 16 cm.2. Use ray tracing to determine the location of the image.
A 2.0-cm-tall object is 17.5 cm in front of a diverging lens that has a -25...
A 2.0-cm-tall object is 17.5 cm in front of a diverging lens that has a -25 cm focal length. 1. Calculate the image position. 2. Calculate the image height. Type a positive value if the image is upright and a negative value if it is inverted.
A 4.0 cm tall object is 5.0 cm in front of a diverging lens with a focal length of -6.0 cm. A converging lens with a focal length of 6.0 cm is located 8.0 cm behind the diverging lens. (As viewed from the side, from left to right, the sequence is object - diverging lens - converging lens - observer. Rays then travel from left to right through the system.) (a) Use ray tracing to draw image 1 and image...
A 20 cm tall object is located 70 cm away from a diverging lens
that has a focal length of 20 cm. Use a scaled ray tracing to
answer parts a-d.
a. Is the image real or virtual?
b. Is the image upright or inverted?
c. How far from the lens is the image?
d. What is the height of the image?
e. Now use the thin lens equation to calculate the image
distance and the magnification equation to determine...
An object is located 40.0 cm from the front side of a divergent lens. A focal point of the lens is located at 20.0 cm from the front side of the lens. (a) Determine the location of the image formed. (b) Determine the size of the image if the object is 12.0 cm tall. (c) Draw a ray tracing diagram showing the location of the object, image and lens.
An object is located 40.0 cm from the front side of...
